Overview ADCP Data

Overview ADCP Data#

Comparisons between each model and ADCP datasets are shown below, first in Taylor diagrams, then in maps of skill scores where each marker is colored to indicate the skill score of the comparison.

The two models perform similarly to each other with the exception of increased variance in CIOFS Fresh for subtidal variable comparisons. They both generally perform well for tidal time series and only moderately well for subtidal time series.

77MB zipfile of plots and stats files

Map of Stations#

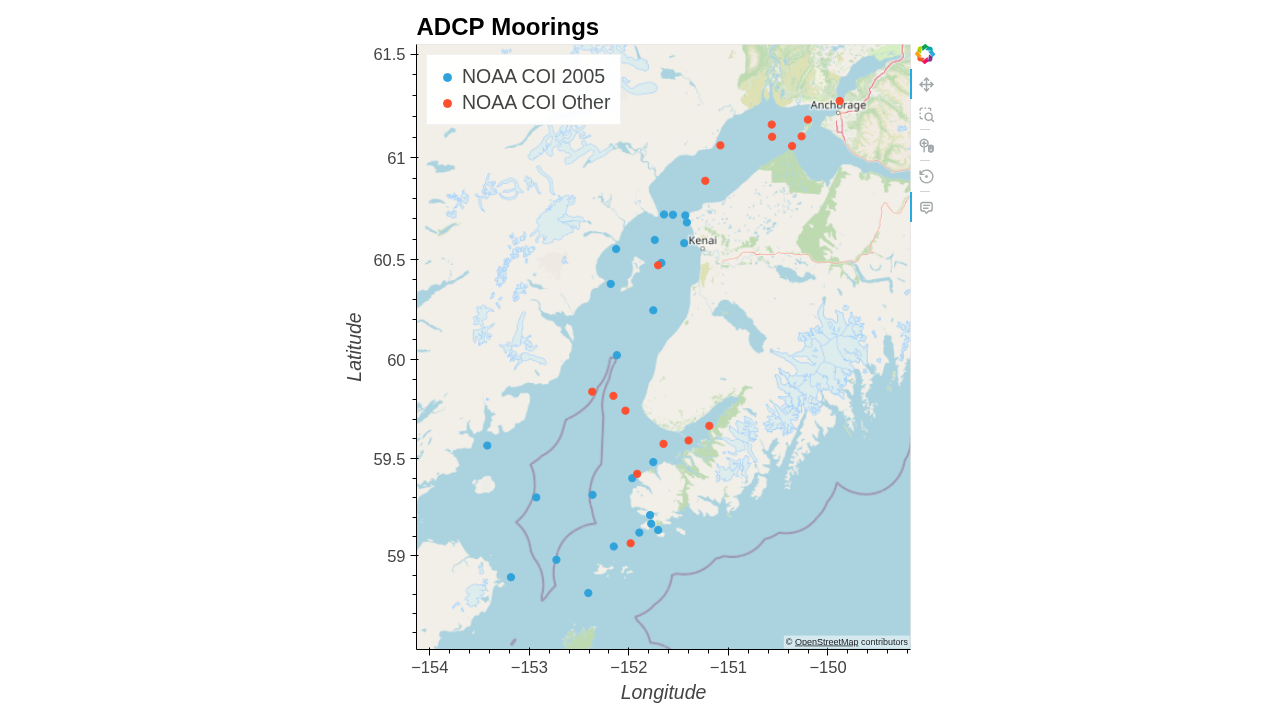

Fig. 120 All ADCP deployments, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_map.png

Fig. 121 All ADCP deployments, by project. (PNG screenshot, available for PDF and for saving image.)#

Taylor Diagrams#

Taylor diagrams summarize the skill of the two models in capturing the ADCP moorings. The data has been grouped by region (Figs. 122, 123, 124) and season (Figs. 125, 126, 127). The results show that CIOFS fresh and CIOFS hindcast perform similarly for tidal results. For the subtidal along-channel velocity component by region, CIOFS Hindcast and CIOFS Fresh have mostly similar correlation coefficients, but CIOFS Fresh has more accurate variance. By season, CIOFS Fresh has more accurate variance again though in the spring both models have too high of variance. For the across-channel subtidal component, the two models again have similar correlation coefficients but CIOFS Fresh has more accurate variance in Upper Cook Inlet; in Kachemak Bay and Central Cook Inlet CIOFS Hindcast is more accurate. When considering subtidal speed, we see that the two models perform similarly to each other. Skill scores are shown in the next plots for each dataset.

../../../_images/adcp_moored_by_region_east.png

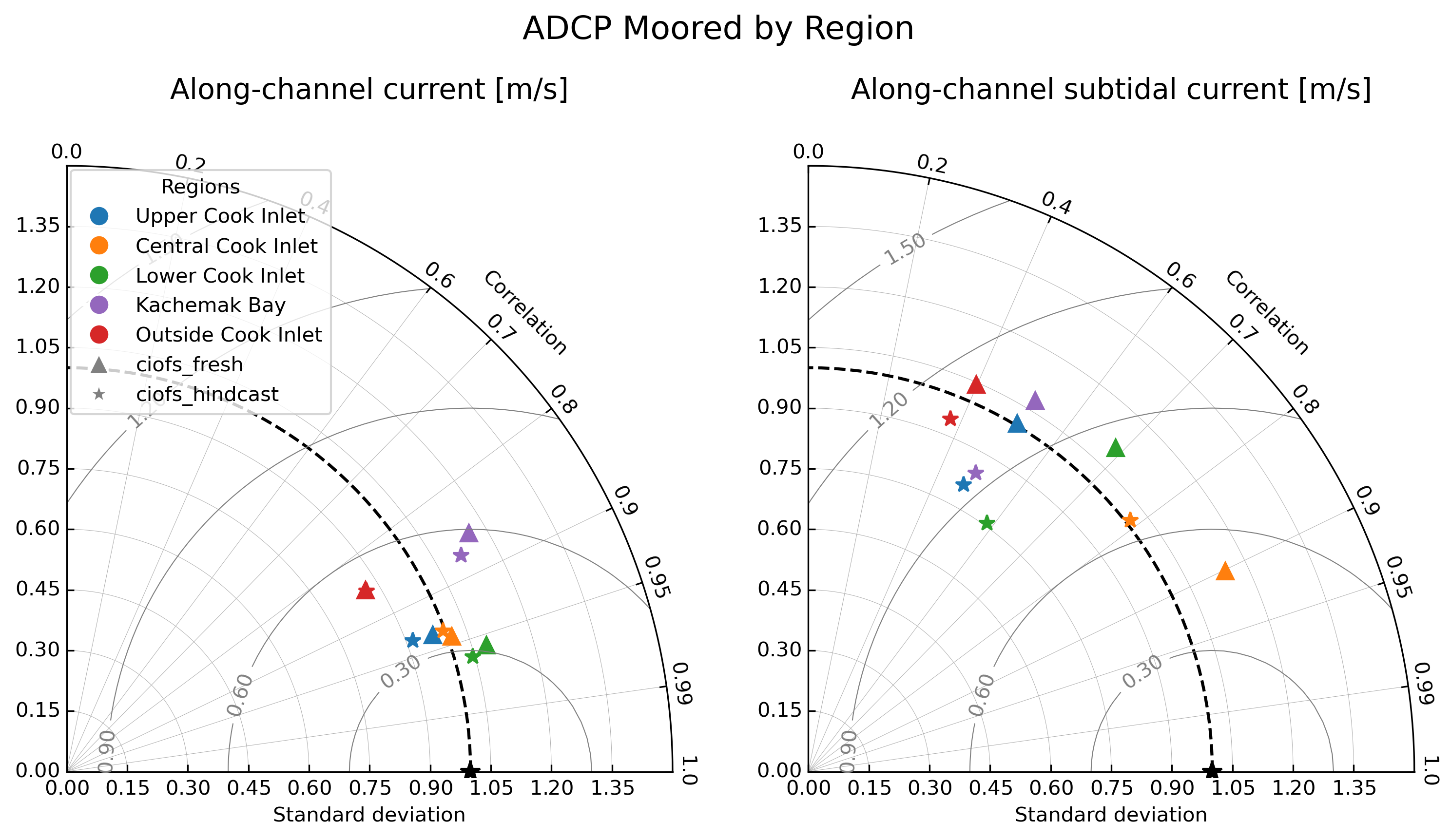

Fig. 122 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the along-channel component of velocity with tides (left) and subtidal (right), grouped by region of Cook Inlet, for moored ADCP datasets.#

../../../_images/adcp_moored_by_region_north.png

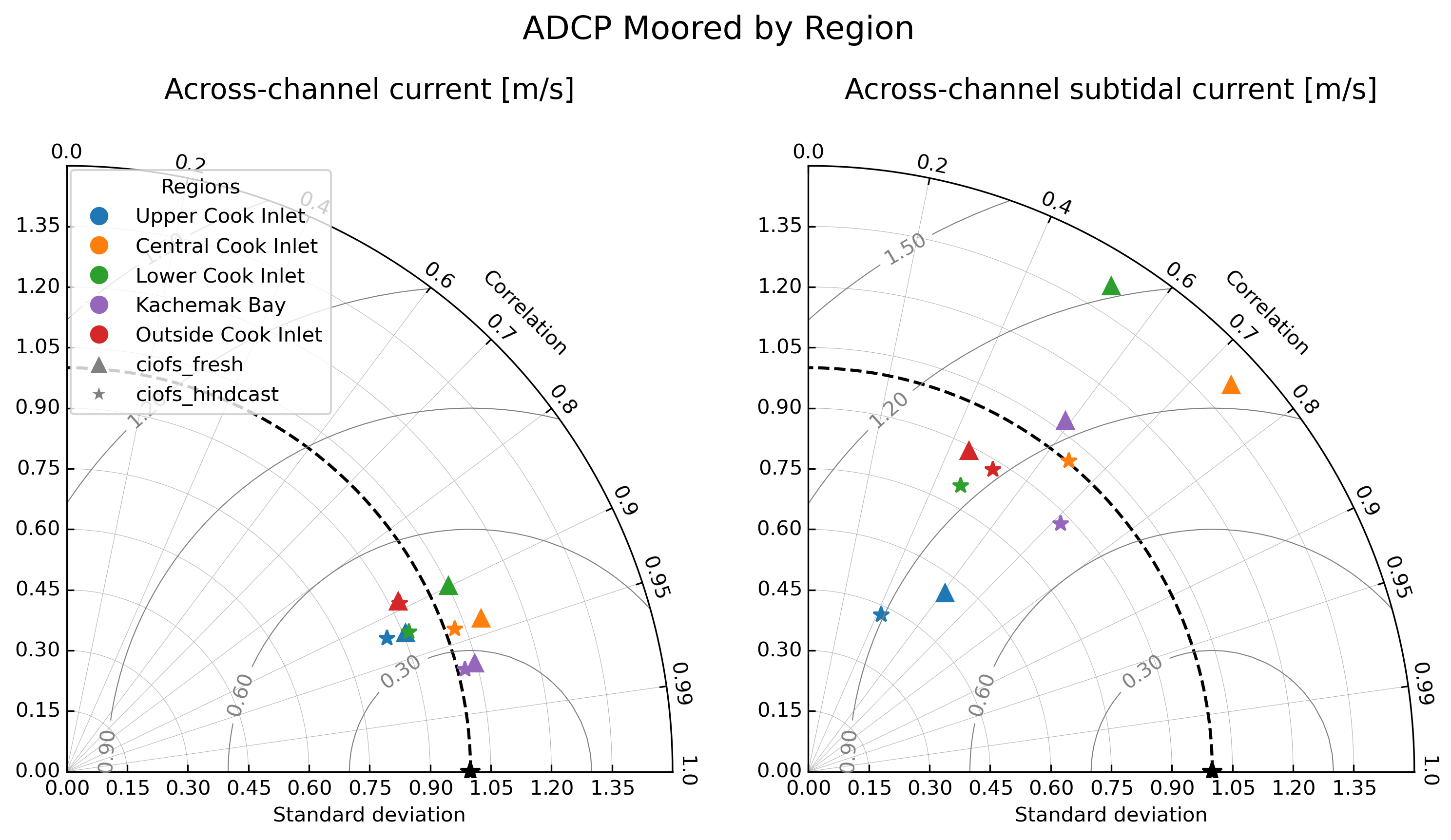

Fig. 123 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the across-channel component of velocity with tides (left) and subtidal (right), grouped by region of Cook Inlet, for moored ADCP datasets.#

../../../_images/adcp_moored_by_region_speed.png

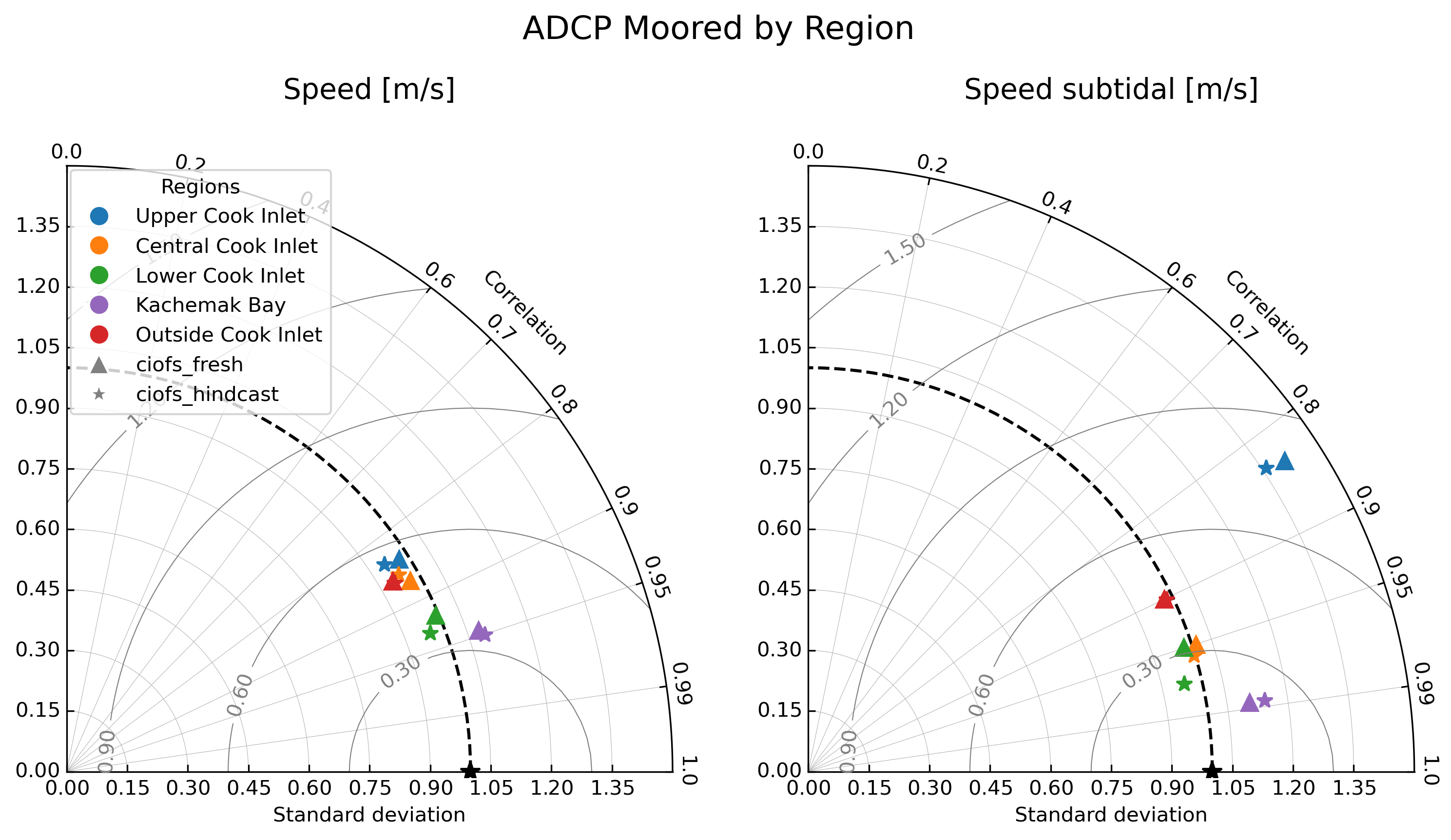

Fig. 124 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the magnitude of velocity with tides (left) and subtidal (right), grouped by region of Cook Inlet, for moored ADCP datasets.#

../../../_images/adcp_moored_by_season_east.png

Fig. 125 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the along-channel component of velocity with tides (left) and subtidal (right), grouped by season, for moored ADCP datasets.#

../../../_images/adcp_moored_by_season_north.png

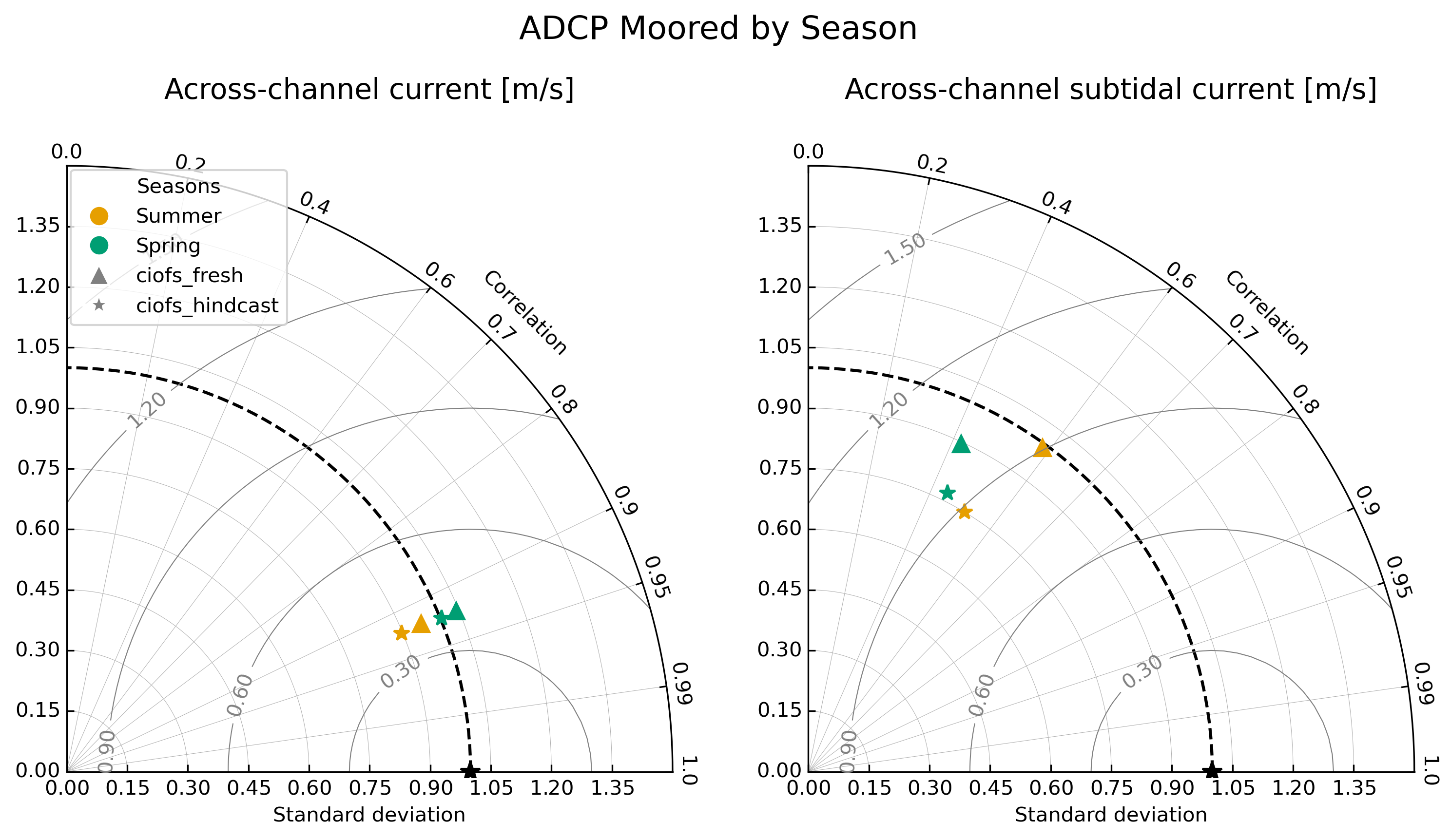

Fig. 126 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the across-channel component of velocity with tides (left) and subtidal (right), grouped by season, for moored ADCP datasets.#

../../../_images/adcp_moored_by_season_speed.png

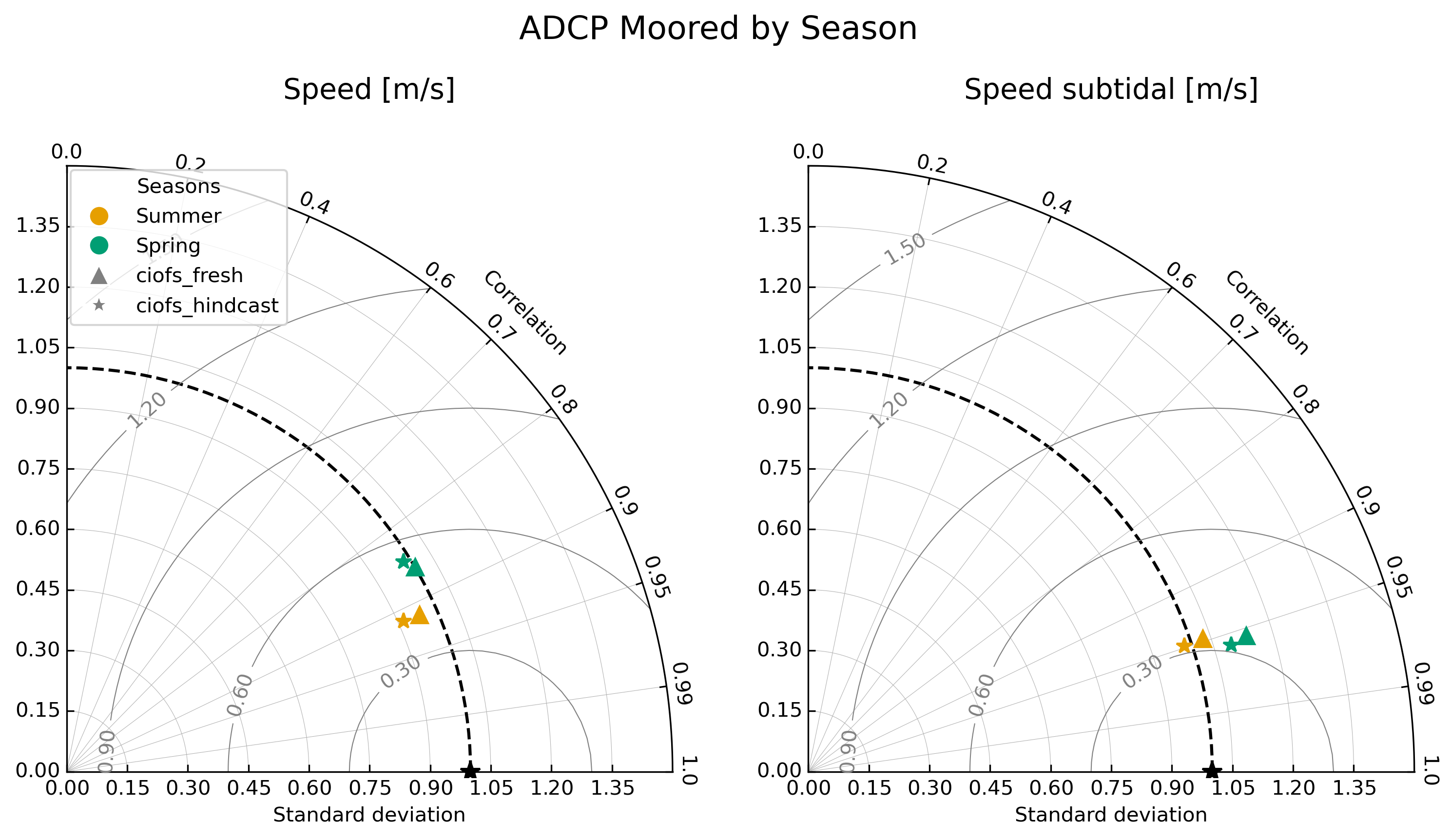

Fig. 127 Taylor Diagram summarizing skill of CIOFS Hindcast (stars) and CIOFS Fresh (triangles) for the magnitude of velocity with tides (left) and subtidal (right), grouped by season, for moored ADCP datasets.#

Tidal#

Horizontal Speed#

Fig. 128 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for horizontal speed, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_tidal_speed_rotate.png

Fig. 129 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for horizontal speed, by project. (PNG screenshot, available for PDF and for saving image.)#

Along-Channel Velocity#

Fig. 130 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for along-channel velocity, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

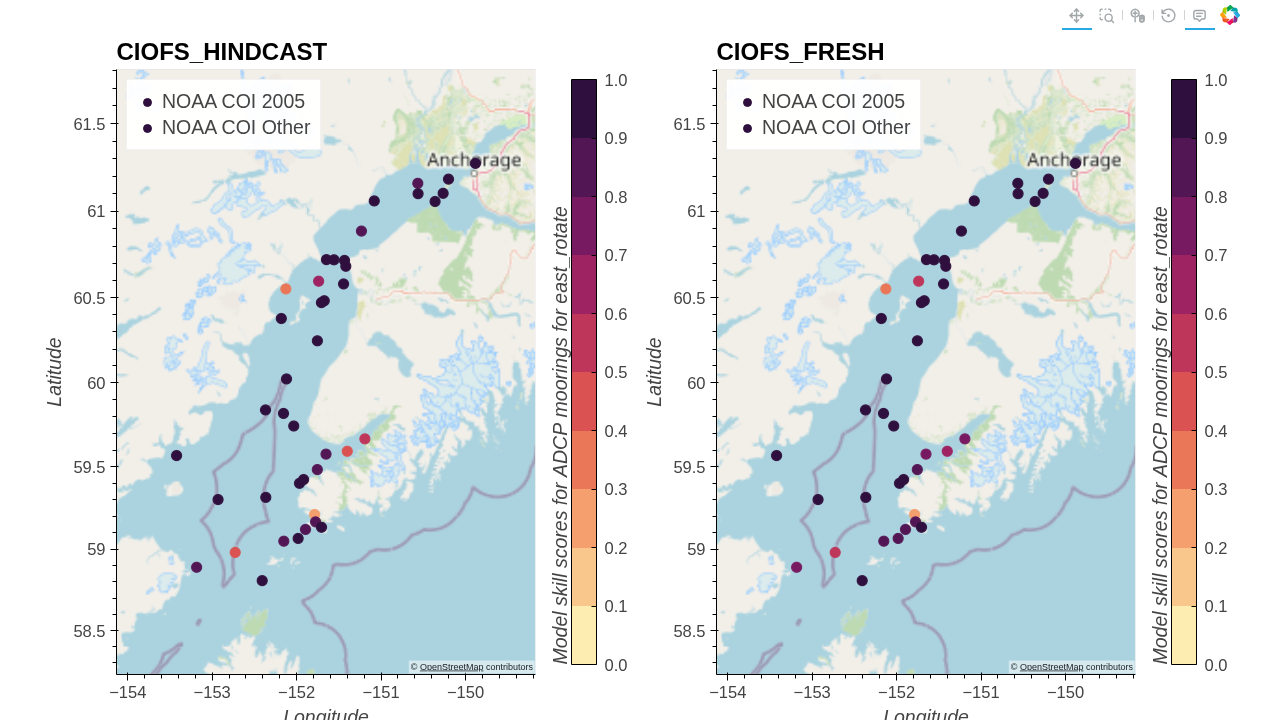

../../../_images/adcp_tidal_east_rotate.png

Fig. 131 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for along-channel velocity, by project. (PNG screenshot, available for PDF and for saving image.)#

Across-Channel Velocity#

Fig. 132 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for across-channel velocity, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_tidal_north_rotate.png

Fig. 133 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for across-channel velocity, by project. (PNG screenshot, available for PDF and for saving image.)#

Subtidal#

Horizontal Speed#

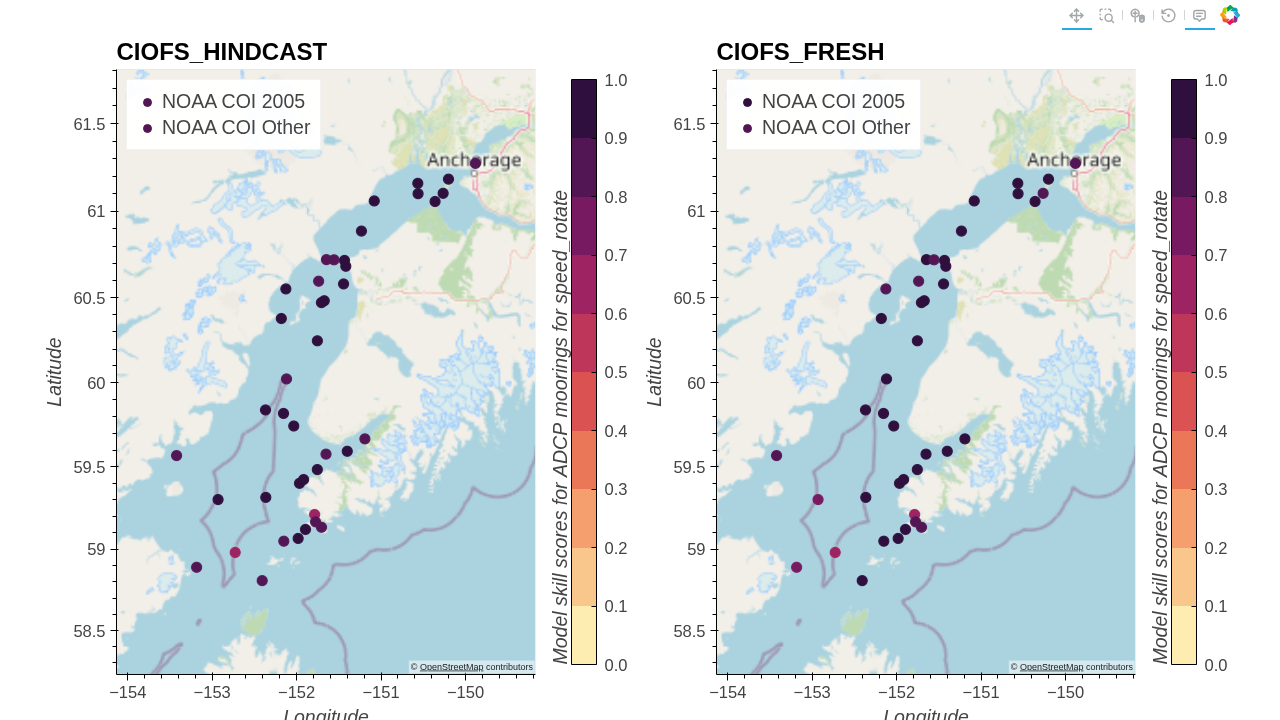

Fig. 134 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal horizontal speed, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_subtidal_speed_rotate.png

Fig. 135 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal horizontal speed, by project. (PNG screenshot, available for PDF and for saving image.)#

Along-Channel Velocity#

Fig. 136 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal along-channel velocity, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_subtidal_east_rotate.png

Fig. 137 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal along-channel velocity, by project. (PNG screenshot, available for PDF and for saving image.)#

Across-Channel Velocity#

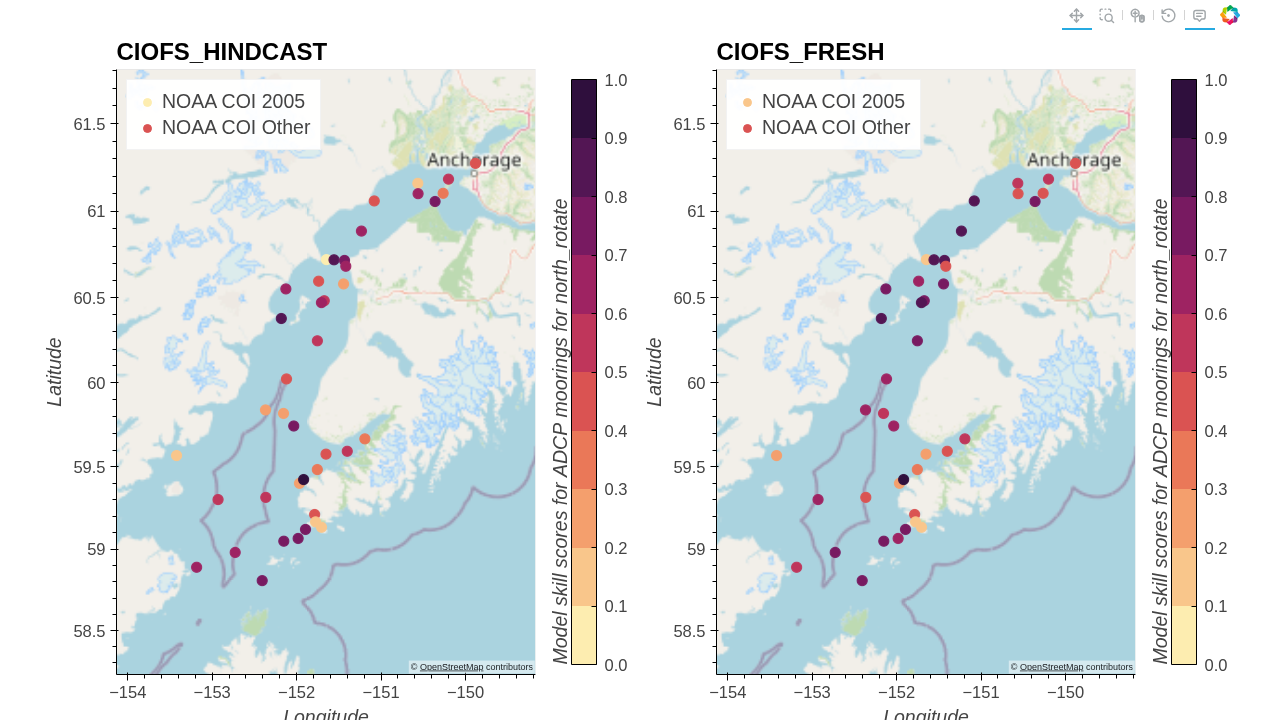

Fig. 138 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal across-channel velocity, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/adcp_subtidal_north_rotate.png

Fig. 139 Skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with ADCP moorings for subtidal across-channel velocity, by project. (PNG screenshot, available for PDF and for saving image.)#
