HF Radar (UAF)

• hfradar

See the full dataset page for more information: page:hfradar

Note that the map shows all datasets from the catalog; it is not limited to the current report time periods.

lower-ci_system-B_2006

M2 Tidal Ellipses

CIOFS_HINDCAST

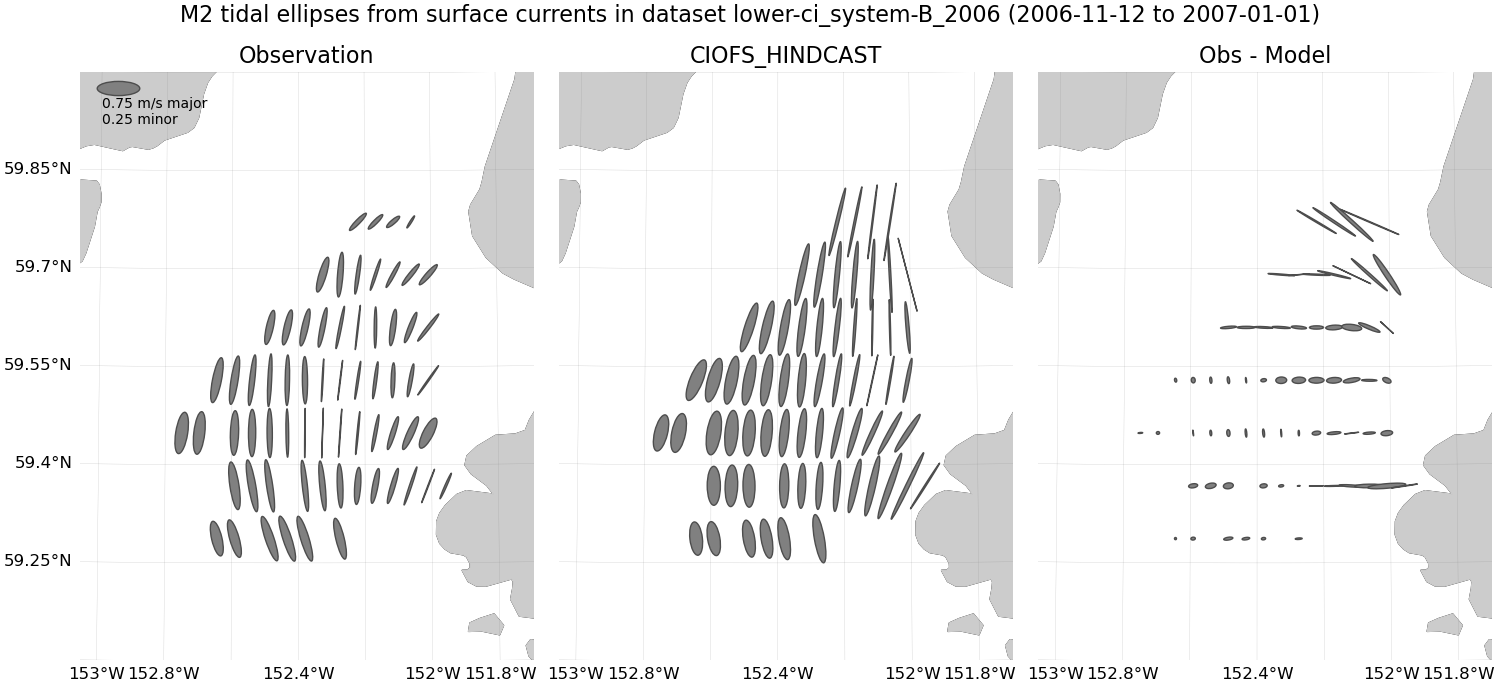

Fig. 100 M2 tidal ellipses from surface currents for CIOFS_HINDCAST and dataset lower-ci_system-B_2006

CIOFS_FRESH

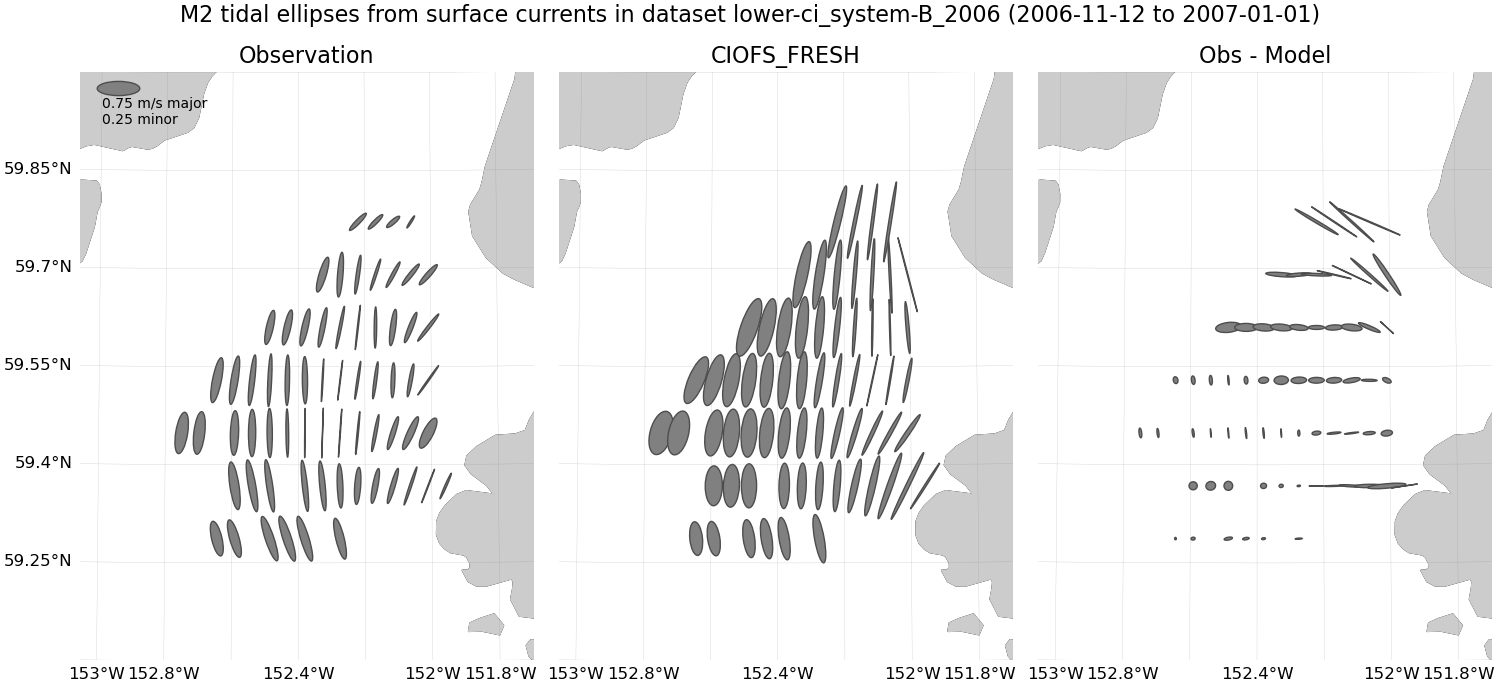

Fig. 101 M2 tidal ellipses from surface currents for CIOFS_FRESH and dataset lower-ci_system-B_2006

K1 Tidal Ellipses

CIOFS_HINDCAST

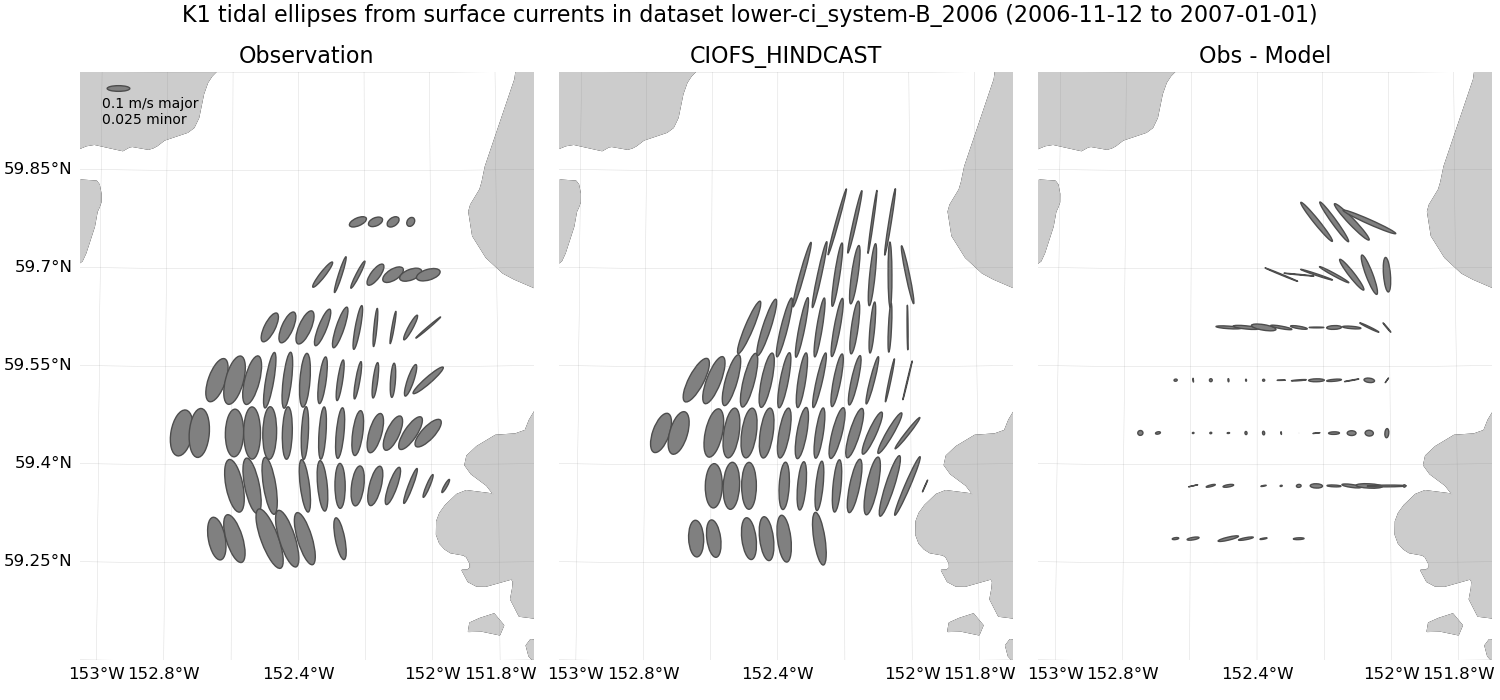

Fig. 102 K1 tidal ellipses from surface currents for CIOFS_HINDCAST and dataset lower-ci_system-B_2006

CIOFS_FRESH

Fig. 103 K1 tidal ellipses from surface currents for CIOFS_FRESH and dataset lower-ci_system-B_2006

upper-ci_system-A_2003

M2 Tidal Ellipses

CIOFS_HINDCAST

Fig. 104 M2 tidal ellipses from surface currents for CIOFS_HINDCAST and dataset upper-ci_system-A_2003

CIOFS_FRESH

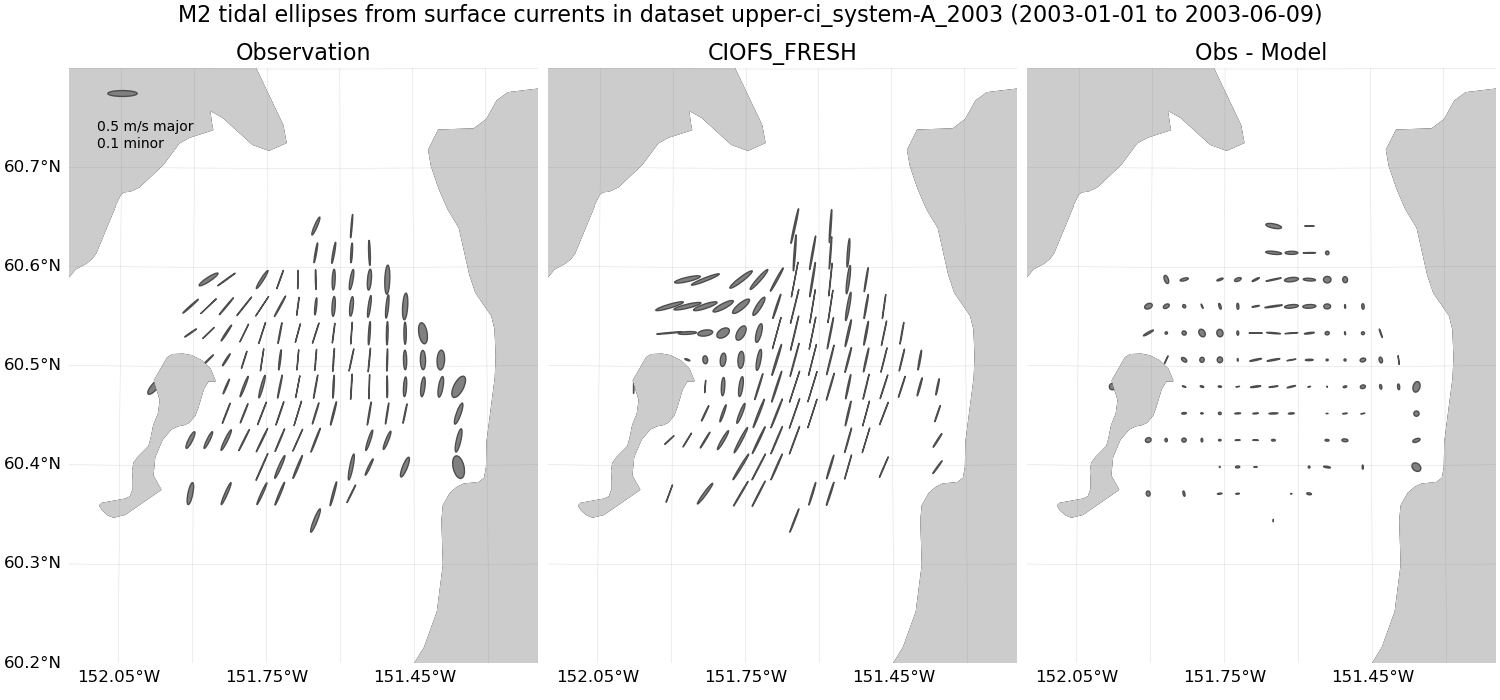

Fig. 105 M2 tidal ellipses from surface currents for CIOFS_FRESH and dataset upper-ci_system-A_2003

K1 Tidal Ellipses

CIOFS_HINDCAST

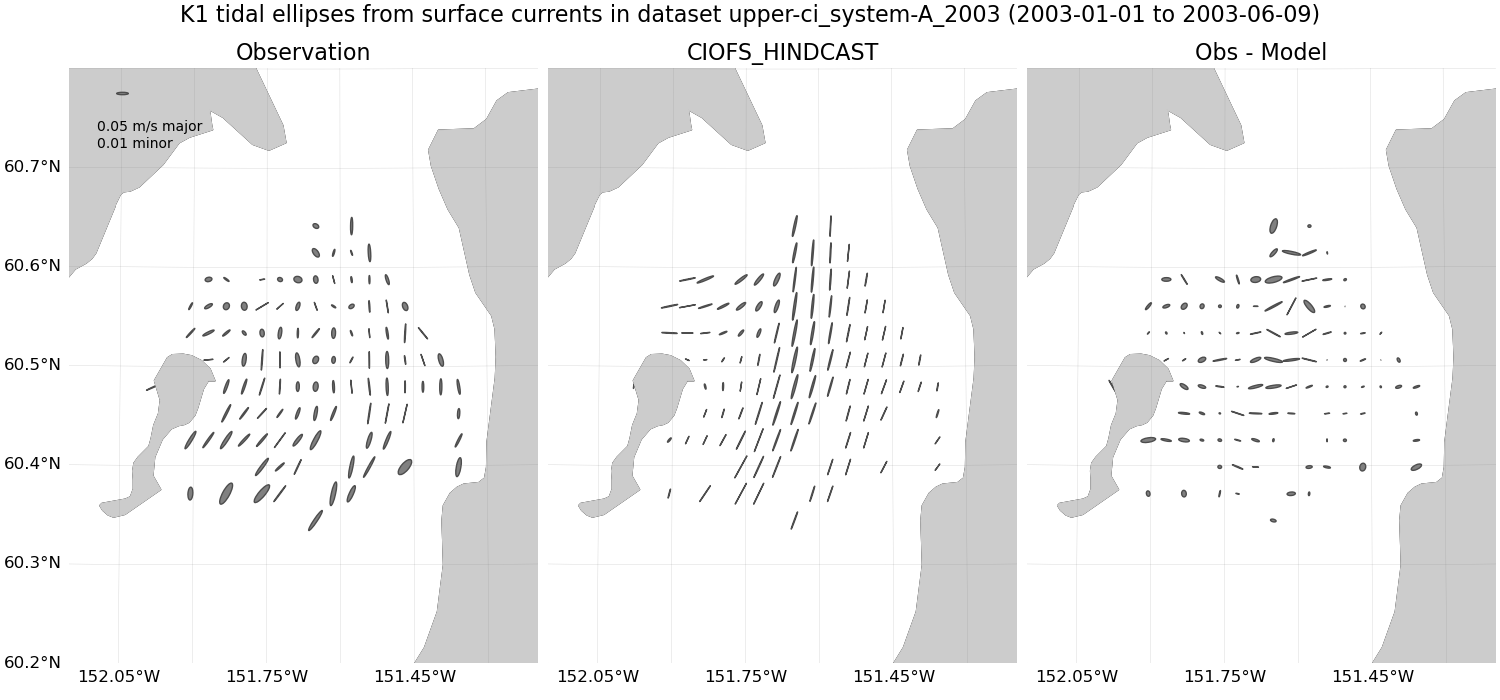

Fig. 106 K1 tidal ellipses from surface currents for CIOFS_HINDCAST and dataset upper-ci_system-A_2003

CIOFS_FRESH

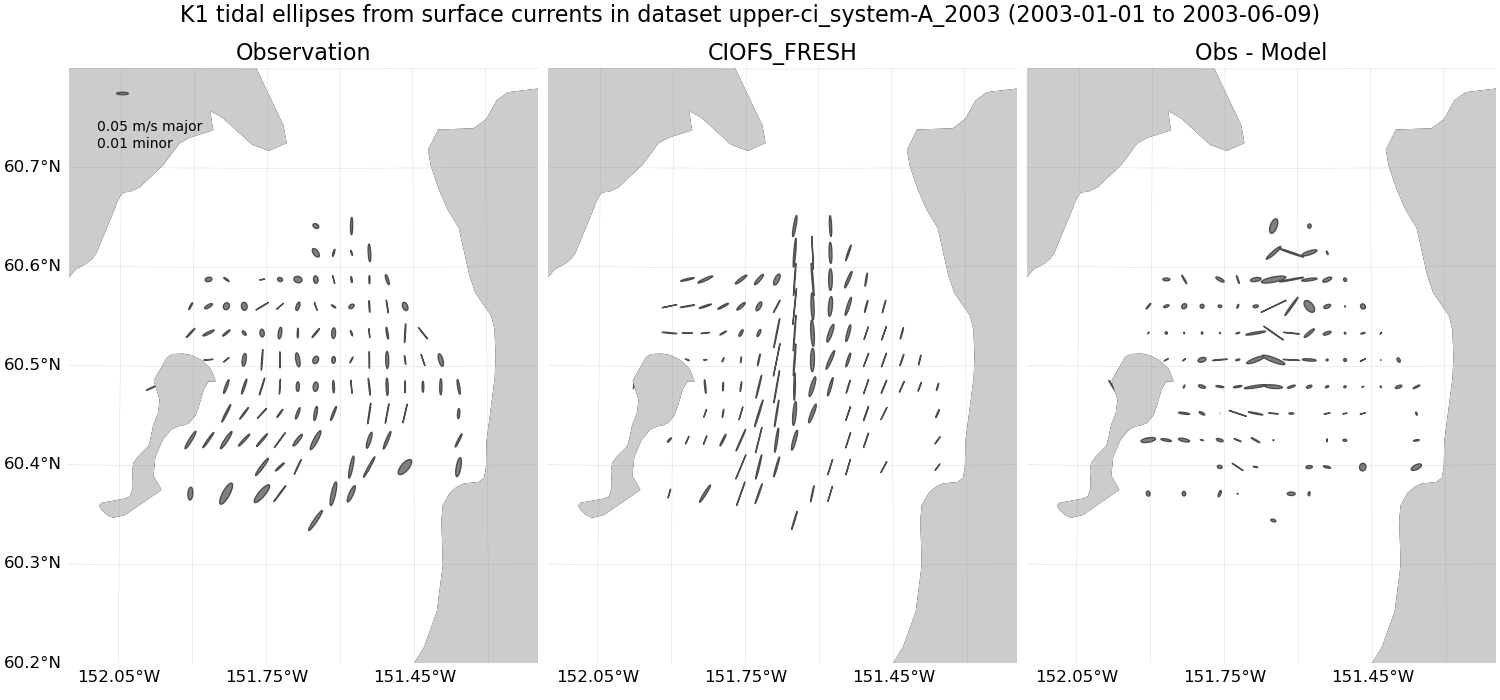

Fig. 107 K1 tidal ellipses from surface currents for CIOFS_FRESH and dataset upper-ci_system-A_2003

lower-ci_system-B_2006-2007

Subtidal Mean

CIOFS_HINDCAST

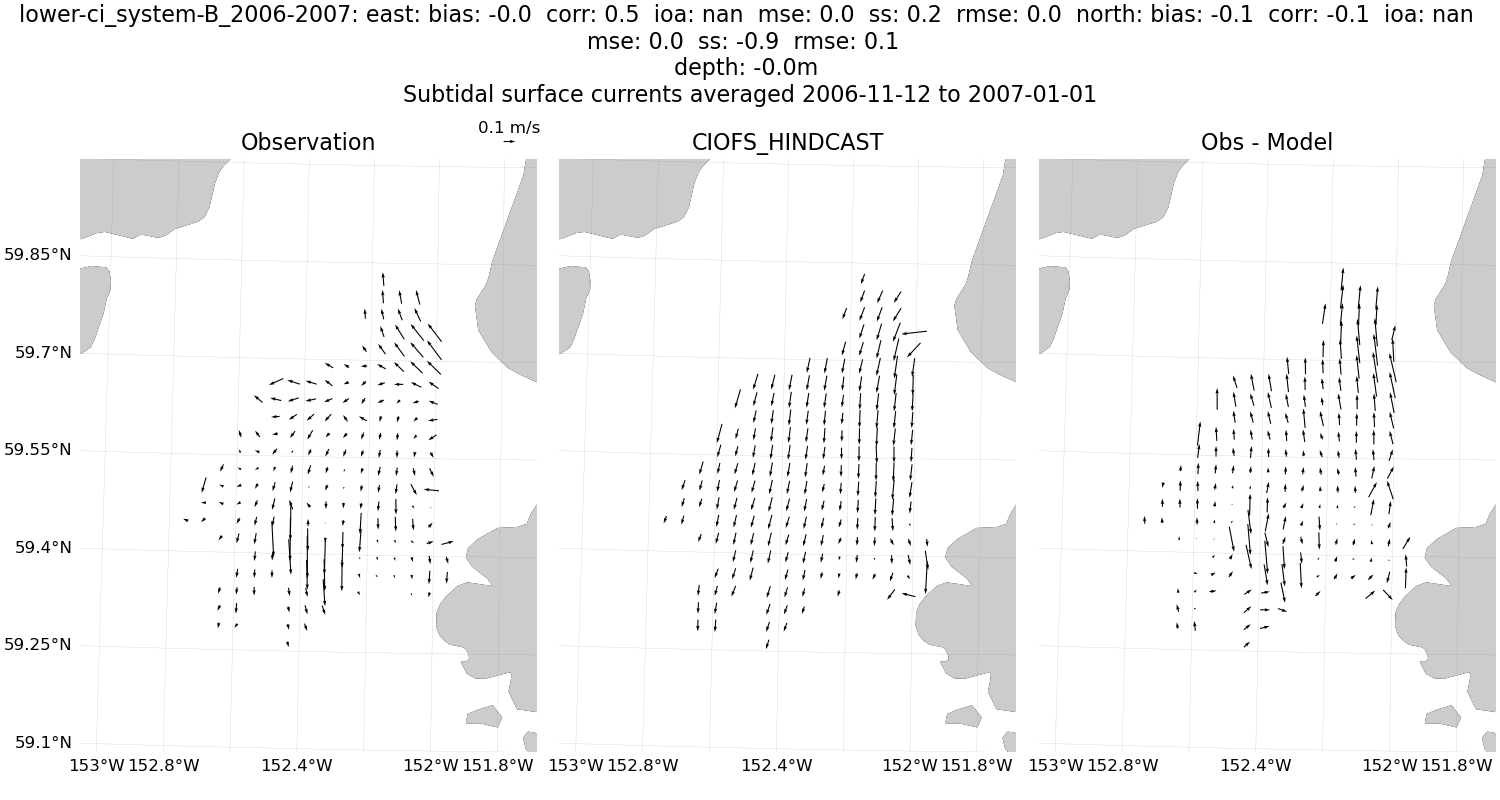

Fig. 108 Subtidal mean from surface currents for CIOFS_HINDCAST and dataset lower-ci_system-B_2006-2007

CIOFS_FRESH

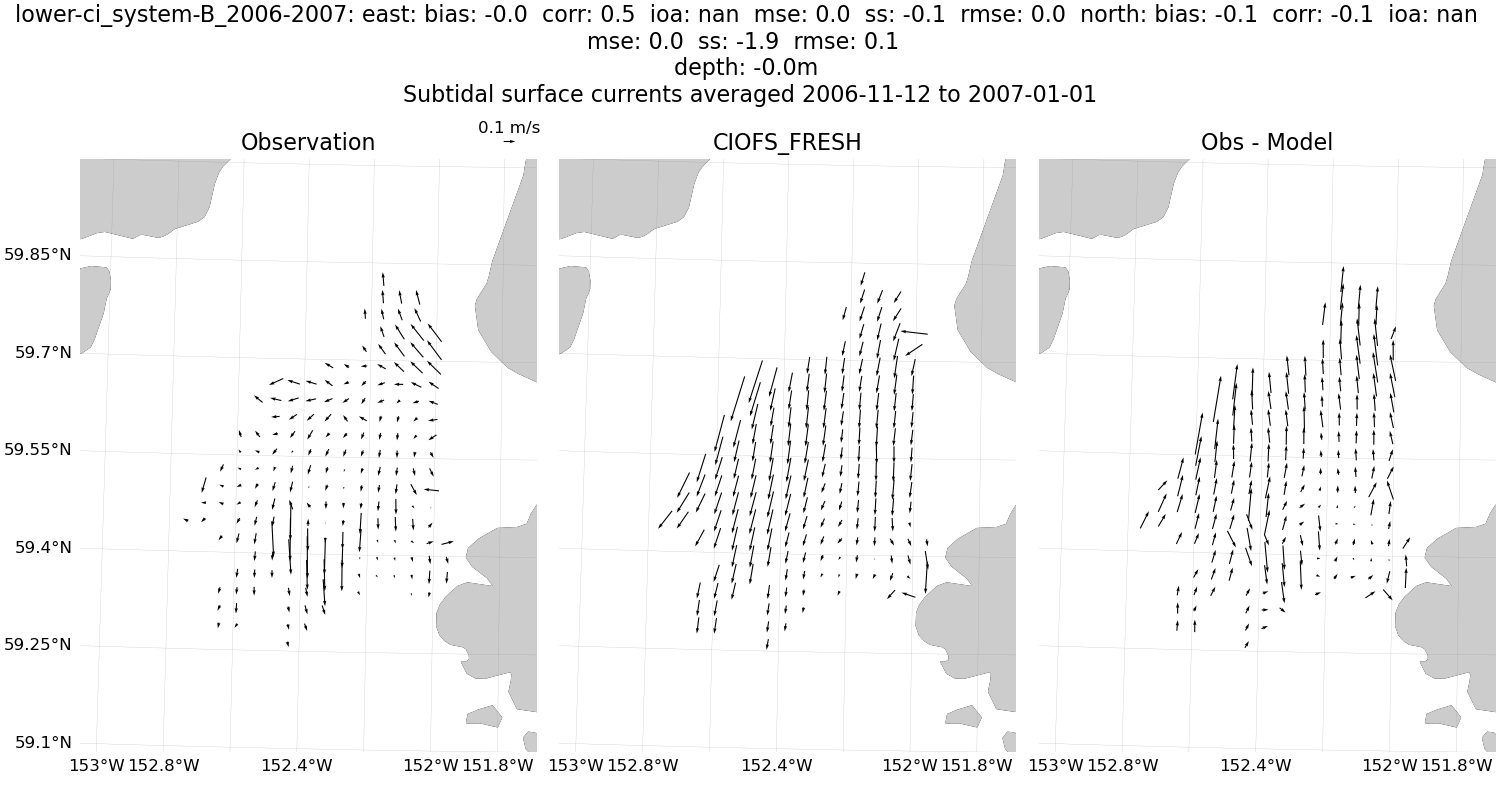

Fig. 109 Subtidal mean from surface currents for CIOFS_FRESH and dataset lower-ci_system-B_2006-2007

Hourly

CIOFS_HINDCAST

../../../../_images/hfradar_lower-ci_system-B_2006-2007_east_north_2006-11-12_2007-01-01_remove-under-50-percent-data_units-to-meters.mp4

Fig. 110 Hourly from surface currents for CIOFS_HINDCAST and dataset lower-ci_system-B_2006-2007

CIOFS_FRESH

../../../../_images/hfradar_lower-ci_system-B_2006-2007_east_north_2006-11-12_2007-01-01_remove-under-50-percent-data_units-to-meters1.mp4

Fig. 111 Hourly from surface currents for CIOFS_FRESH and dataset lower-ci_system-B_2006-2007

Subtidal, 6-Hourly

CIOFS_HINDCAST

../../../../_images/hfradar_lower-ci_system-B_2006-2007_east_north_2006-11-12_2007-01-01_remove-under-50-percent-data_units-to-meters_subtidal_resample-6H.mp4

Fig. 112 Subtidal, 6-hourly from surface currents for CIOFS_HINDCAST and dataset lower-ci_system-B_2006-2007

CIOFS_FRESH

../../../../_images/hfradar_lower-ci_system-B_2006-2007_east_north_2006-11-12_2007-01-01_remove-under-50-percent-data_units-to-meters_subtidal_resample-6H1.mp4

Fig. 113 Subtidal, 6-hourly from surface currents for CIOFS_FRESH and dataset lower-ci_system-B_2006-2007

upper-ci_system-A_2002-2003

Subtidal Mean

CIOFS_HINDCAST

Fig. 114 Subtidal mean from surface currents for CIOFS_HINDCAST and dataset upper-ci_system-A_2002-2003

CIOFS_FRESH

Fig. 115 Subtidal mean from surface currents for CIOFS_FRESH and dataset upper-ci_system-A_2002-2003

Hourly

CIOFS_HINDCAST

../../../../_images/hfradar_upper-ci_system-A_2002-2003_east_north_2003-01-01_2003-06-09_remove-under-50-percent-data_units-to-meters.mp4

Fig. 116 Hourly from surface currents for CIOFS_HINDCAST and dataset upper-ci_system-A_2002-2003

CIOFS_FRESH

../../../../_images/hfradar_upper-ci_system-A_2002-2003_east_north_2003-01-01_2003-06-09_remove-under-50-percent-data_units-to-meters1.mp4

Fig. 117 Hourly from surface currents for CIOFS_FRESH and dataset upper-ci_system-A_2002-2003

Subtidal, 6-Hourly

CIOFS_HINDCAST

../../../../_images/hfradar_upper-ci_system-A_2002-2003_east_north_2003-01-01_2003-06-09_remove-under-50-percent-data_units-to-meters_subtidal_resample-6H.mp4

Fig. 118 Subtidal, 6-hourly from surface currents for CIOFS_HINDCAST and dataset upper-ci_system-A_2002-2003

CIOFS_FRESH

../../../../_images/hfradar_upper-ci_system-A_2002-2003_east_north_2003-01-01_2003-06-09_remove-under-50-percent-data_units-to-meters_subtidal_resample-6H1.mp4

Fig. 119 Subtidal, 6-hourly from surface currents for CIOFS_FRESH and dataset upper-ci_system-A_2002-2003

lower-ci_system-B_2006

Tidal Constants

CIOFS_HINDCAST

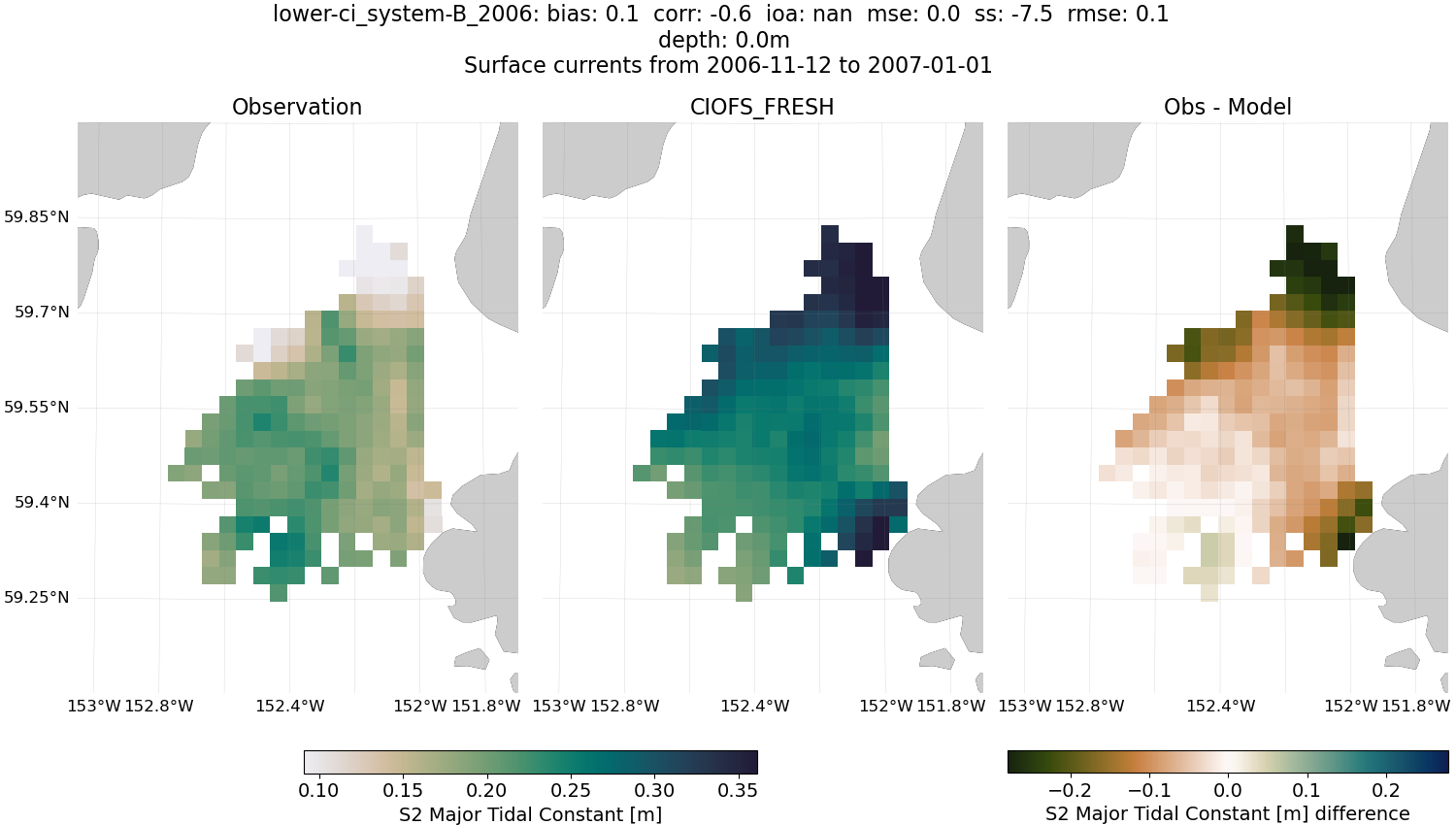

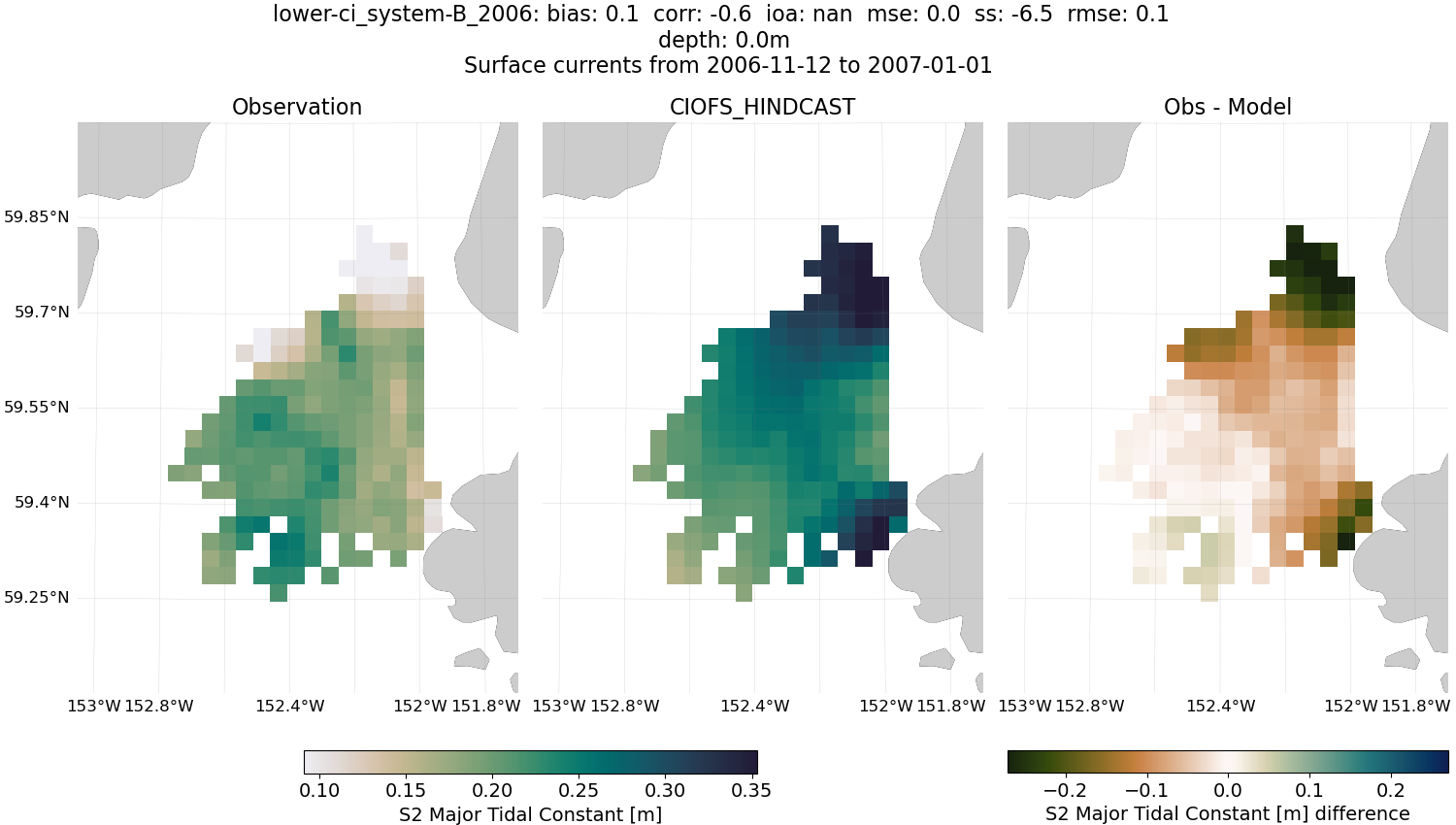

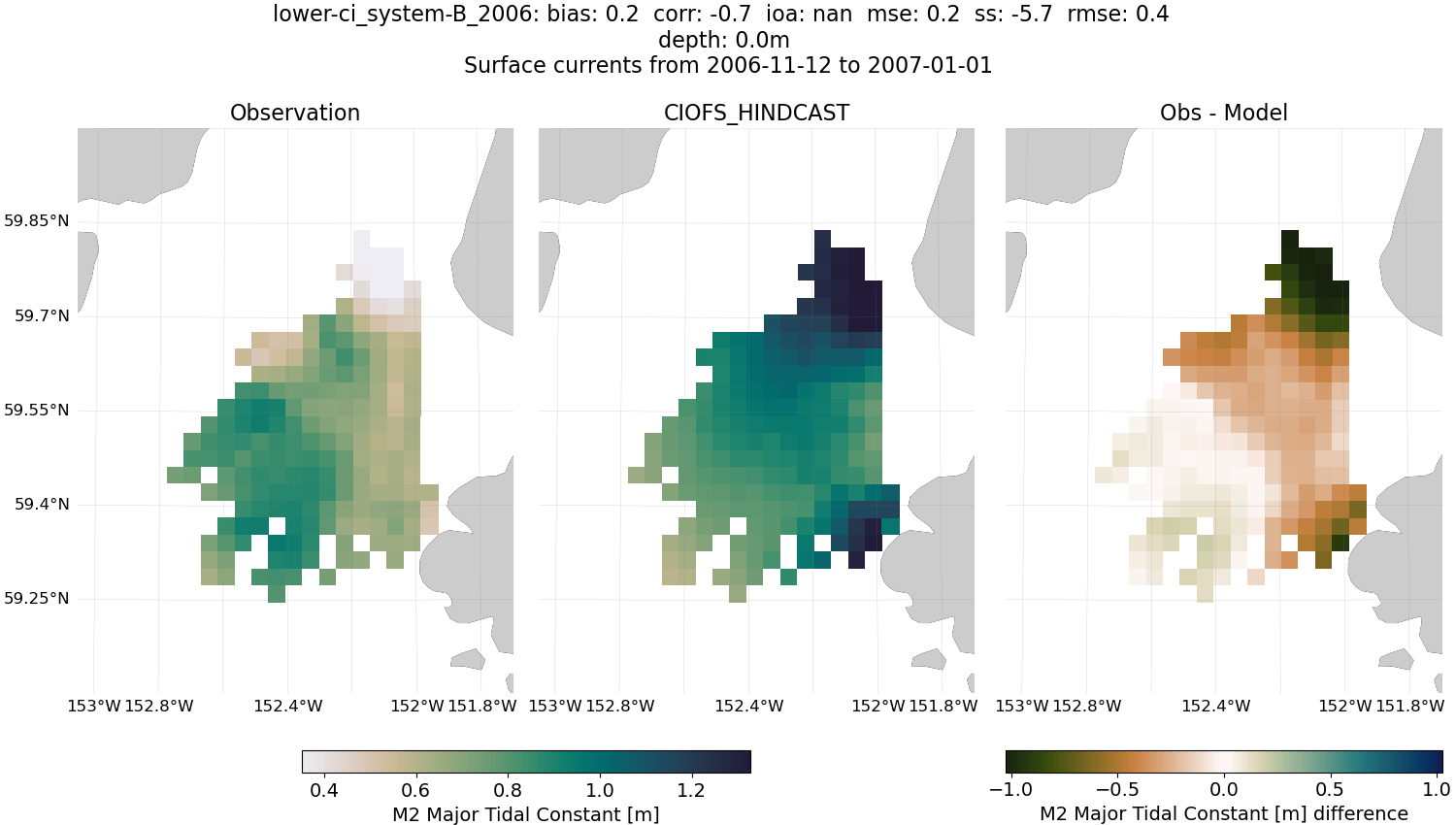

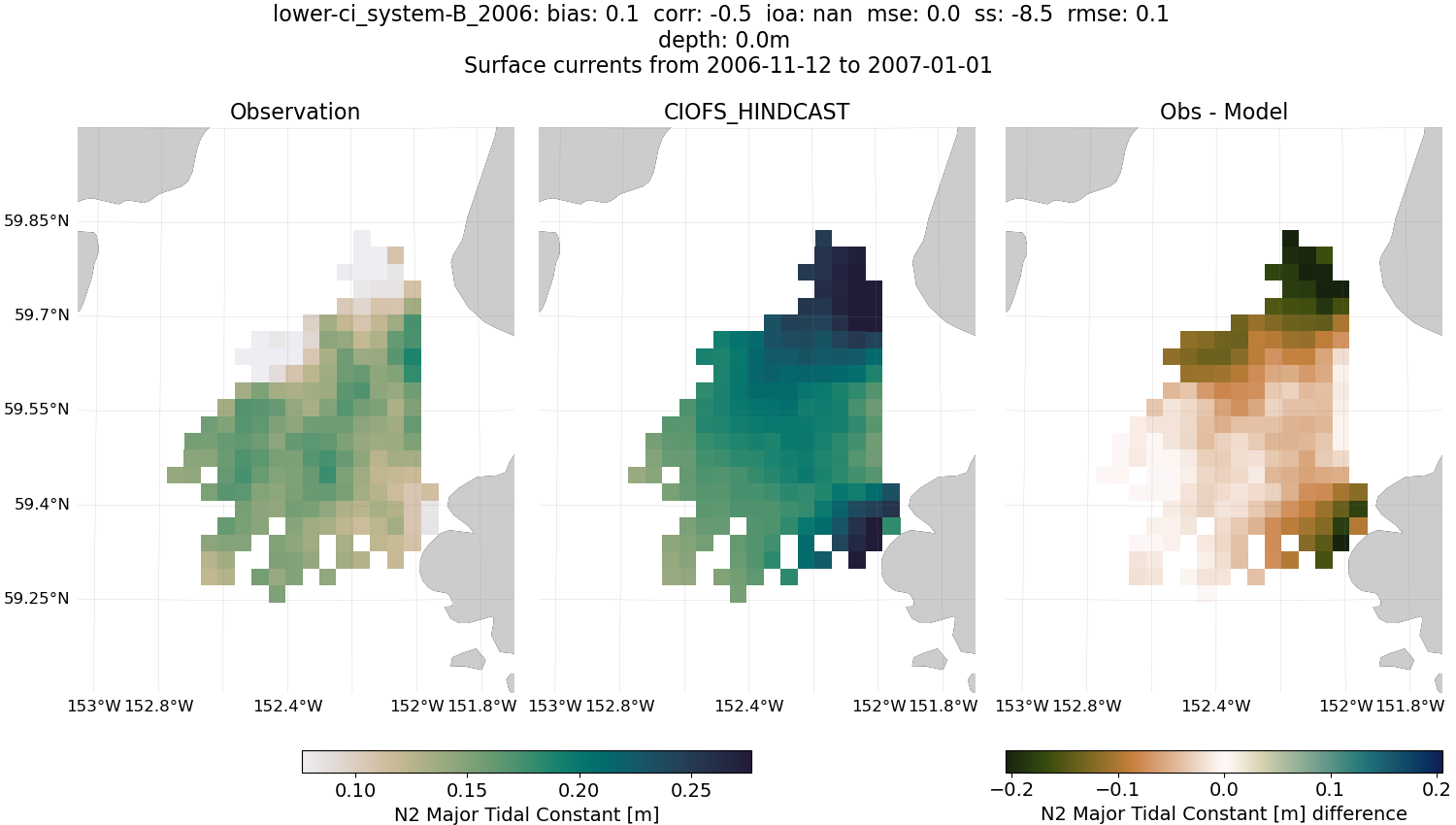

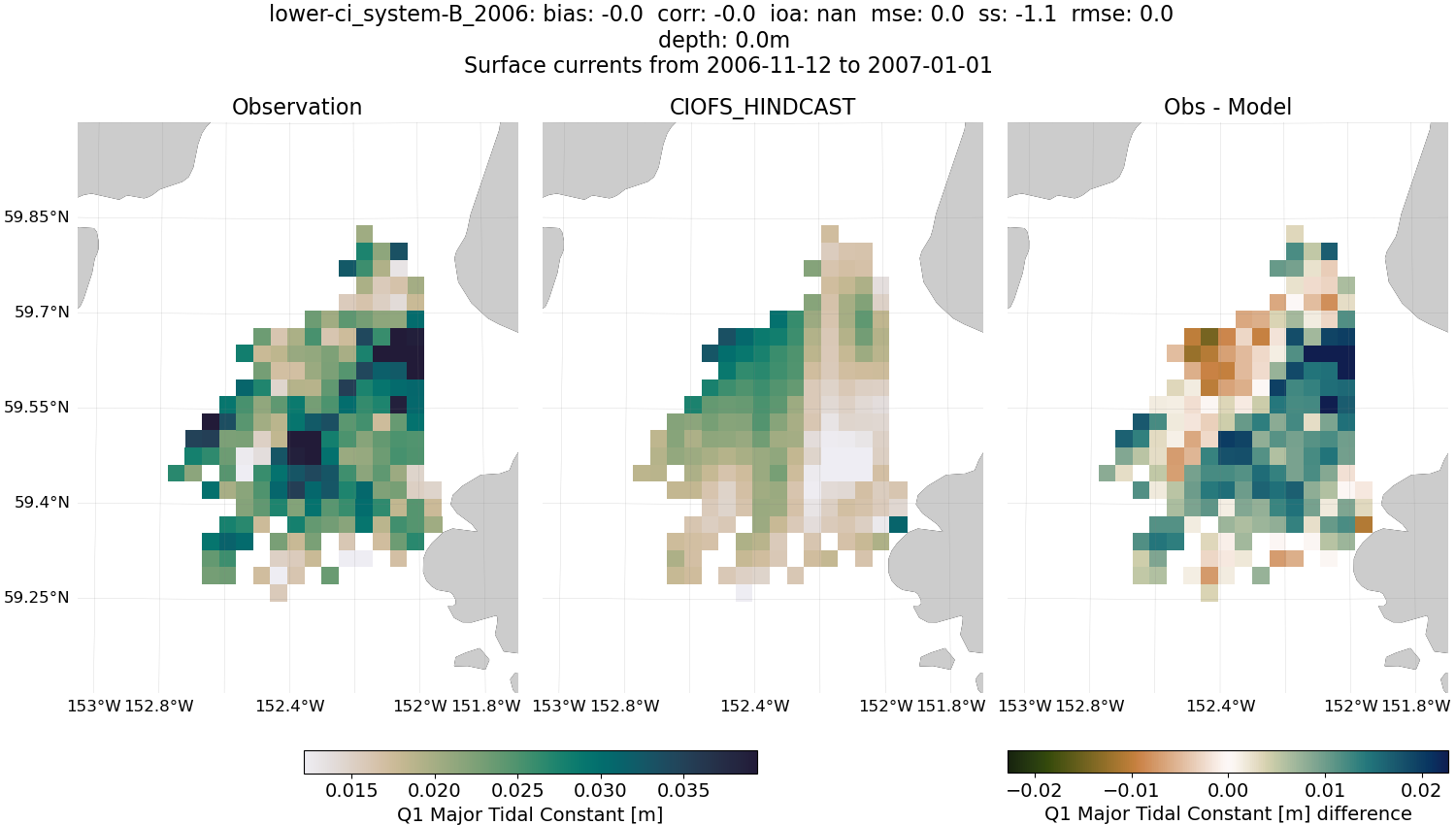

Major Amplitude

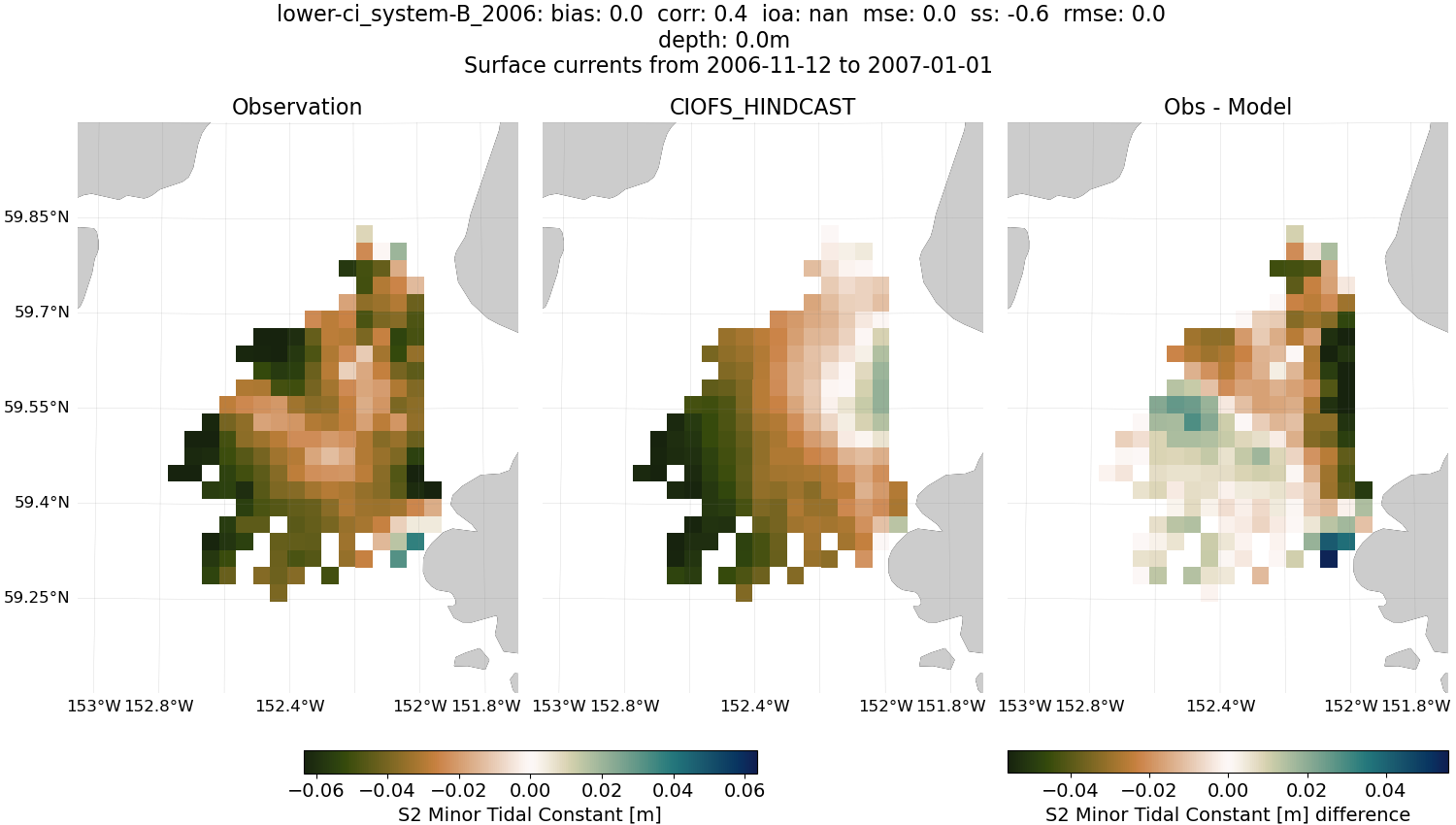

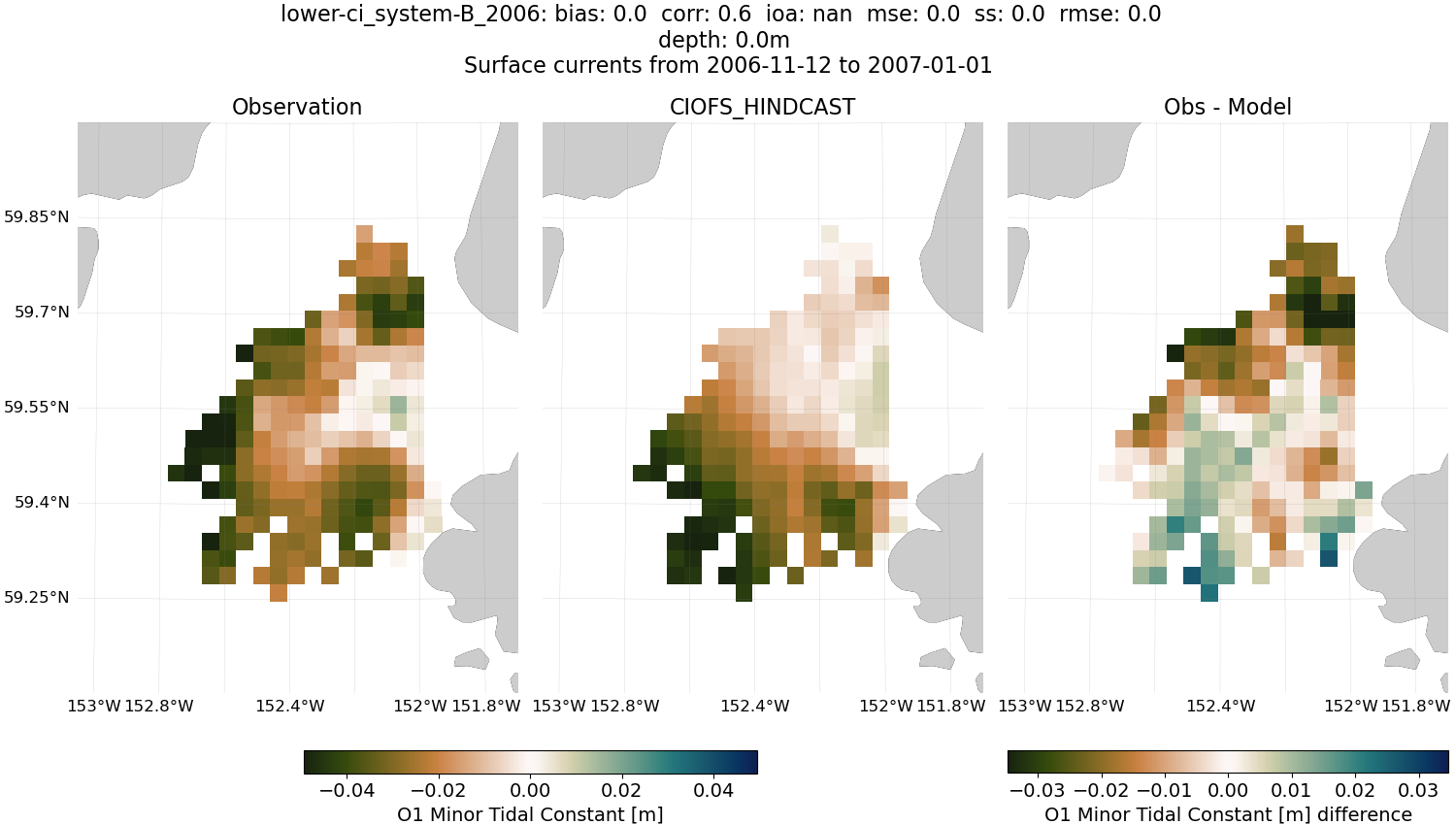

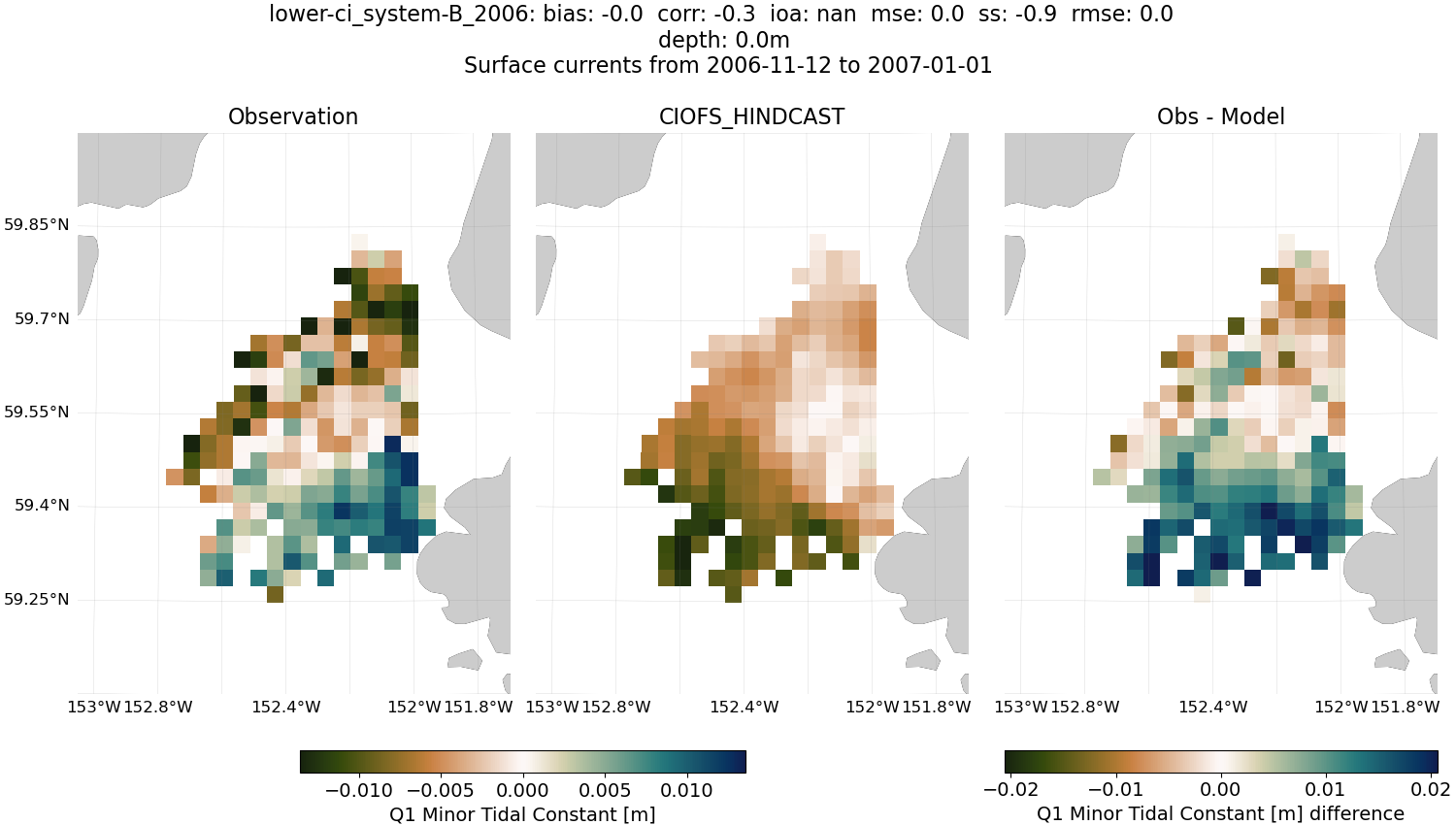

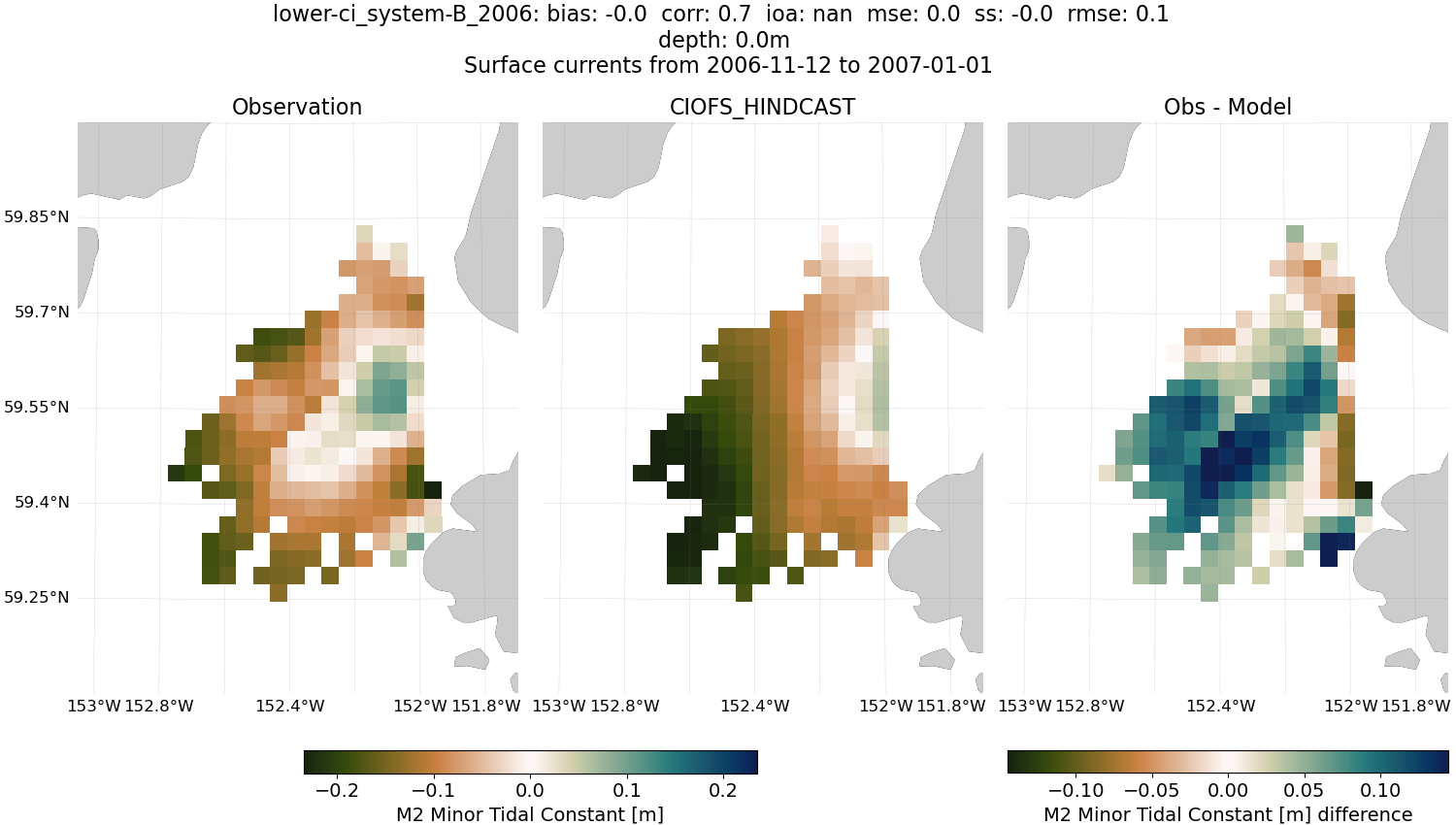

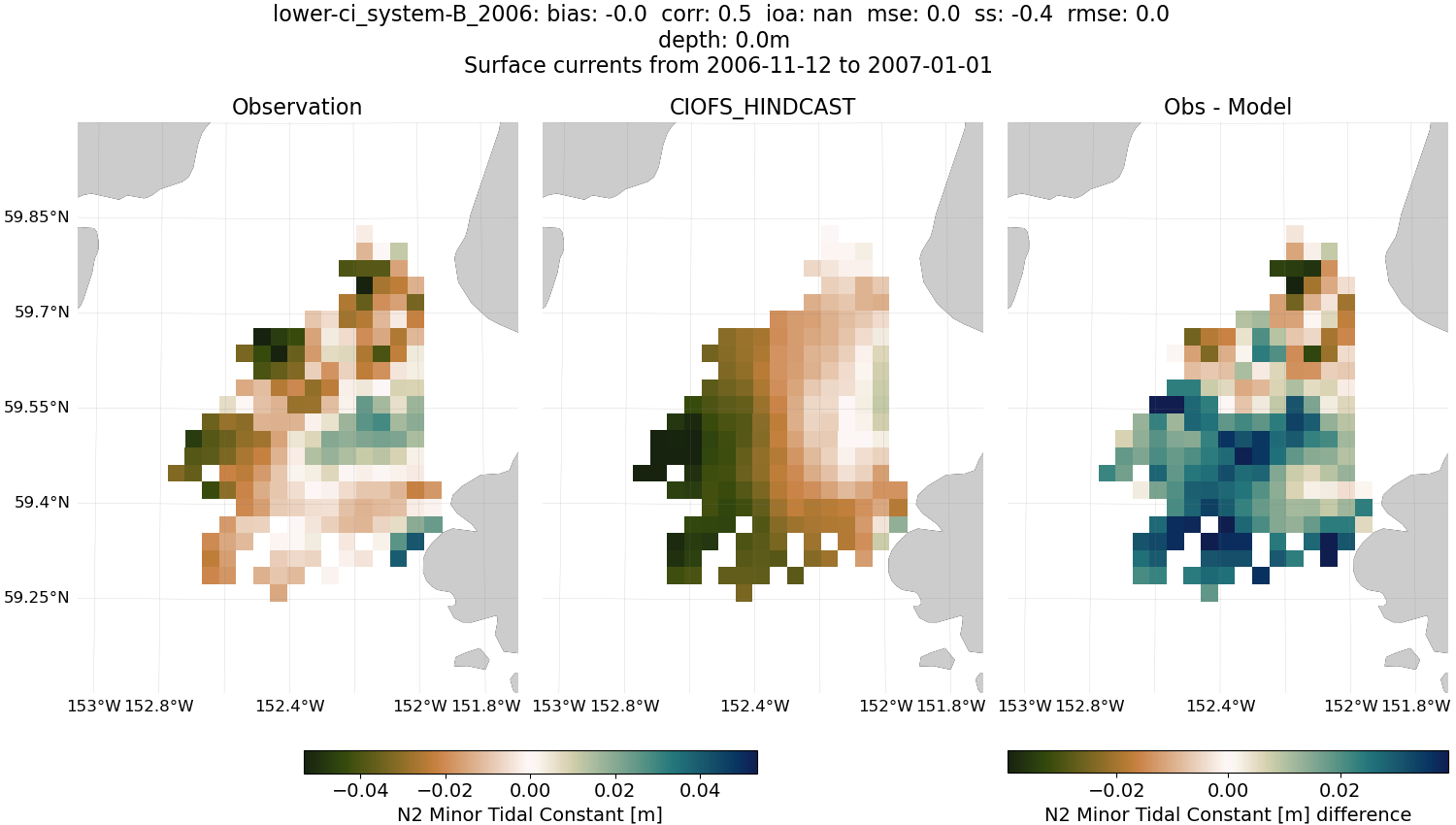

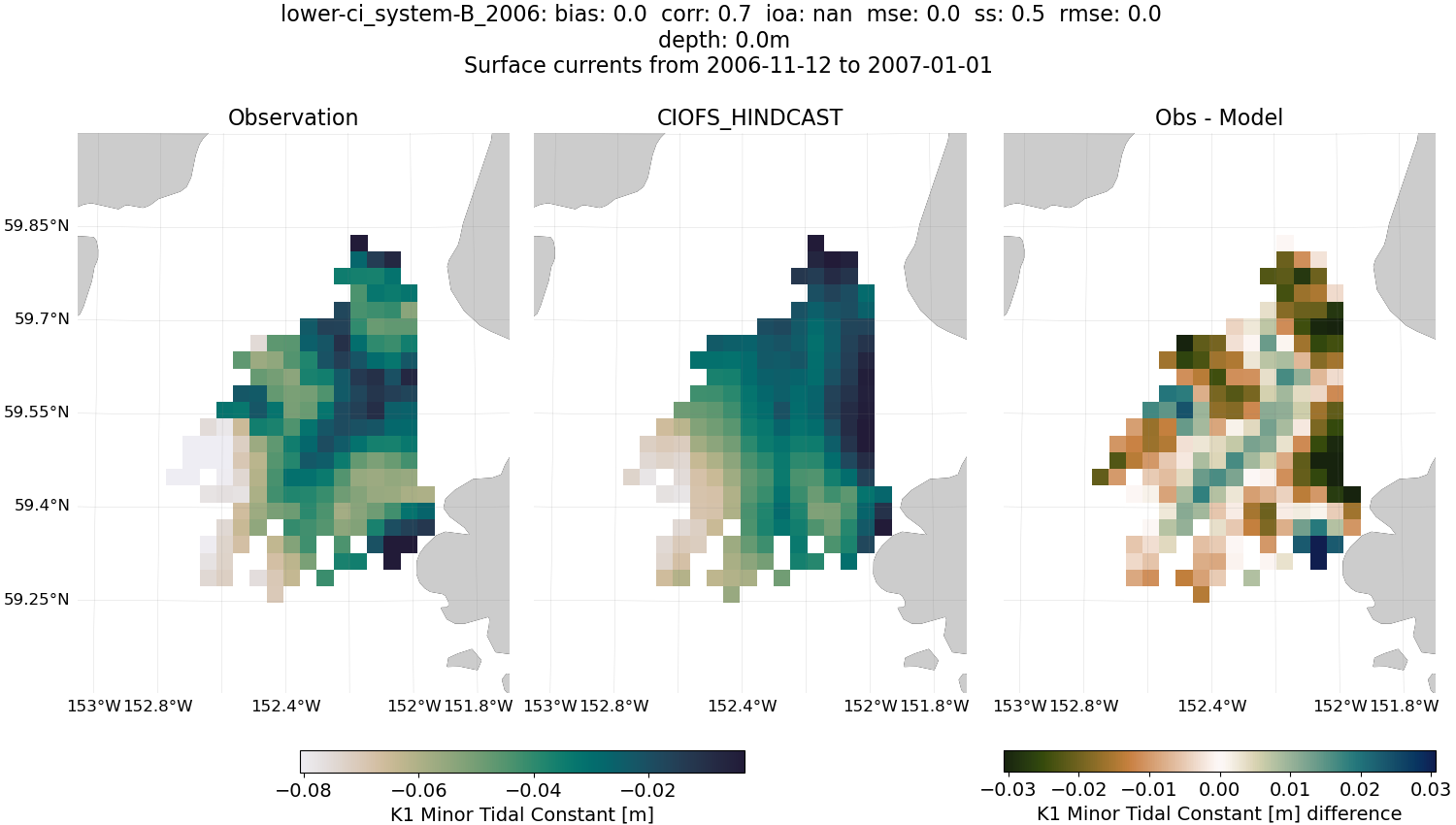

Minor Amplitude

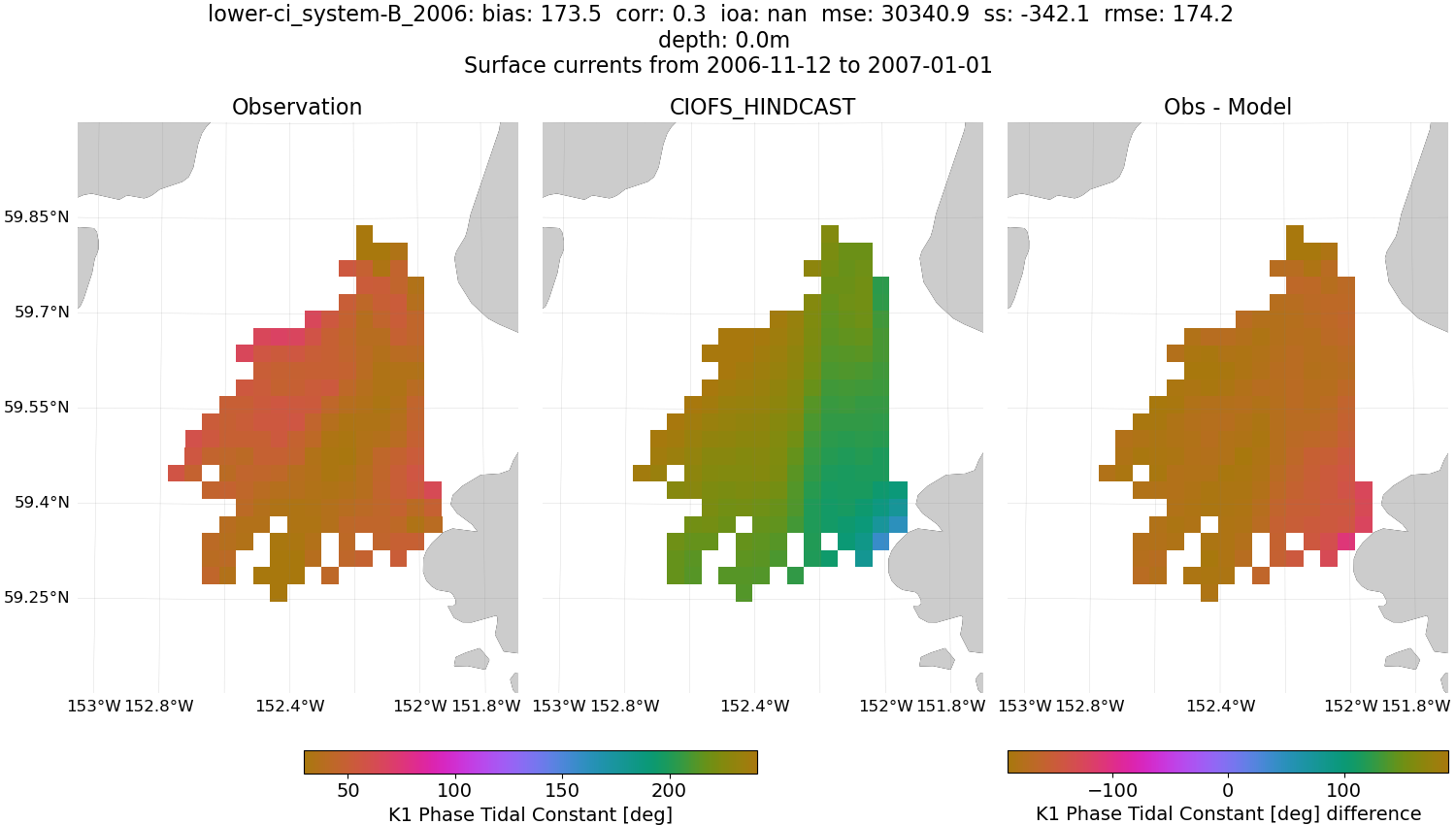

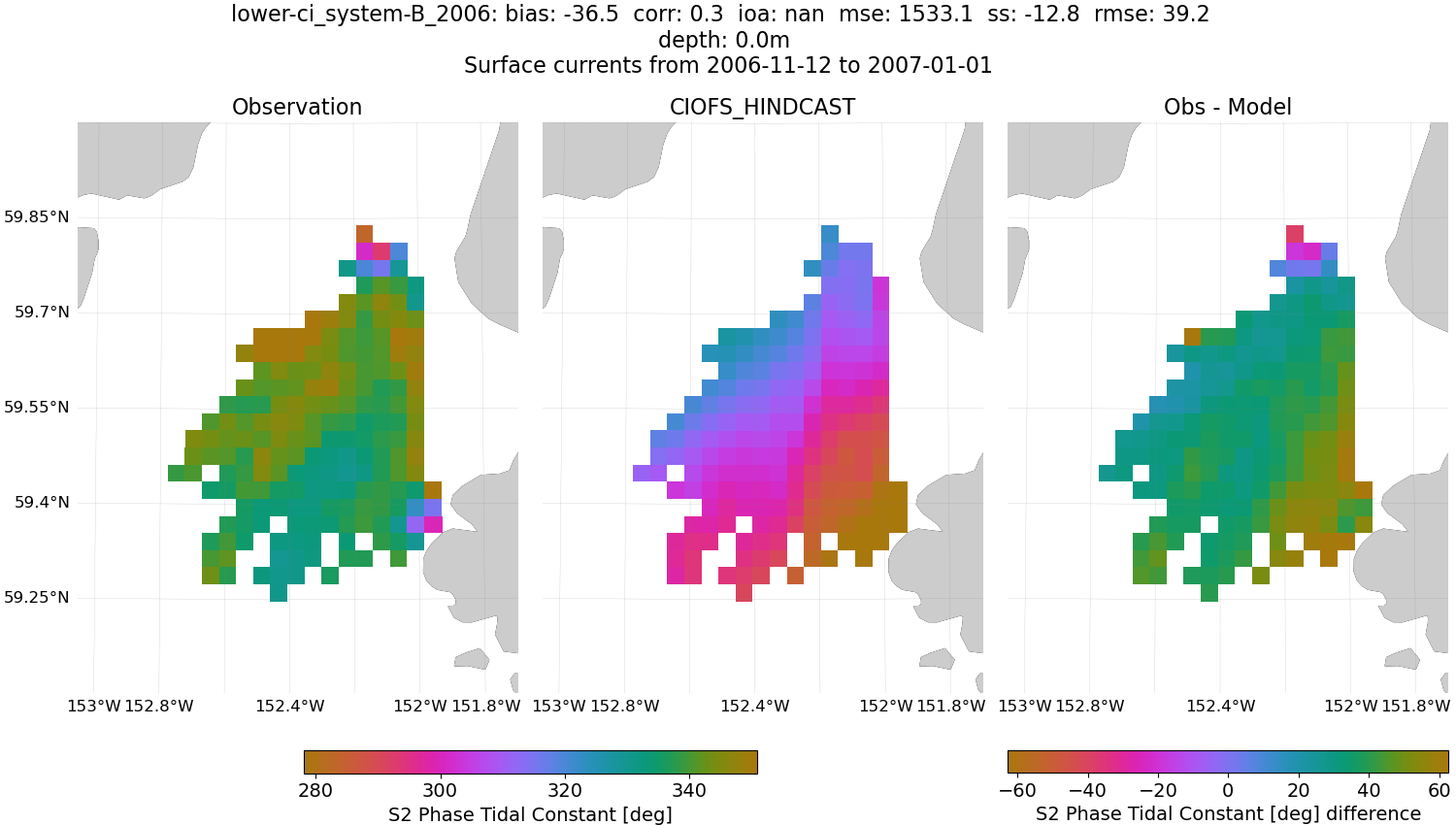

Phase

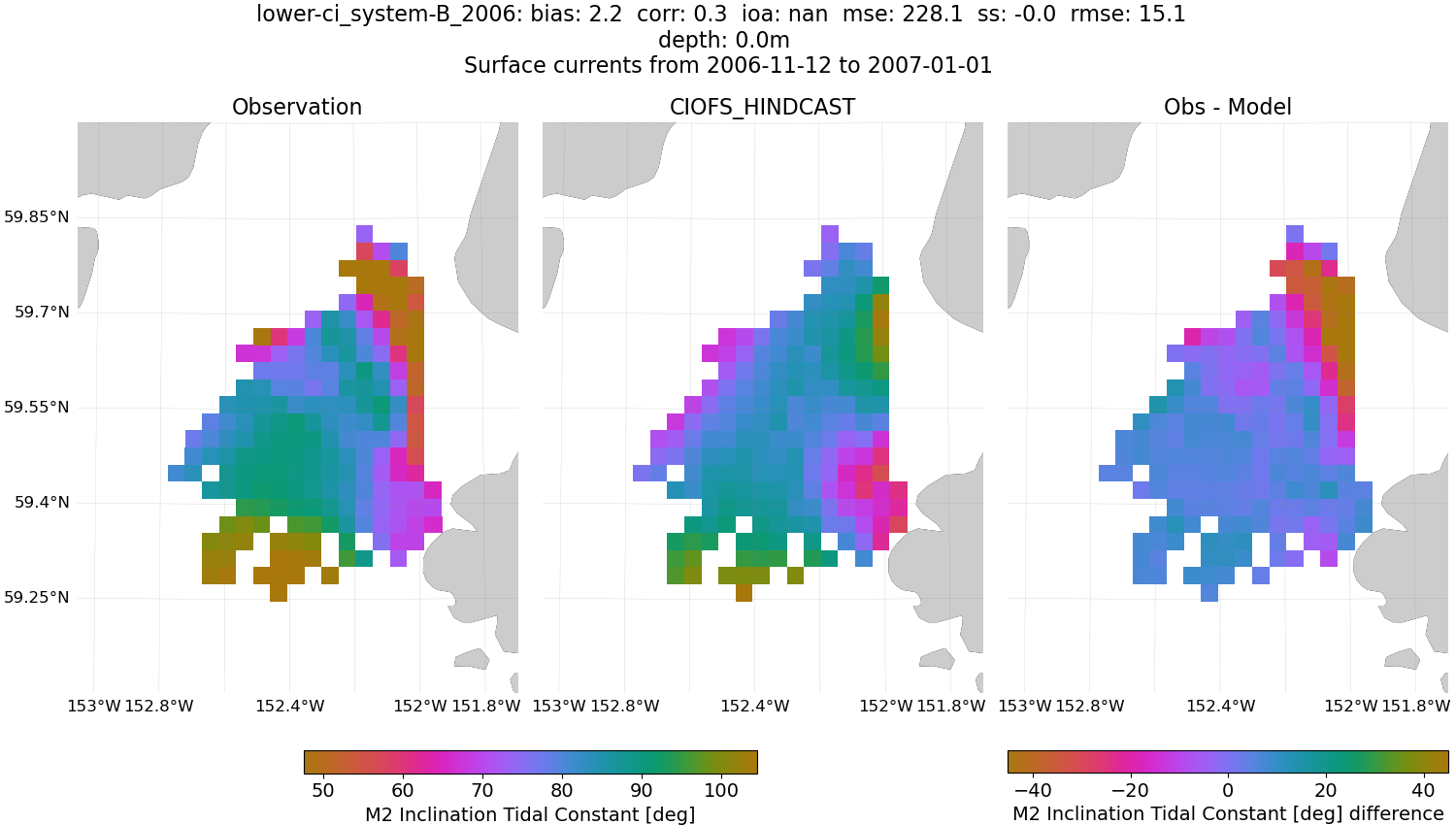

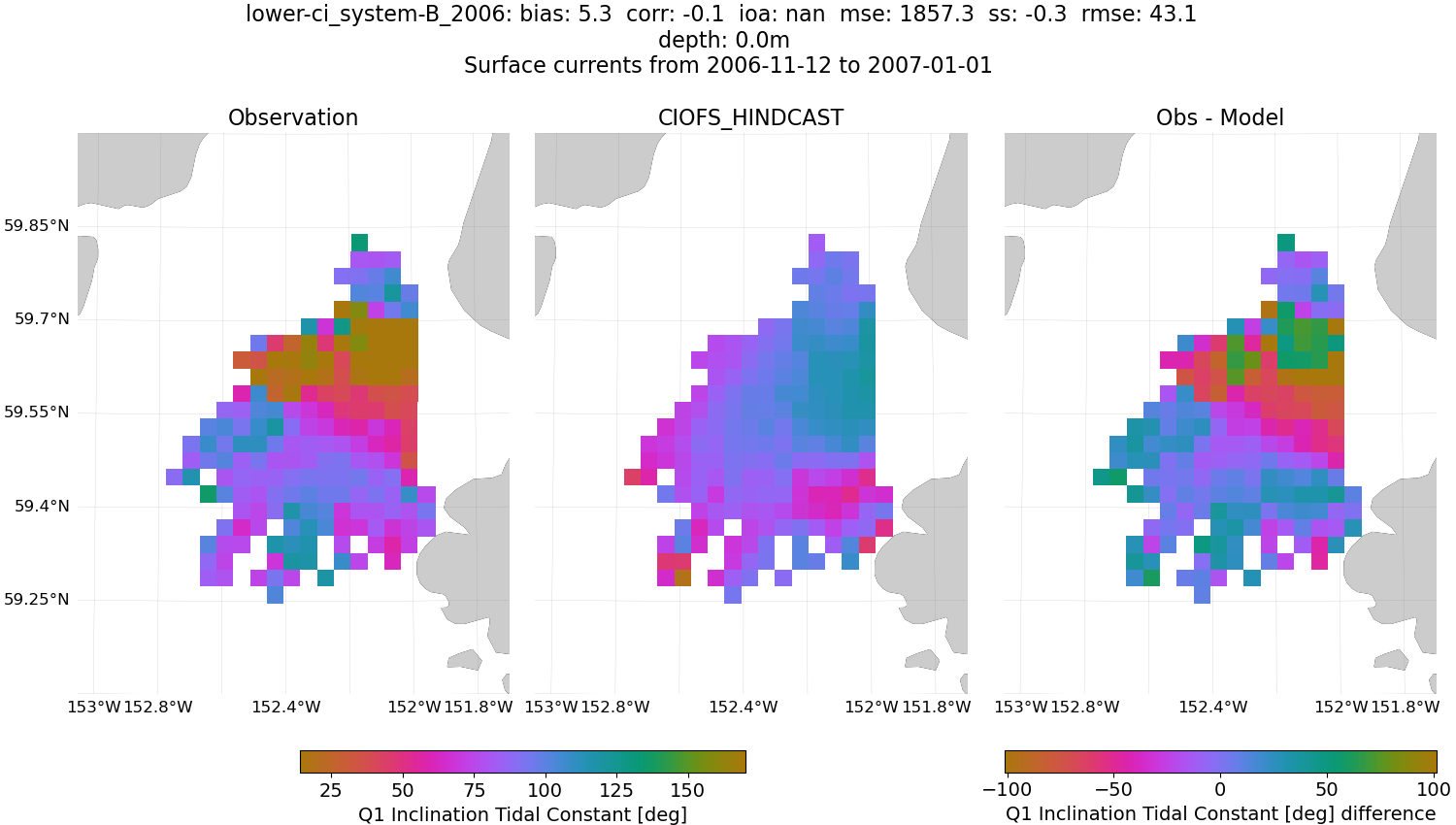

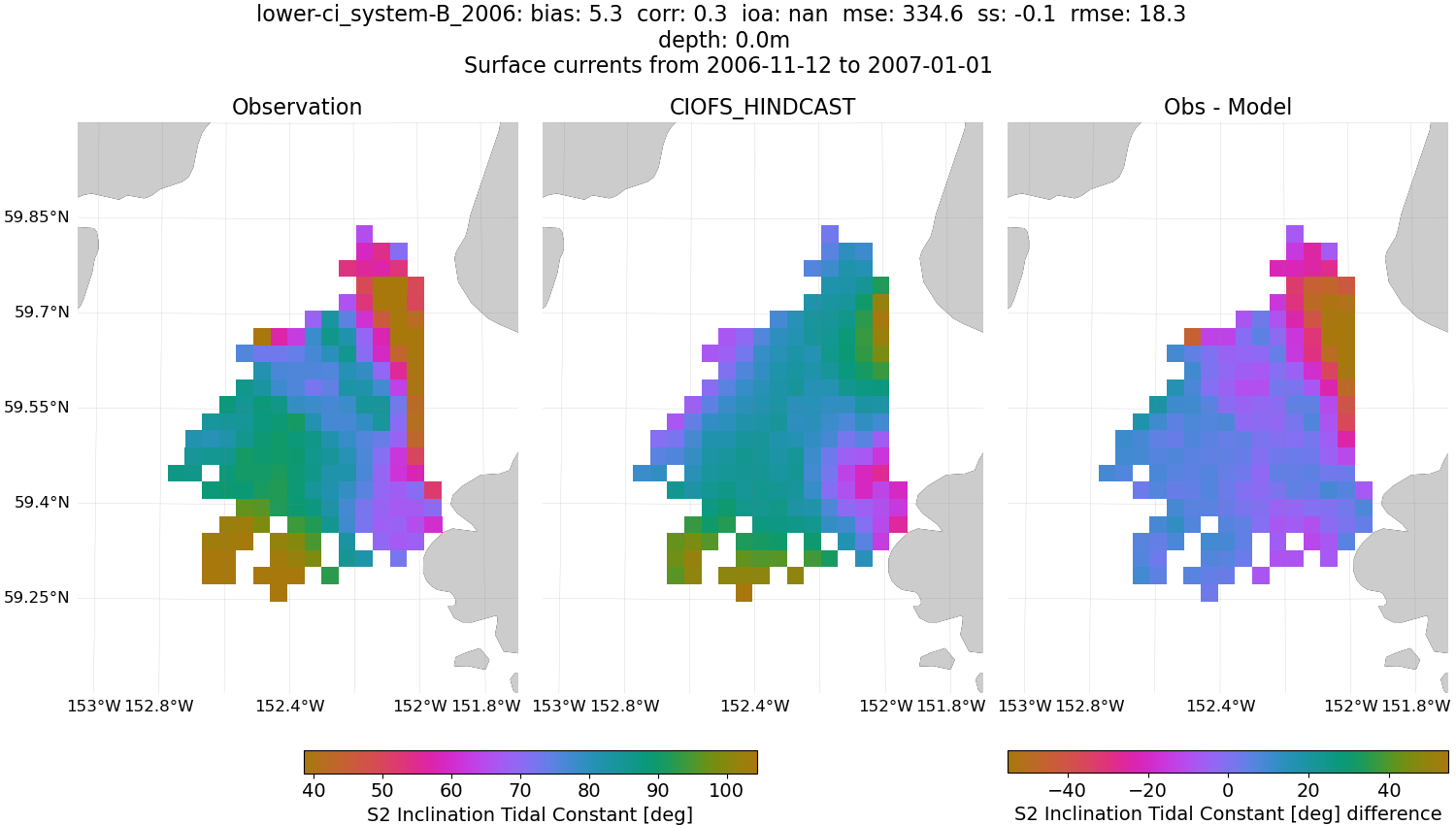

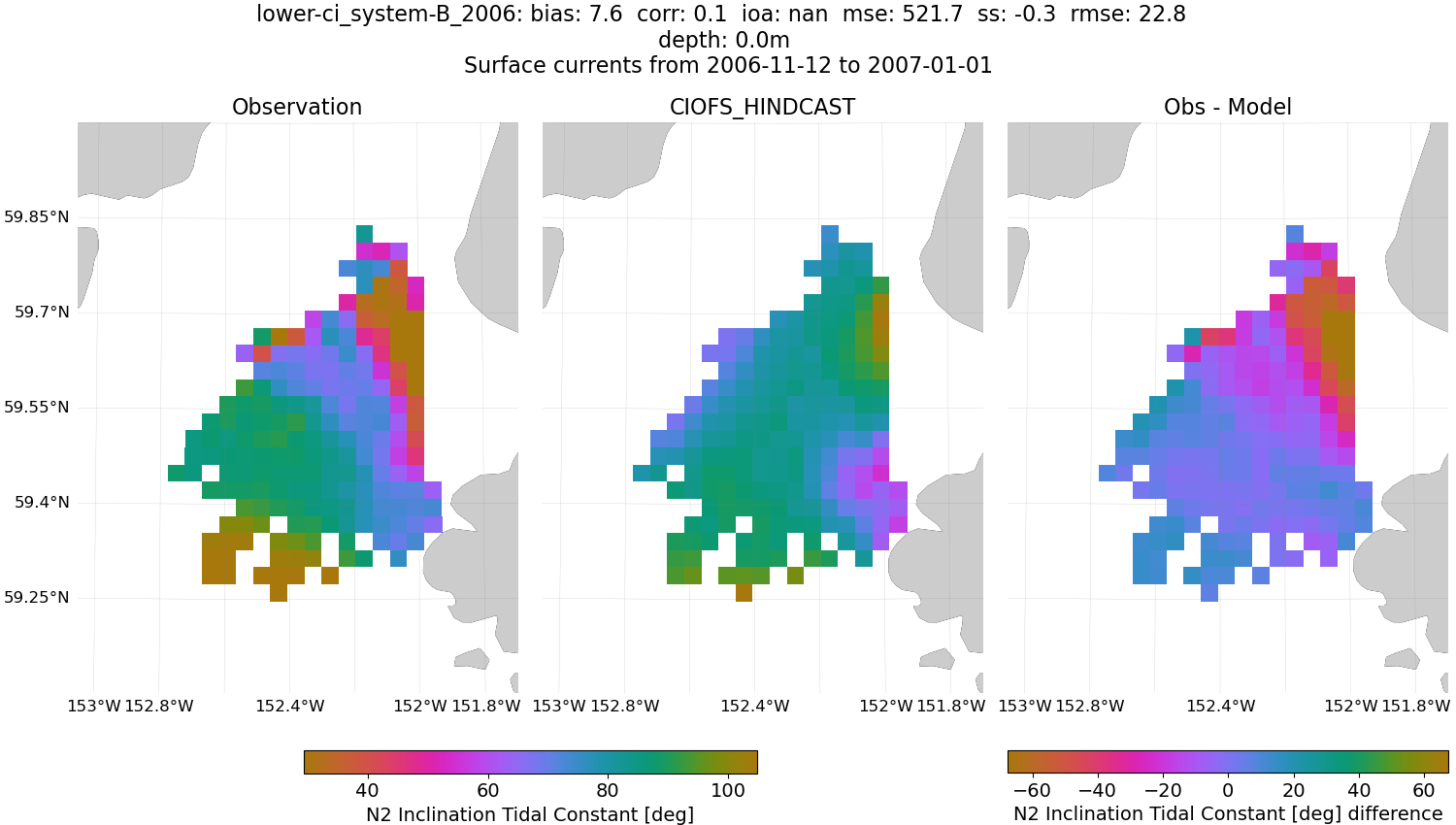

Inclination

CIOFS_FRESH

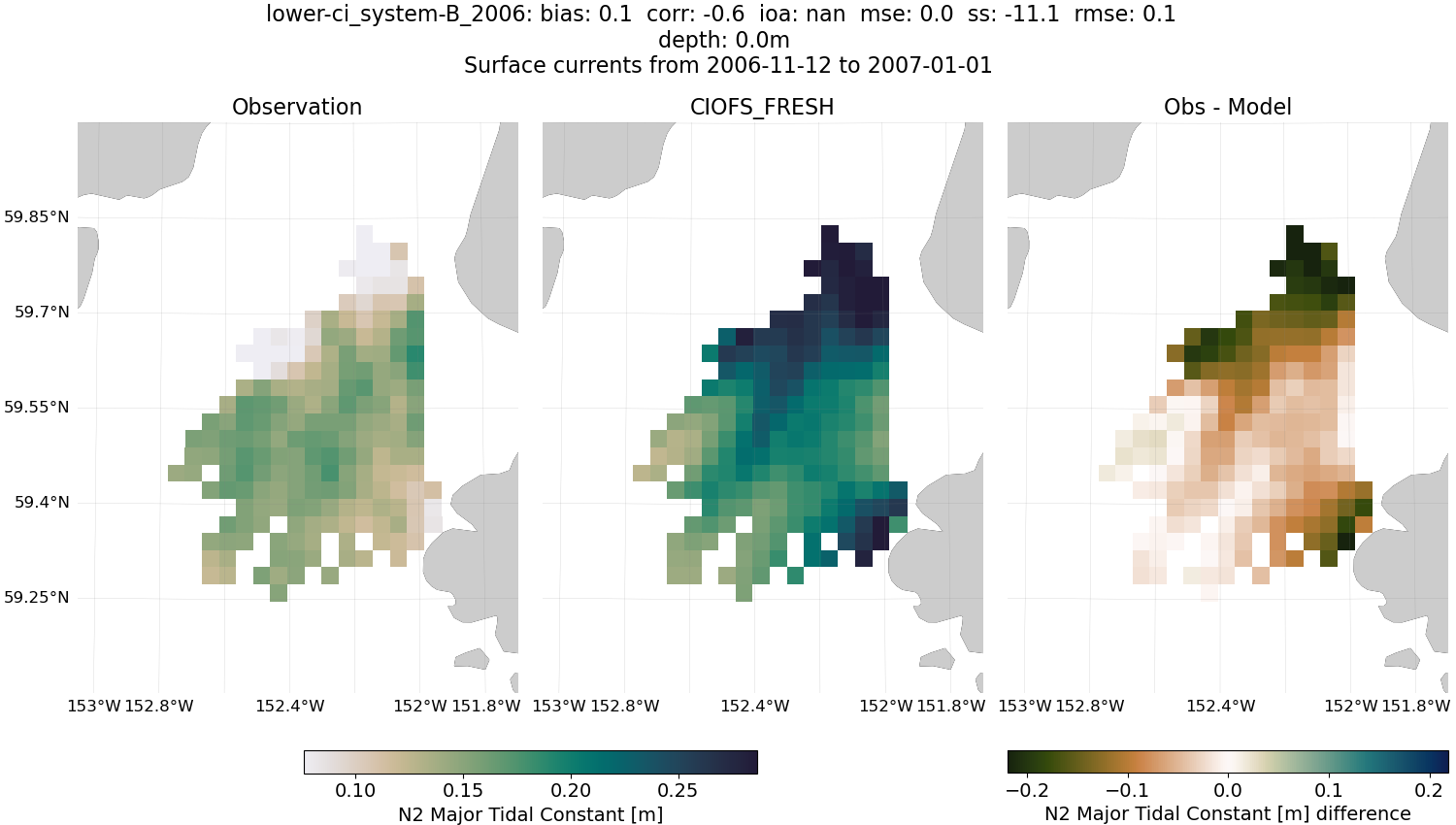

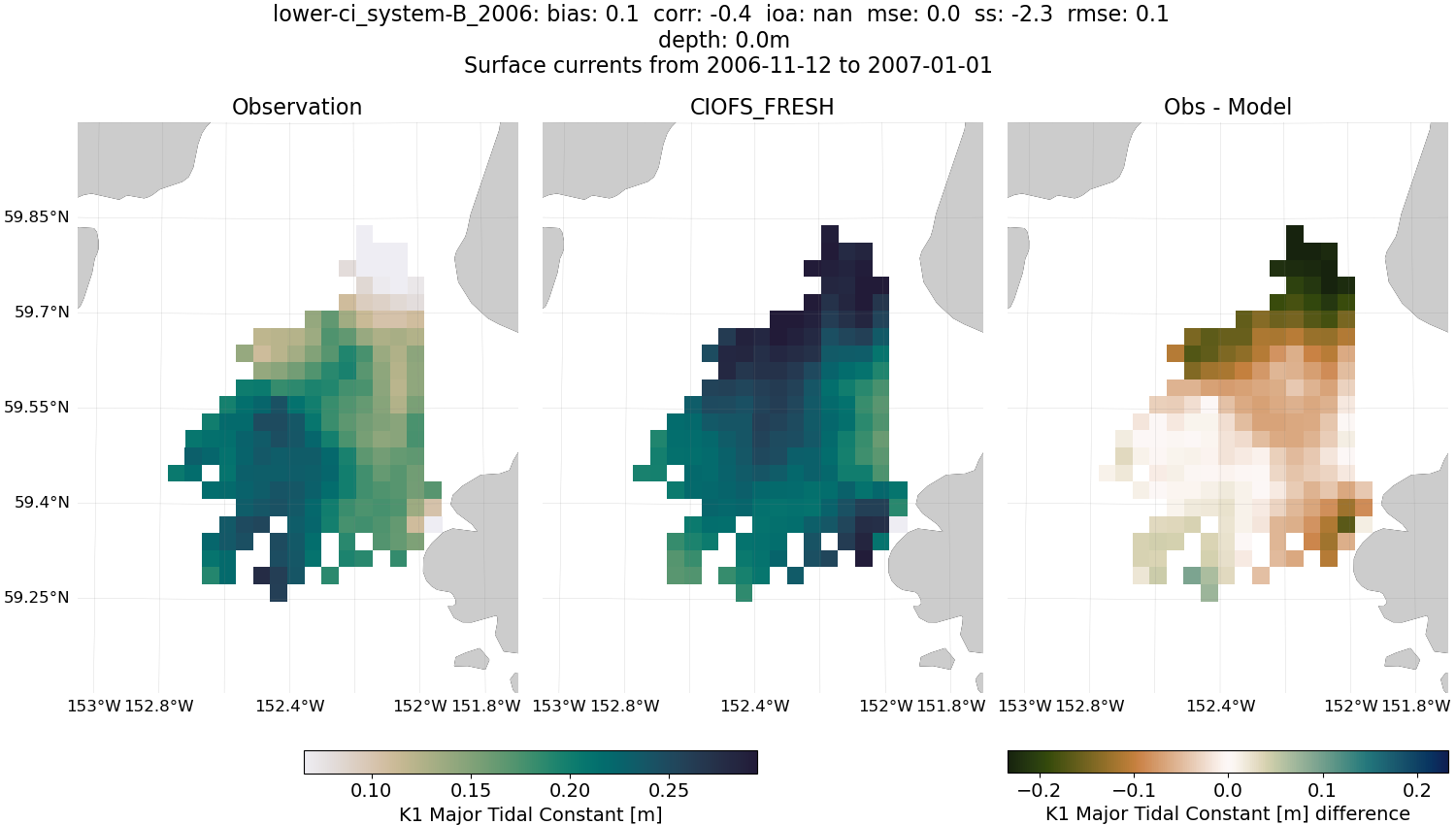

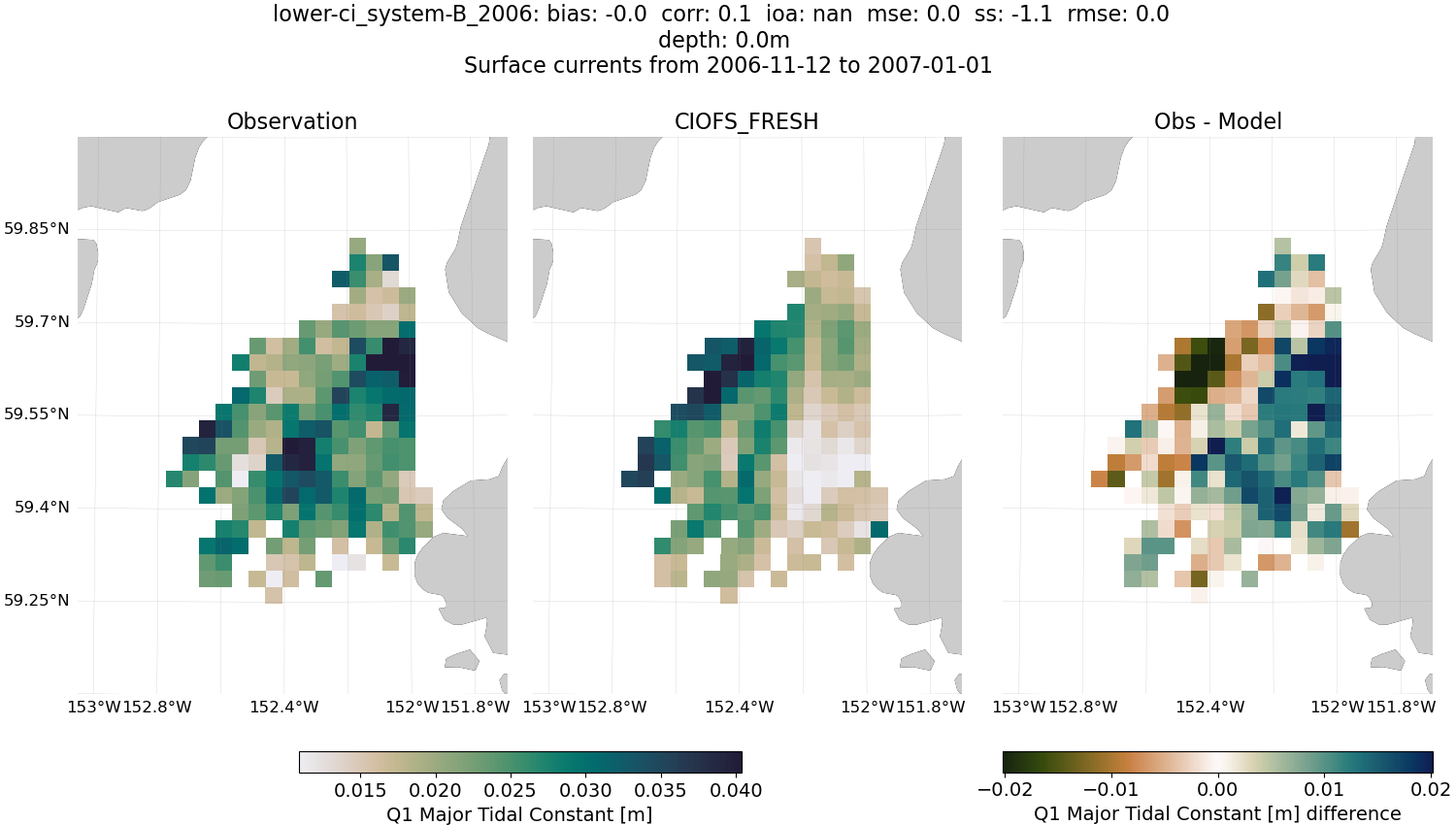

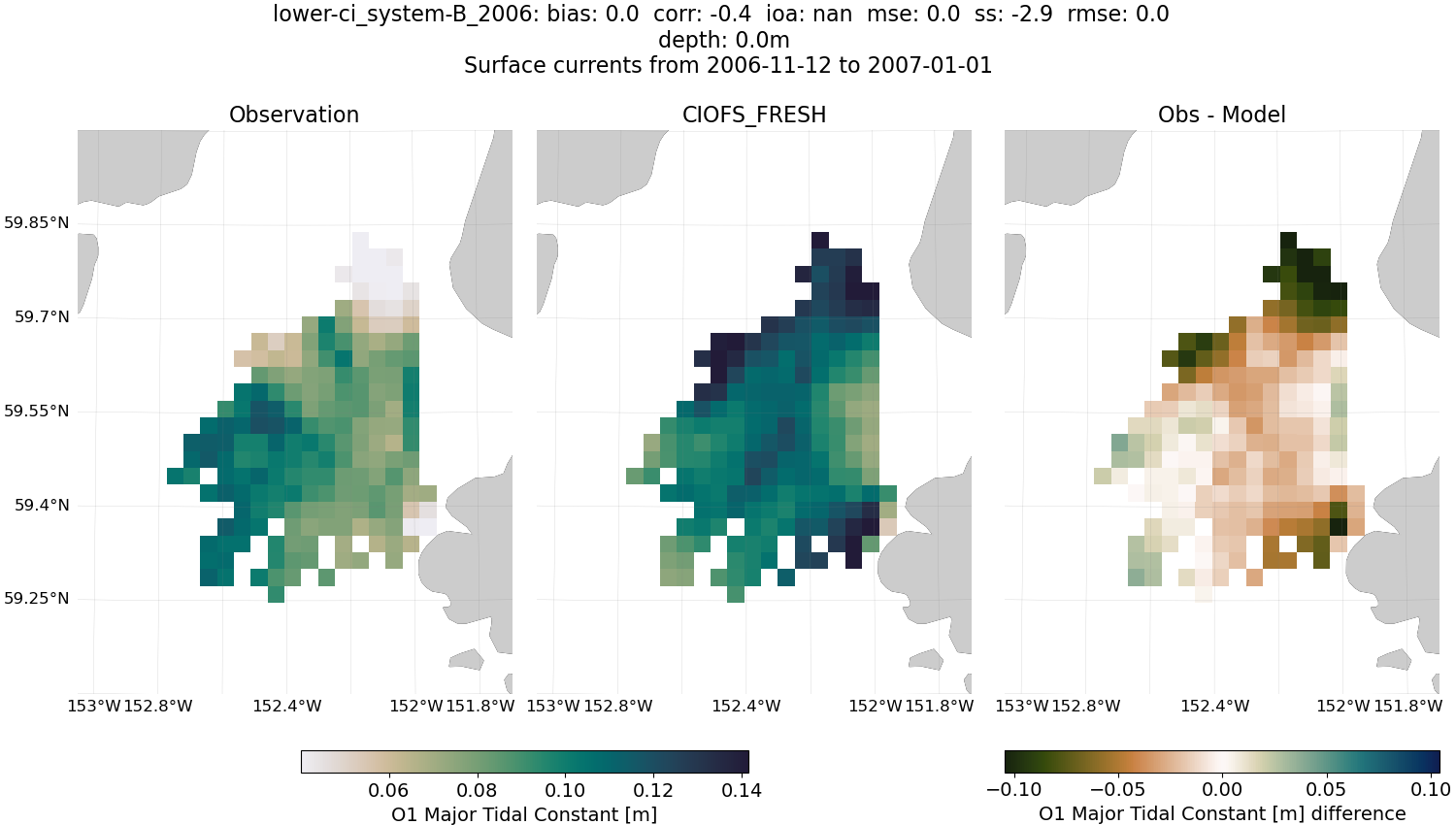

Major Amplitude

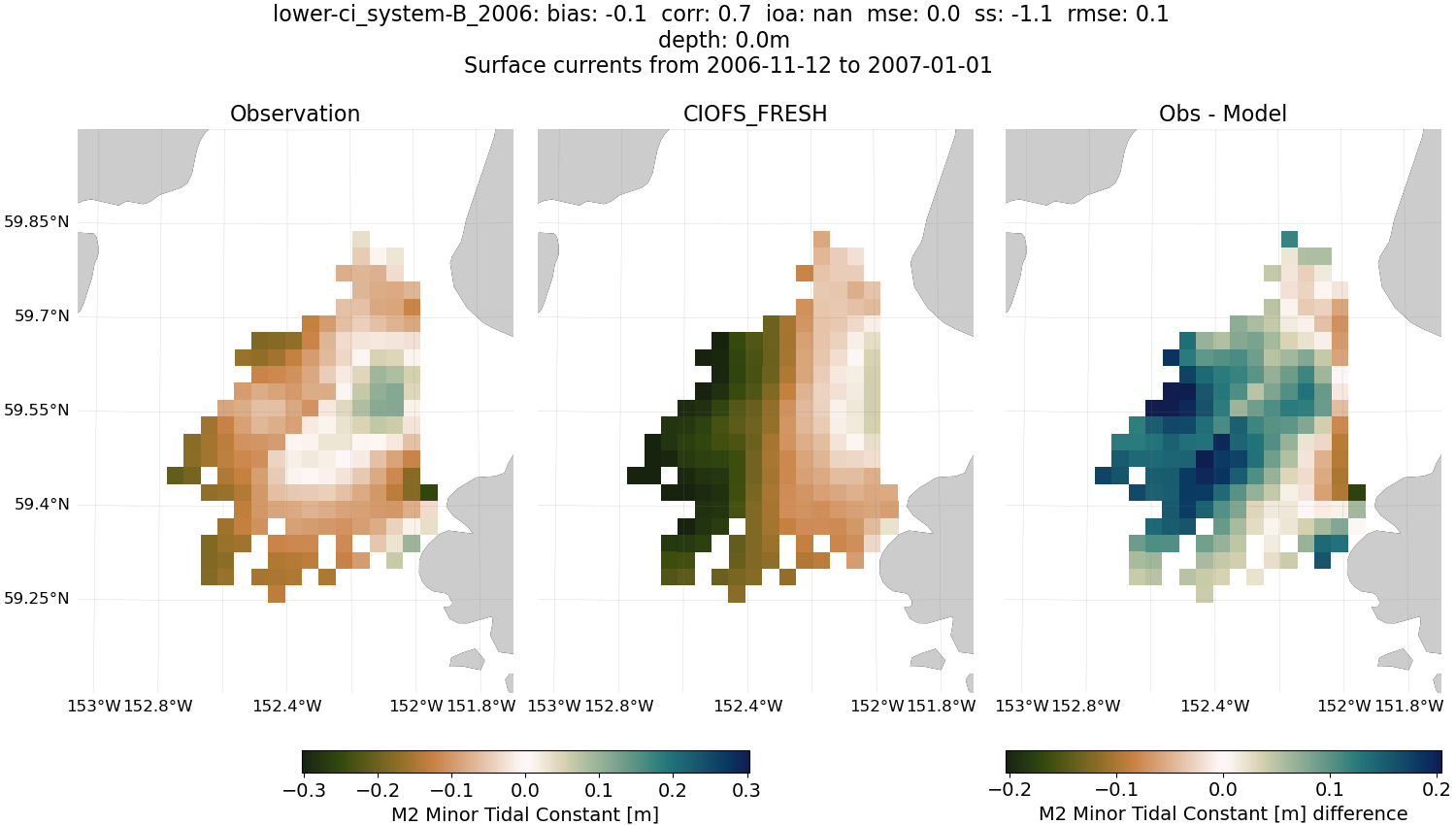

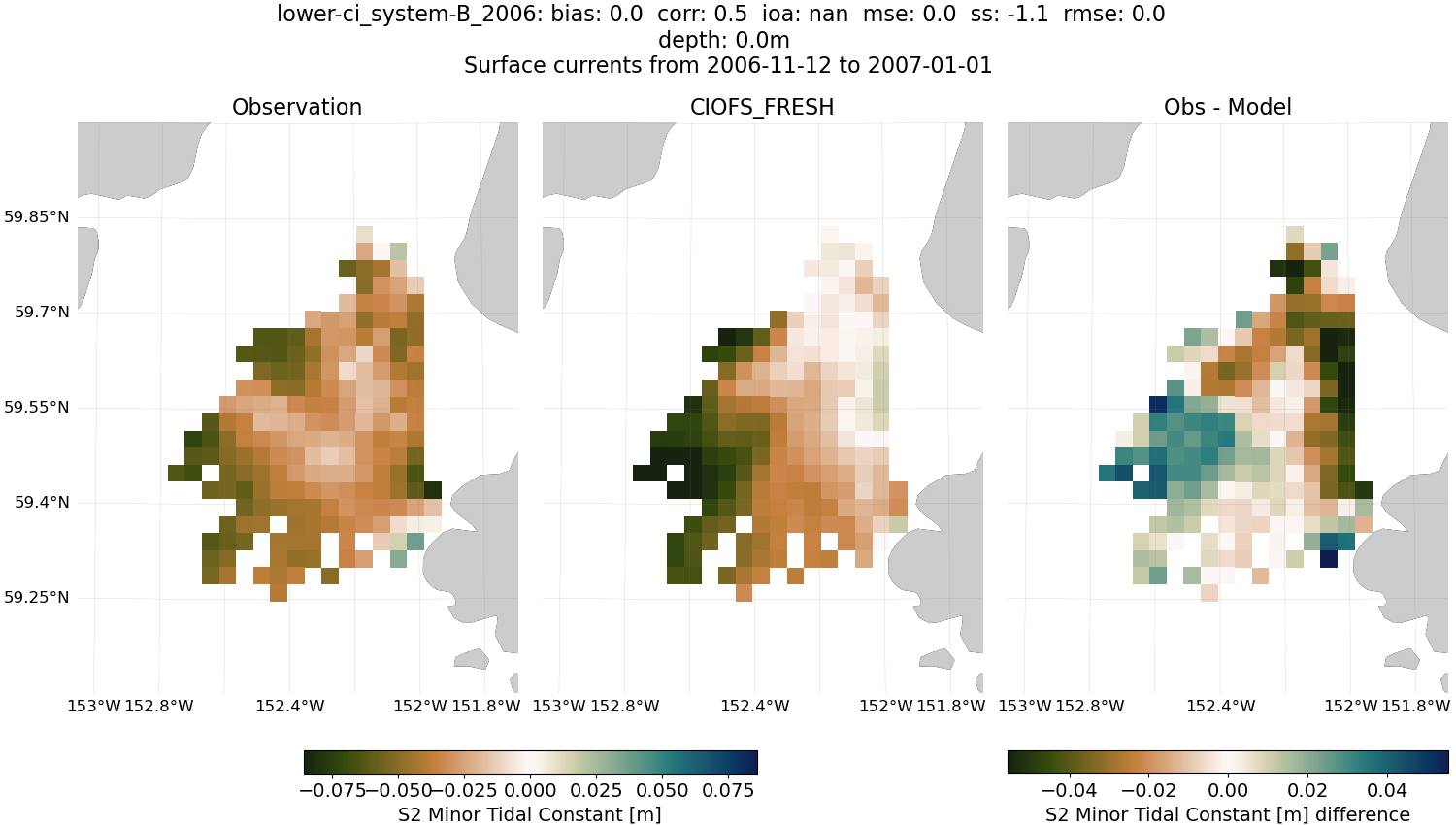

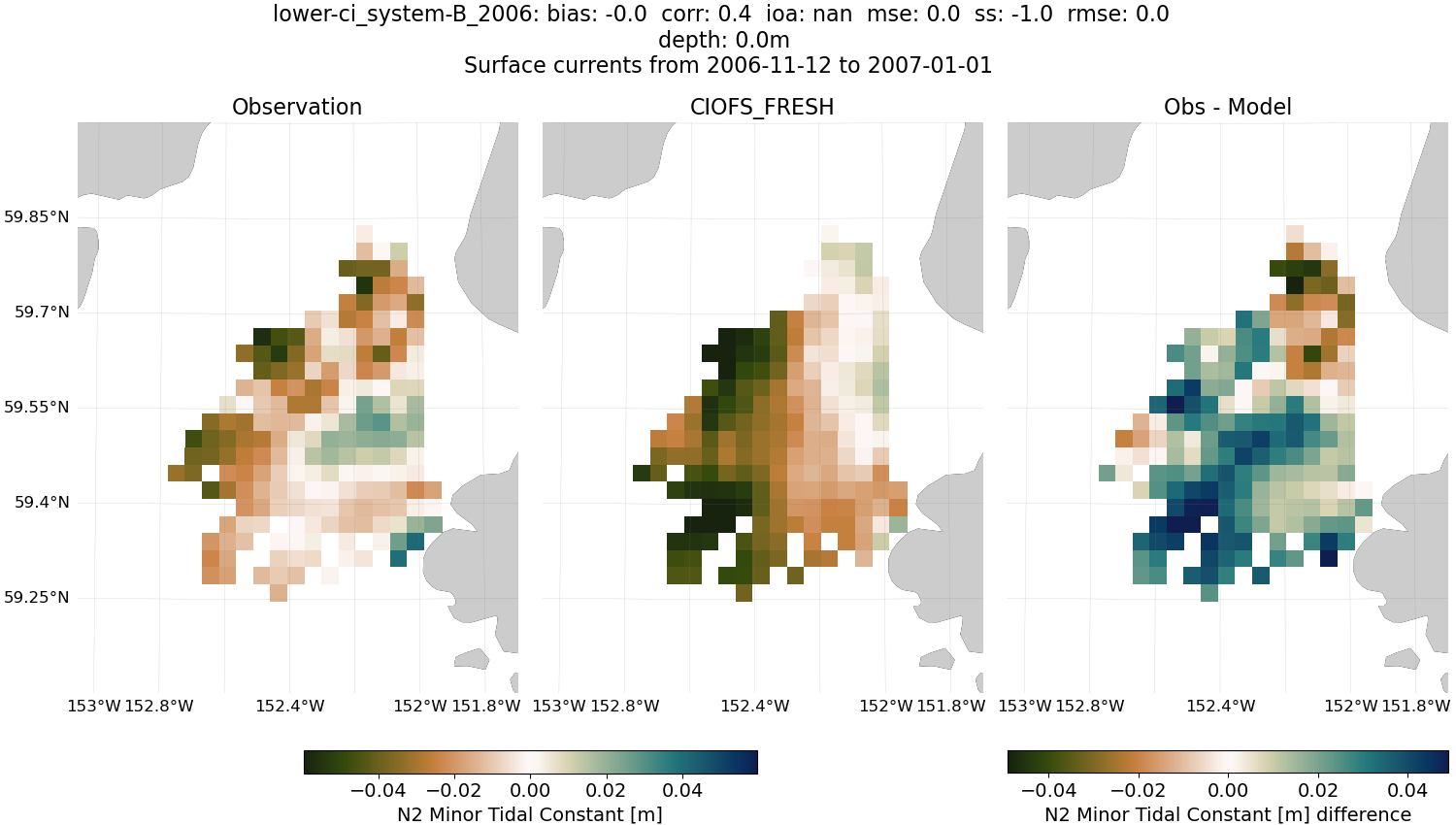

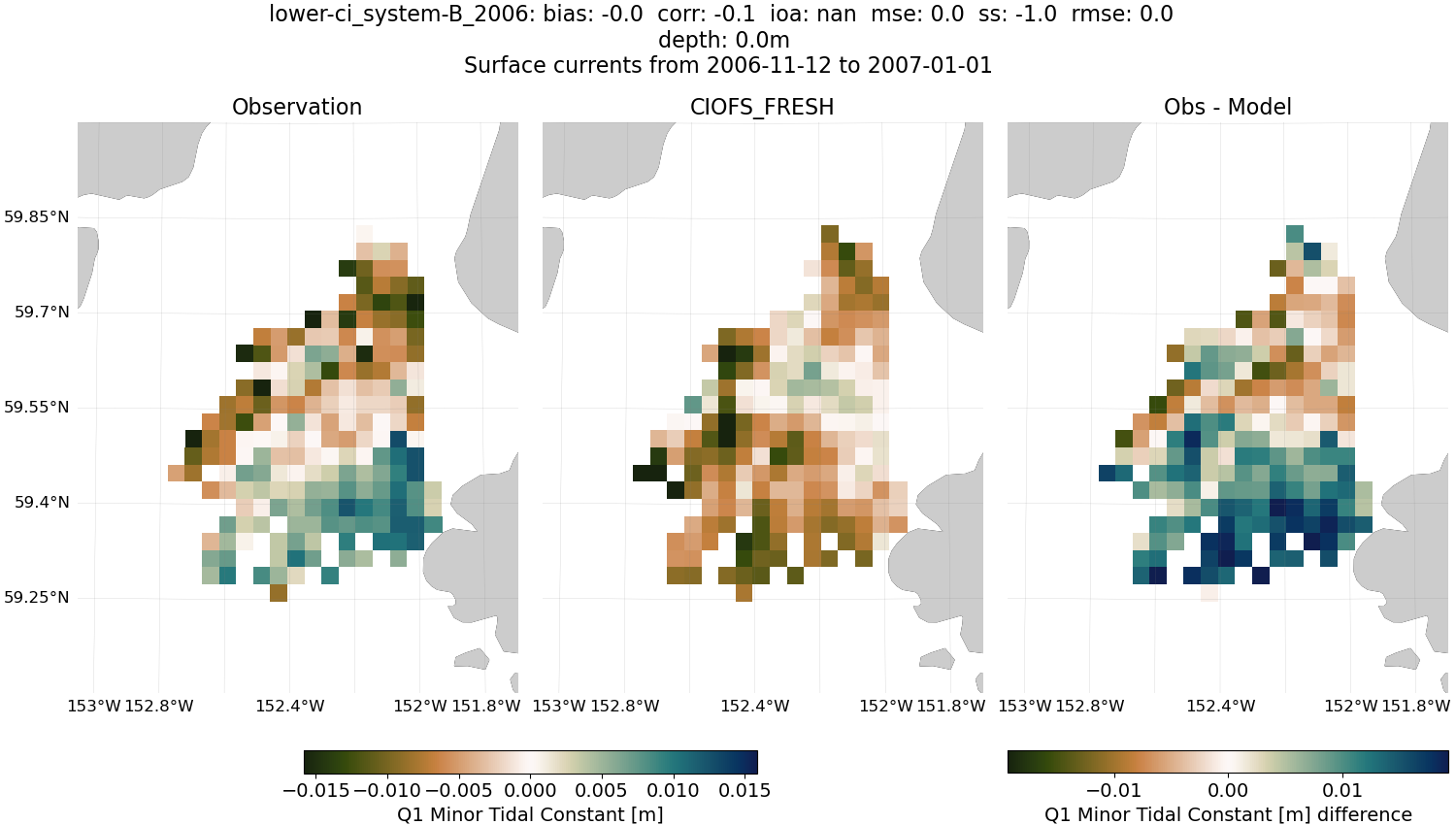

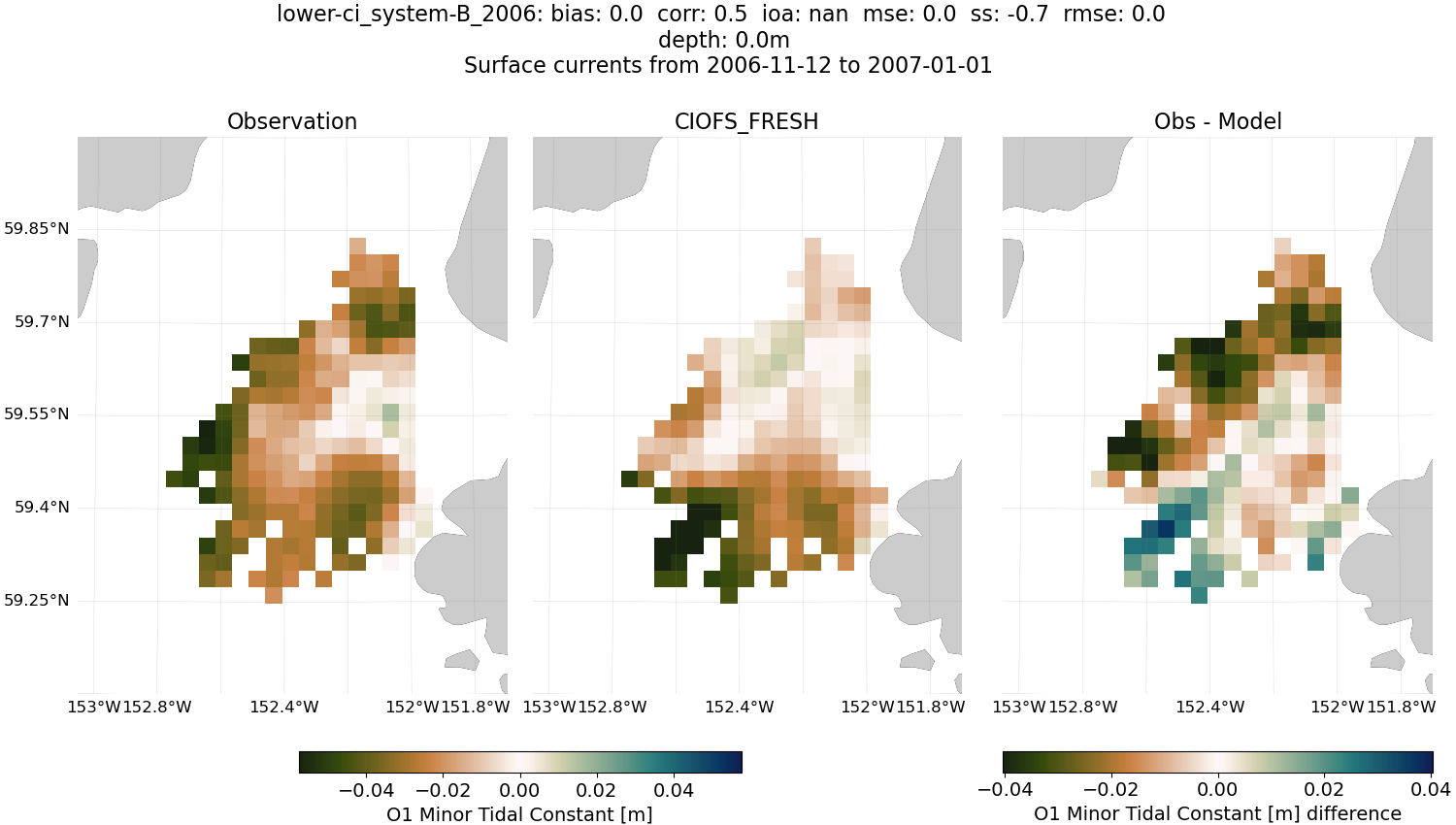

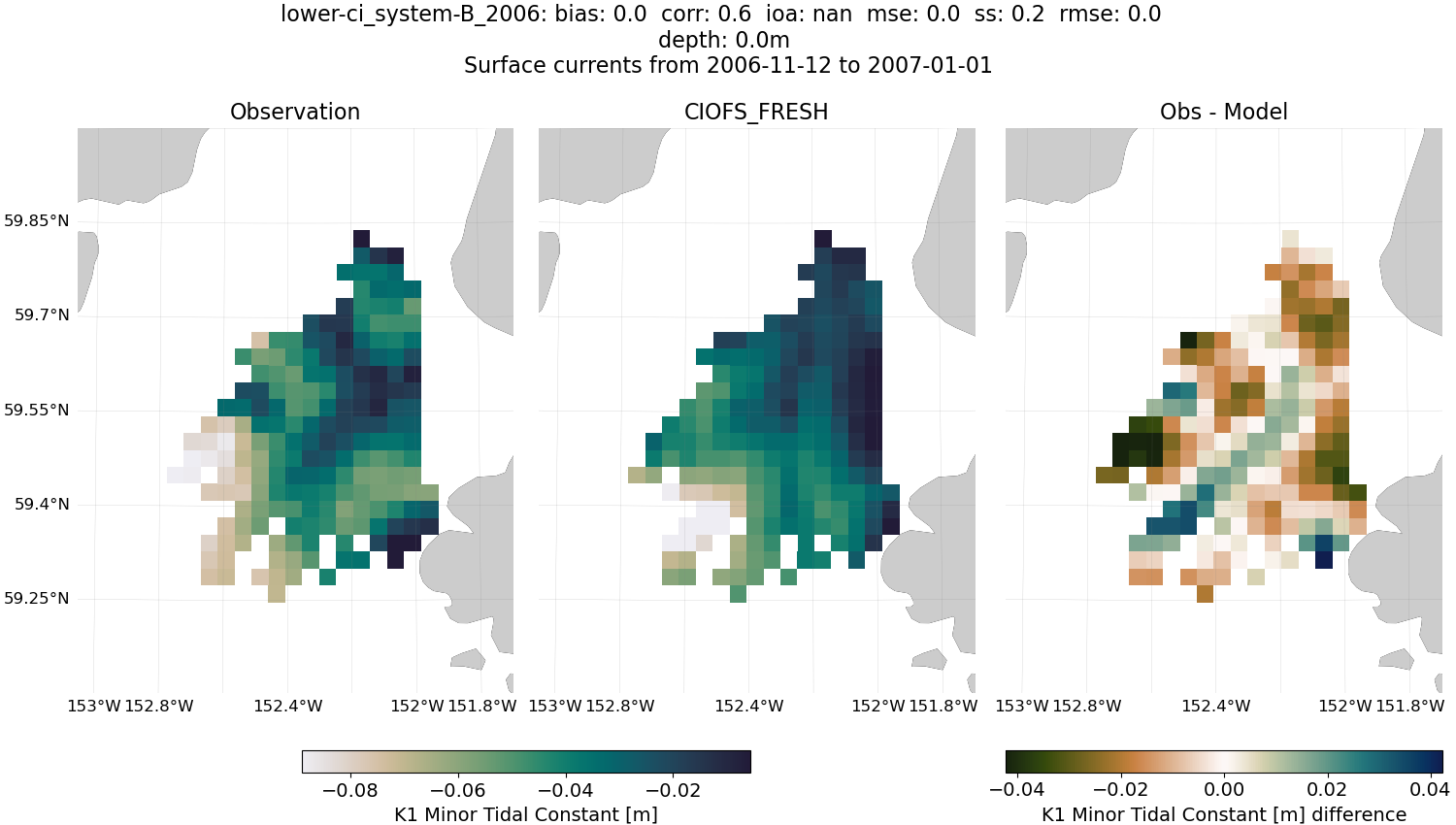

Minor Amplitude

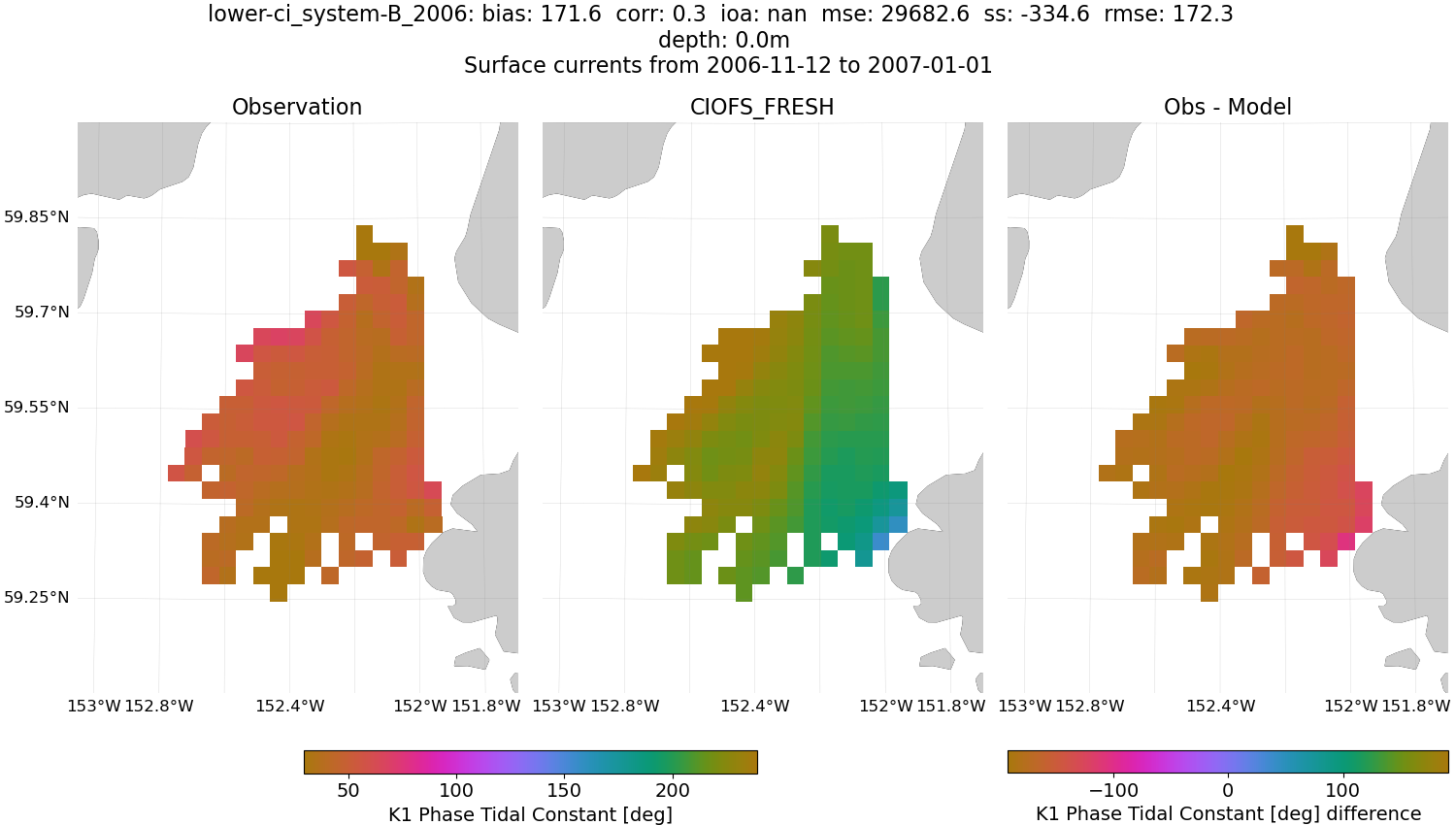

Phase

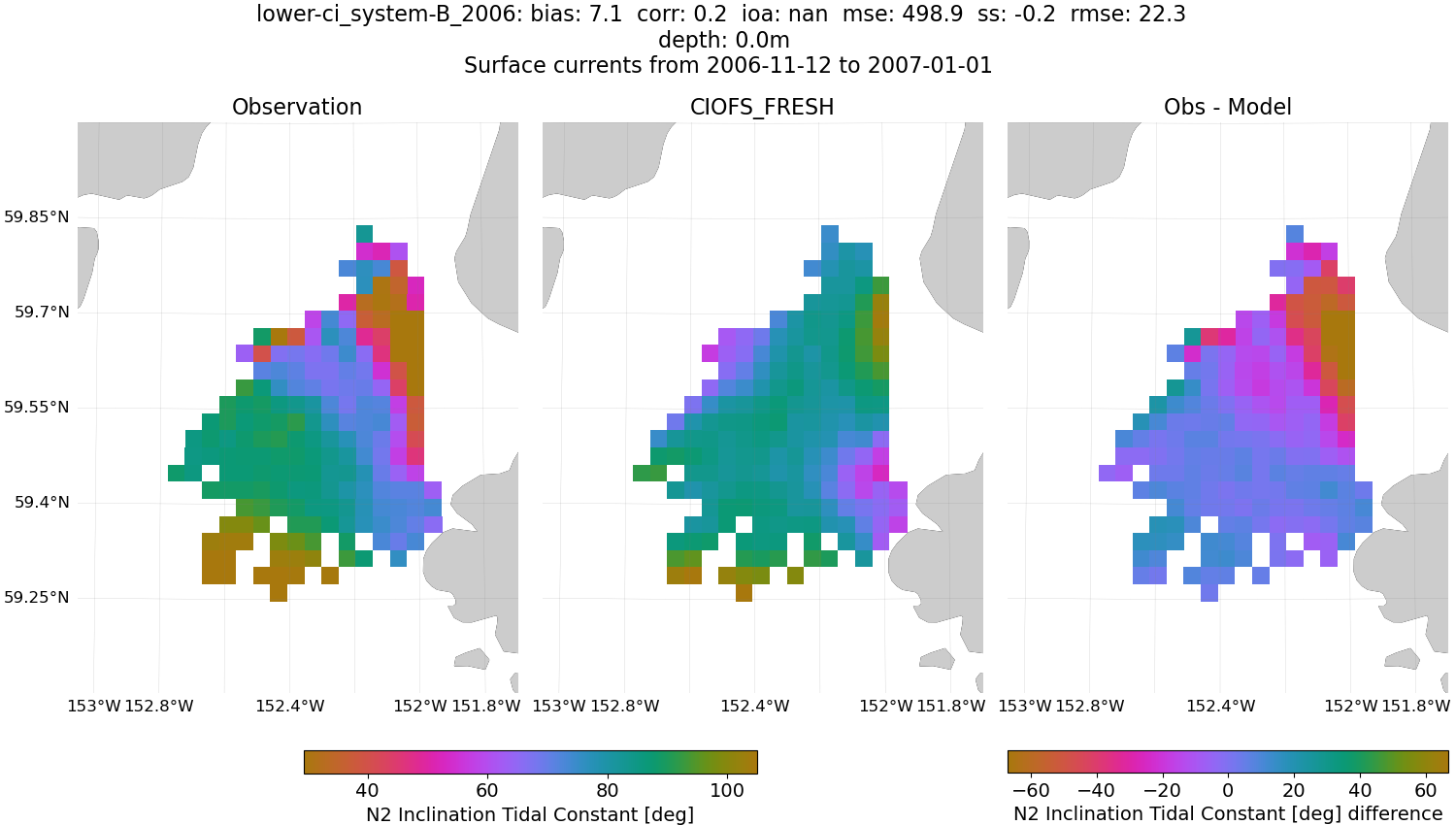

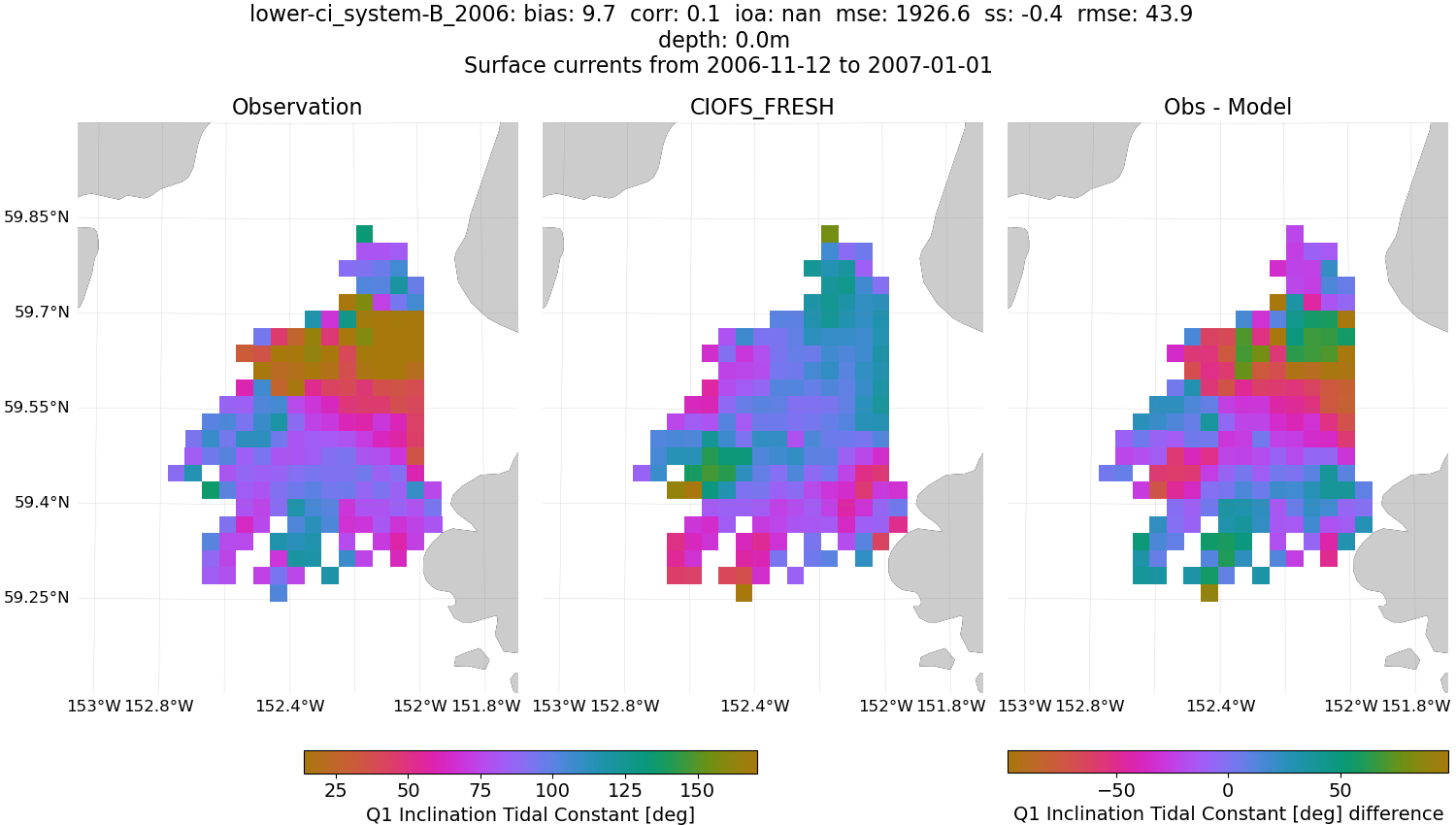

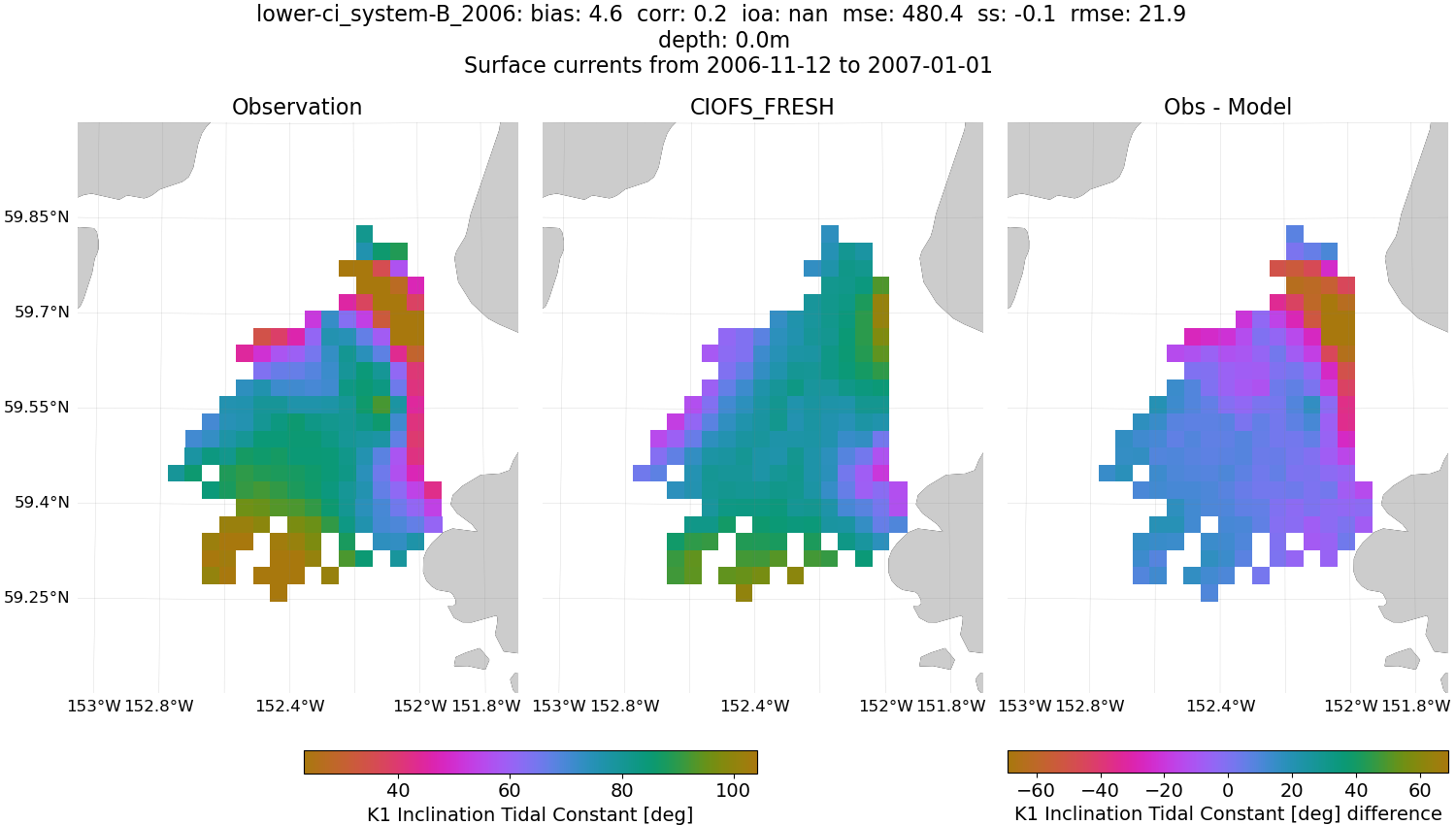

Inclination

upper-ci_system-A_2003

Tidal Constants

CIOFS_HINDCAST

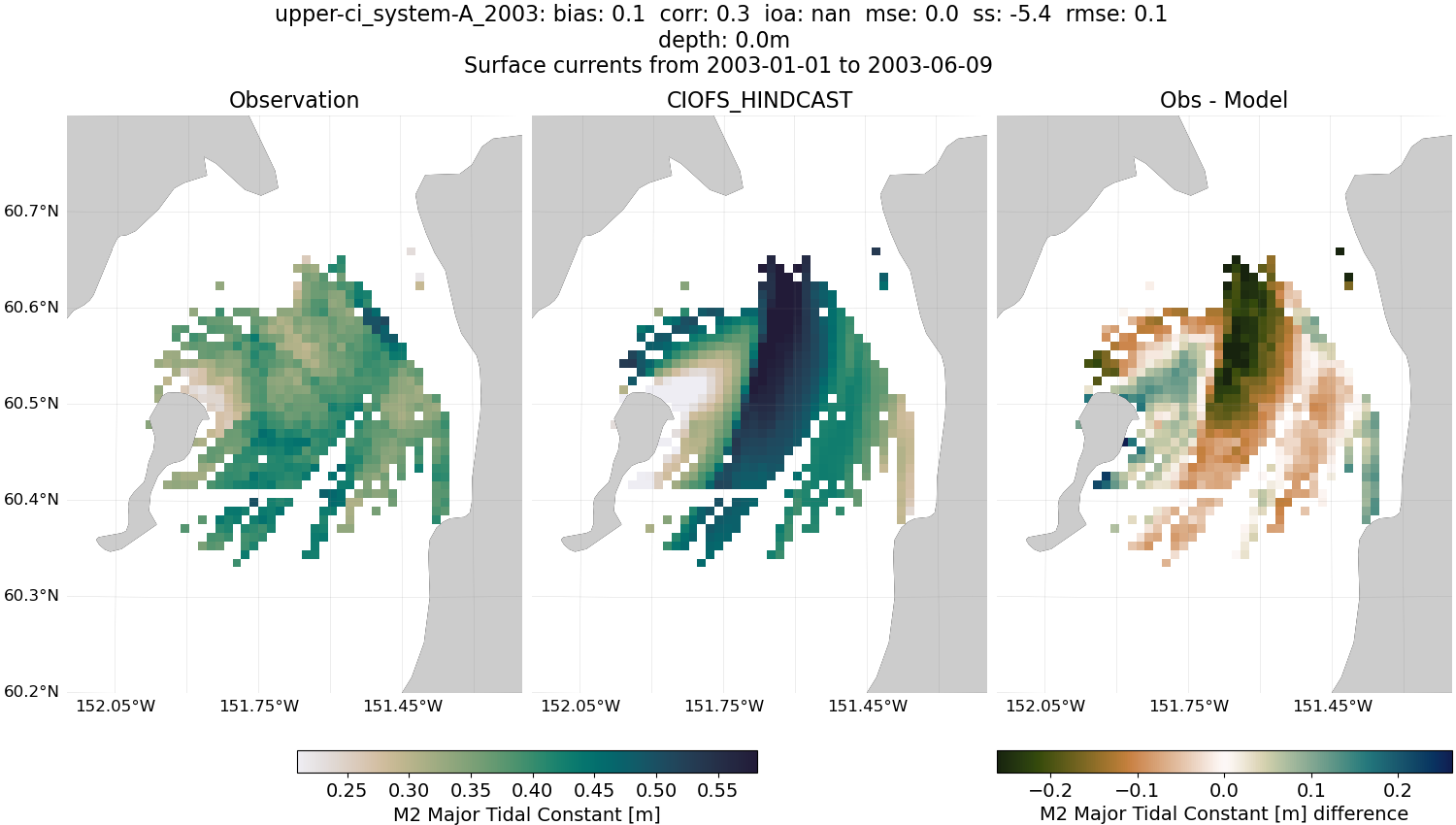

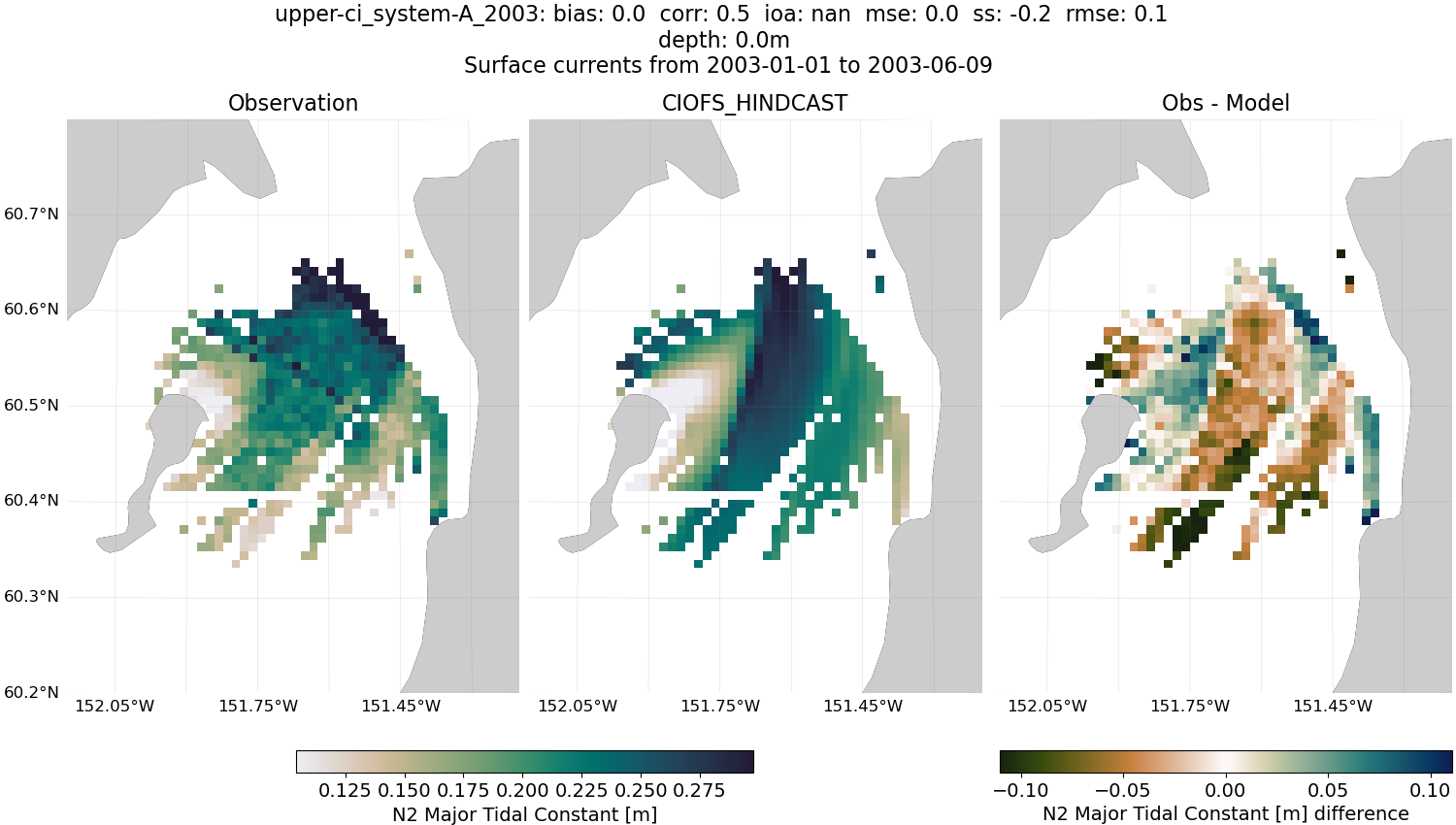

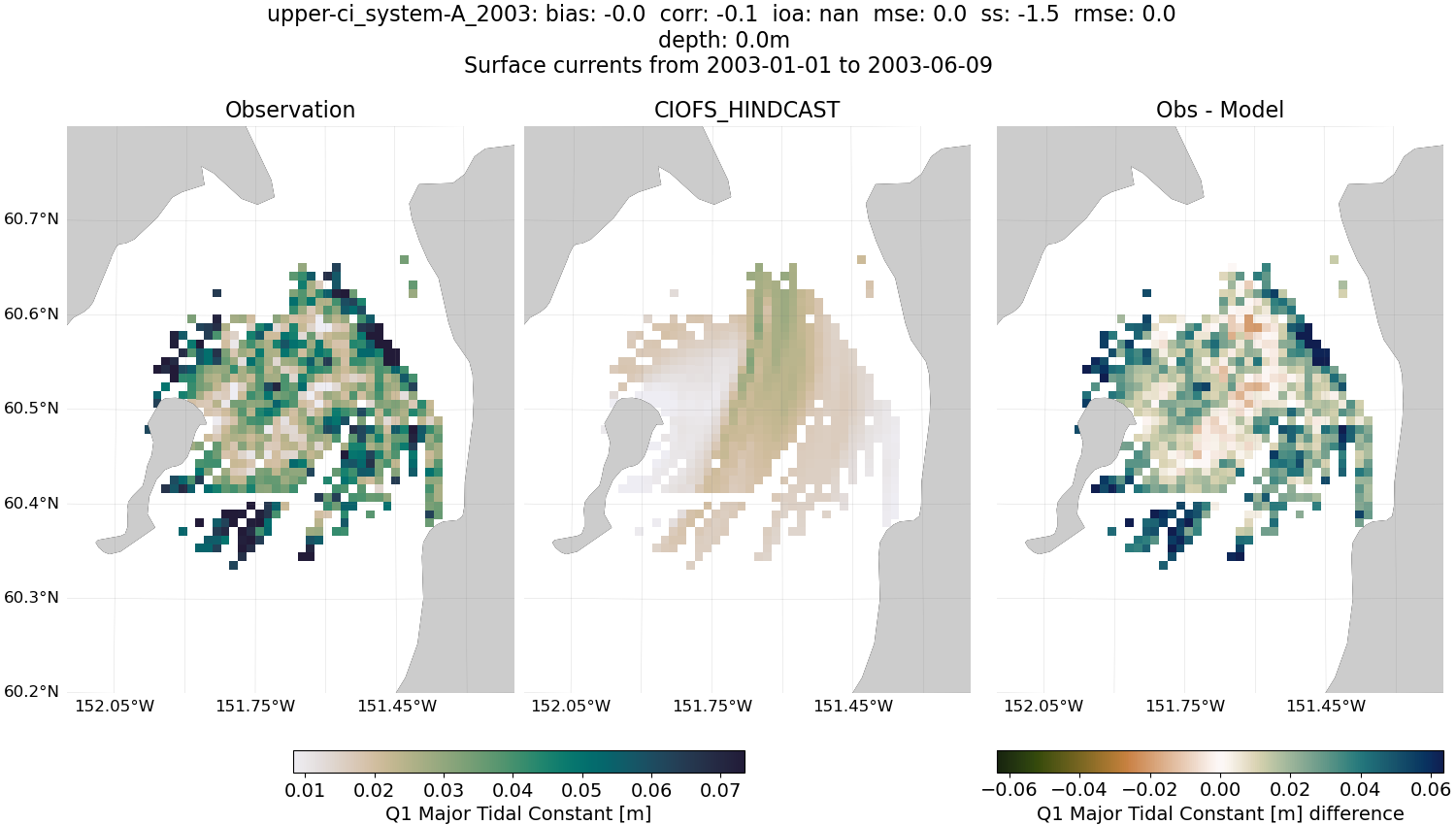

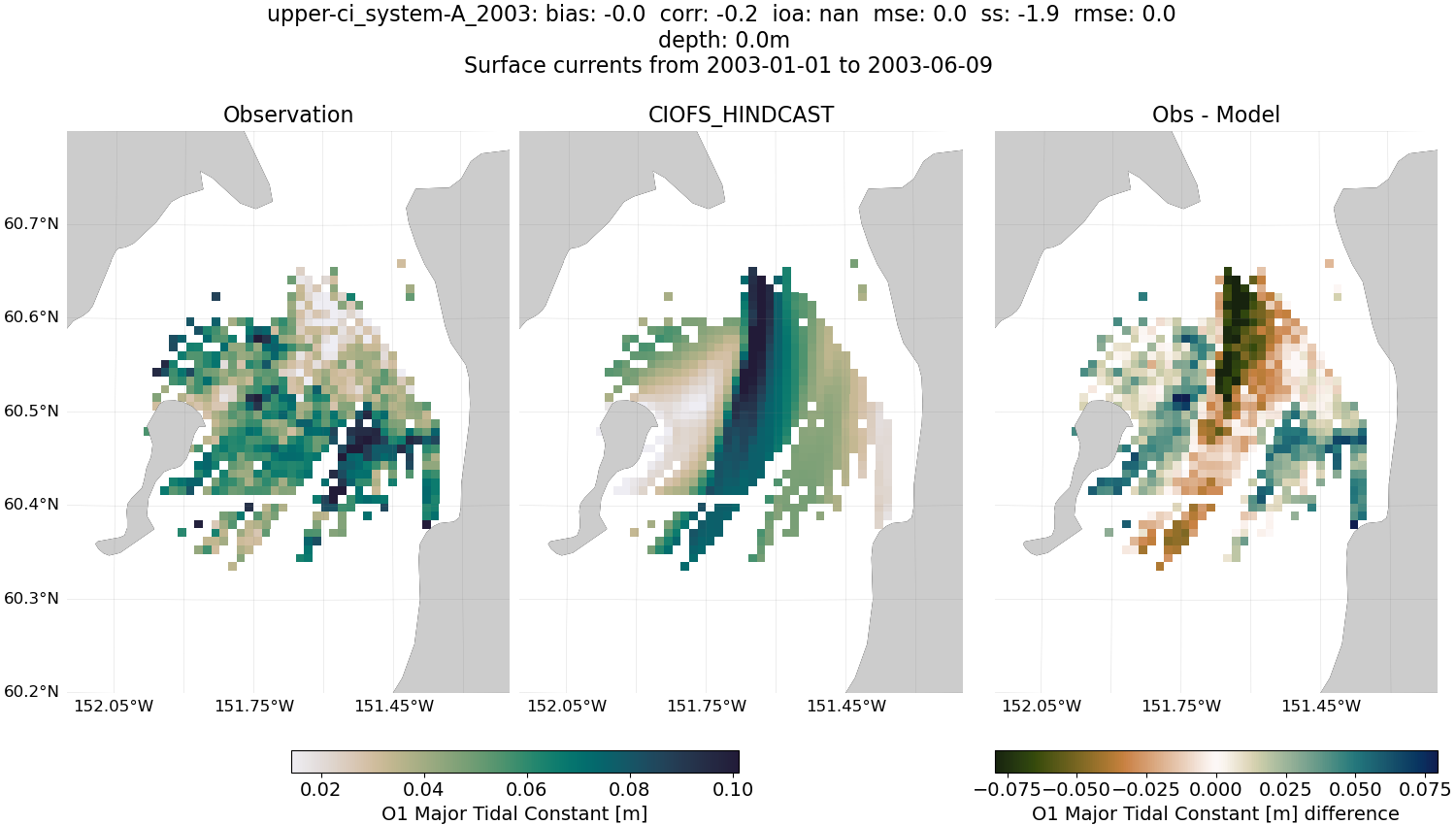

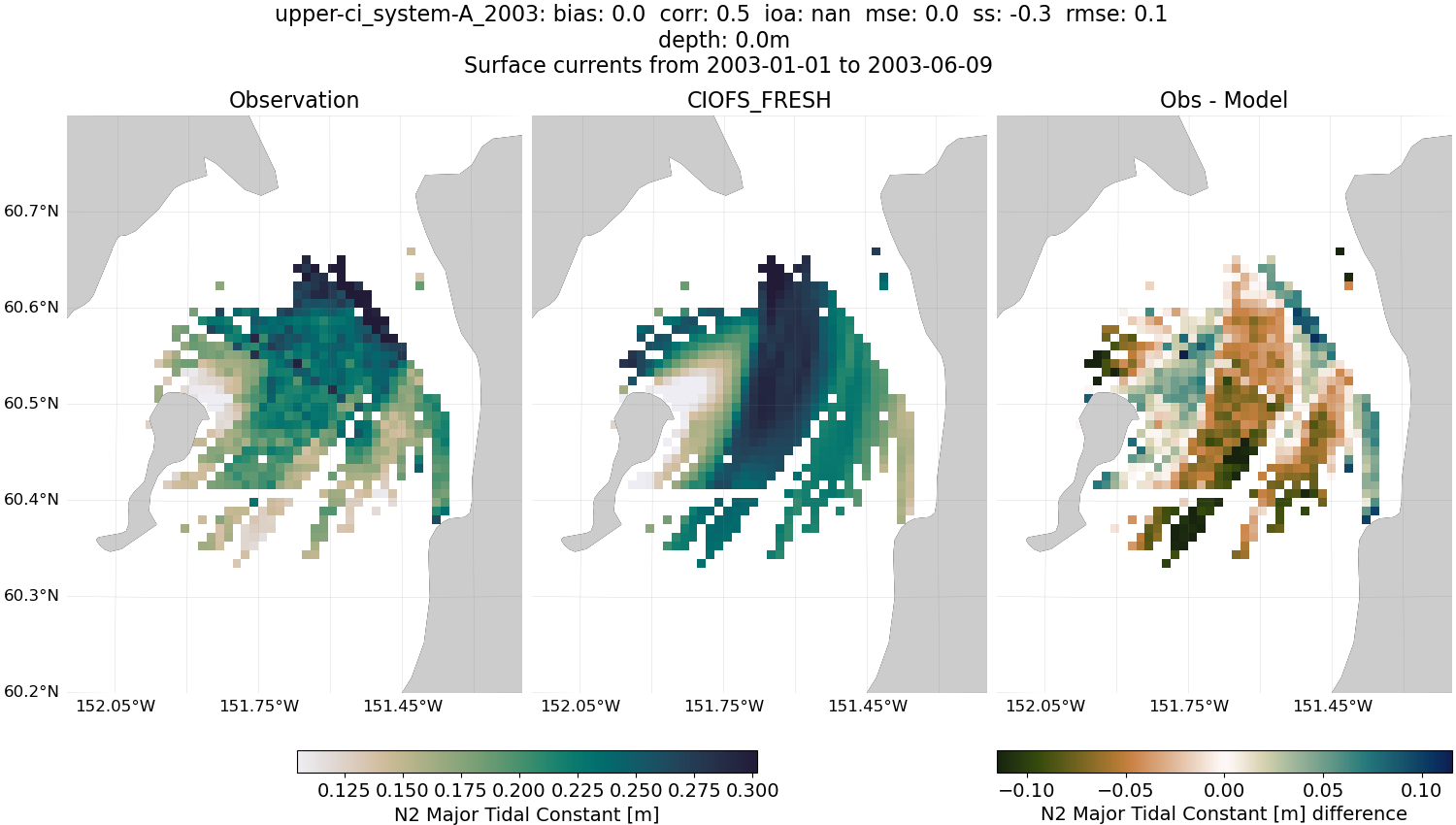

Major Amplitude

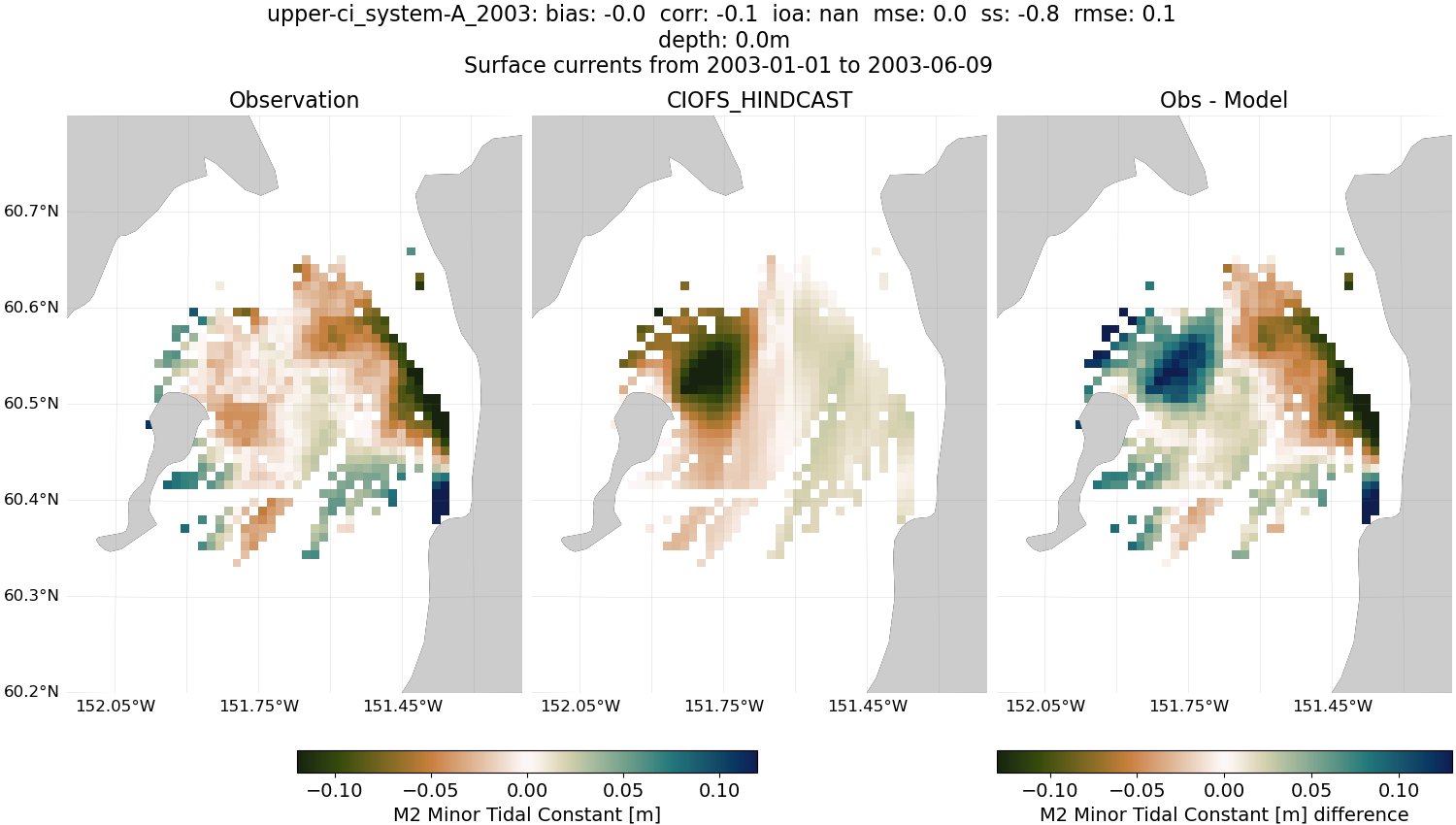

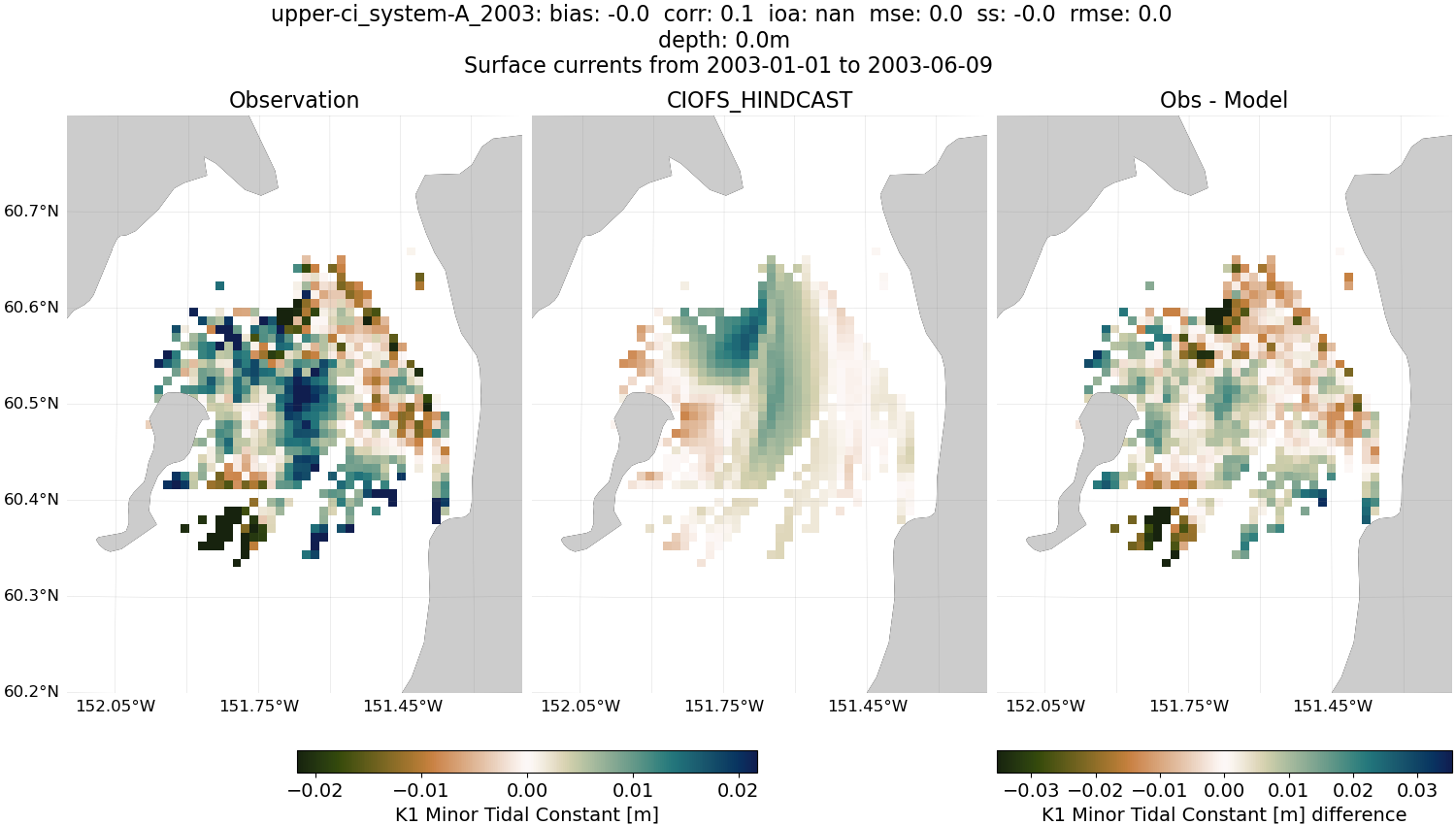

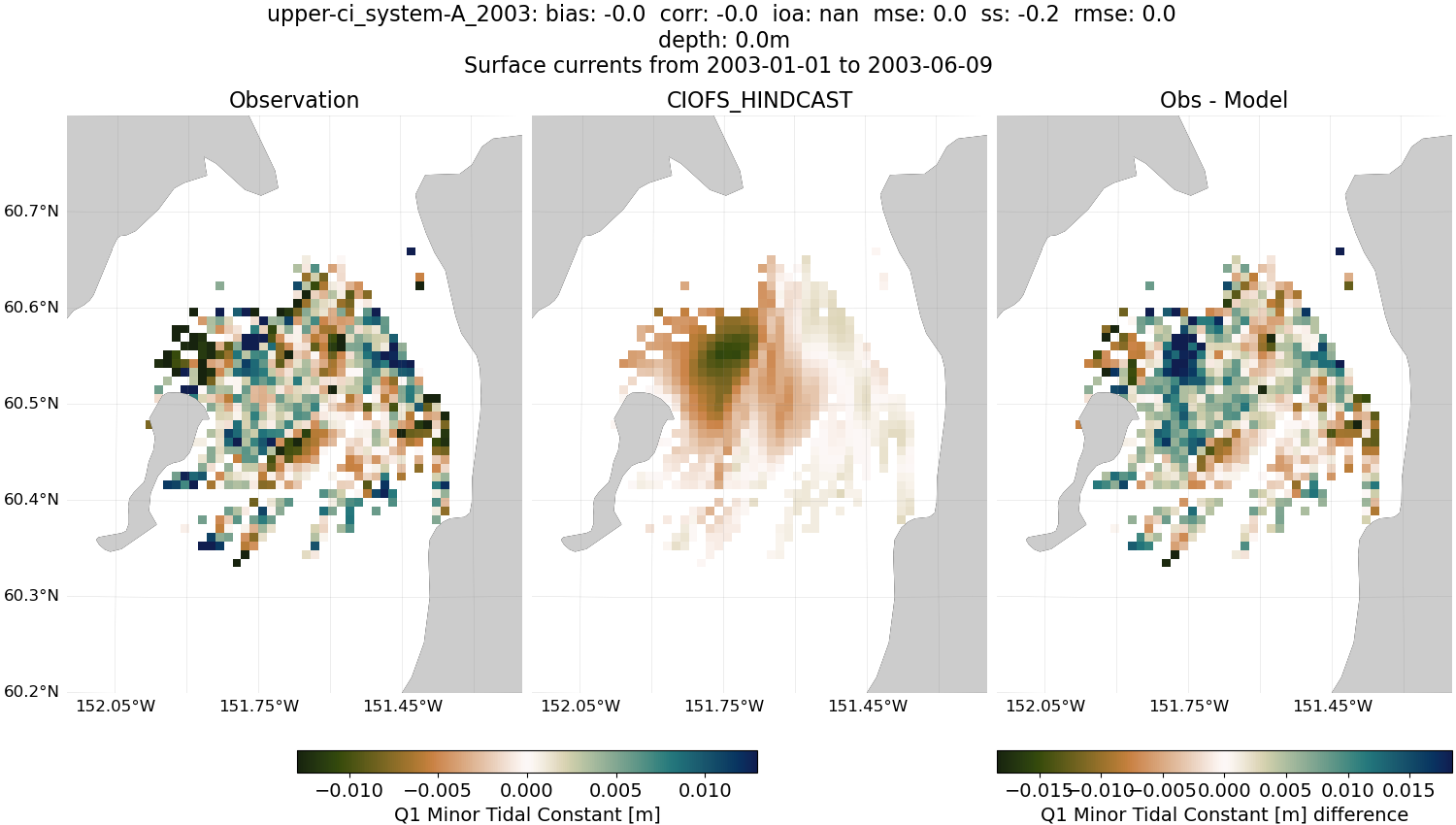

Minor Amplitude

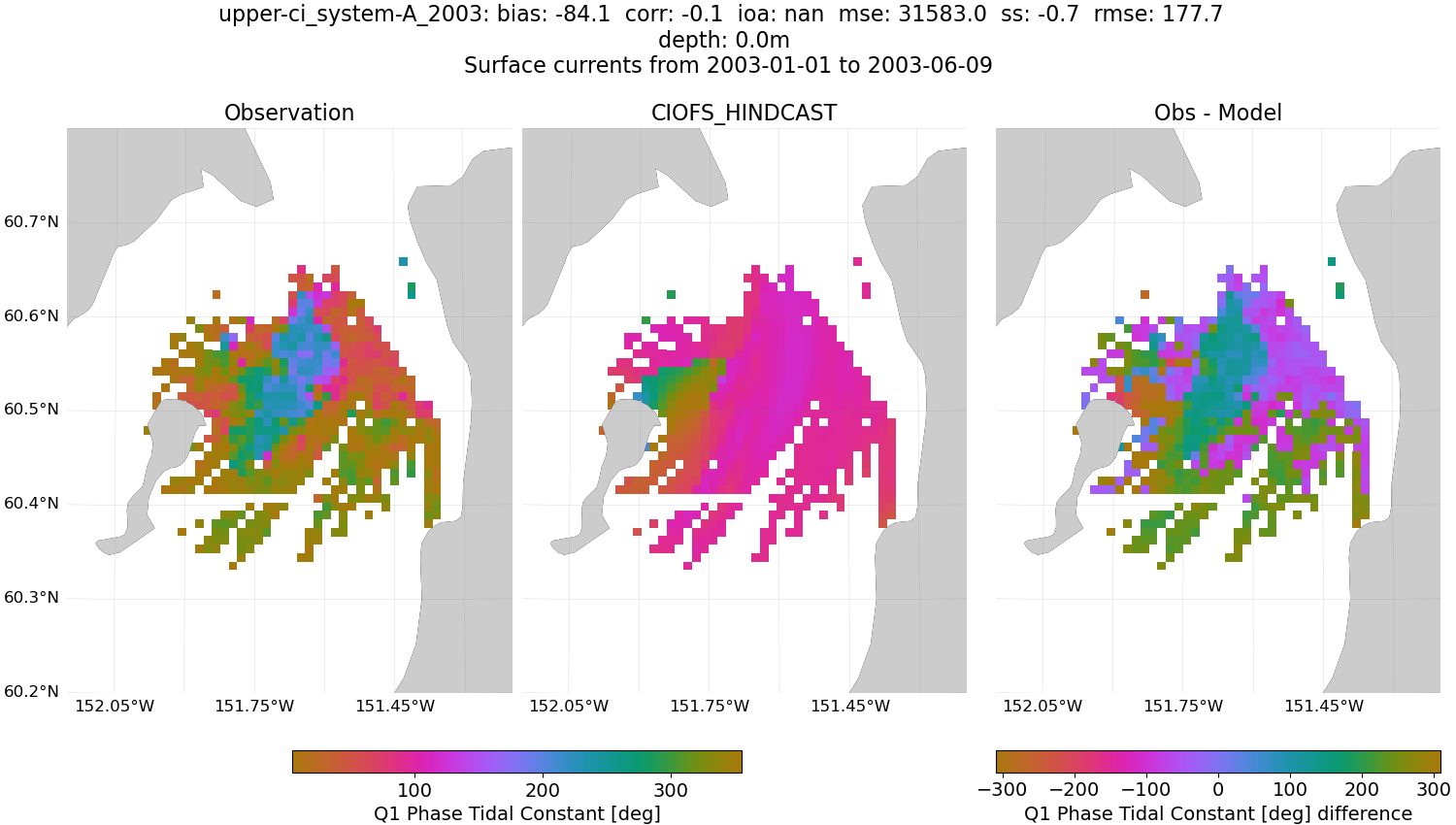

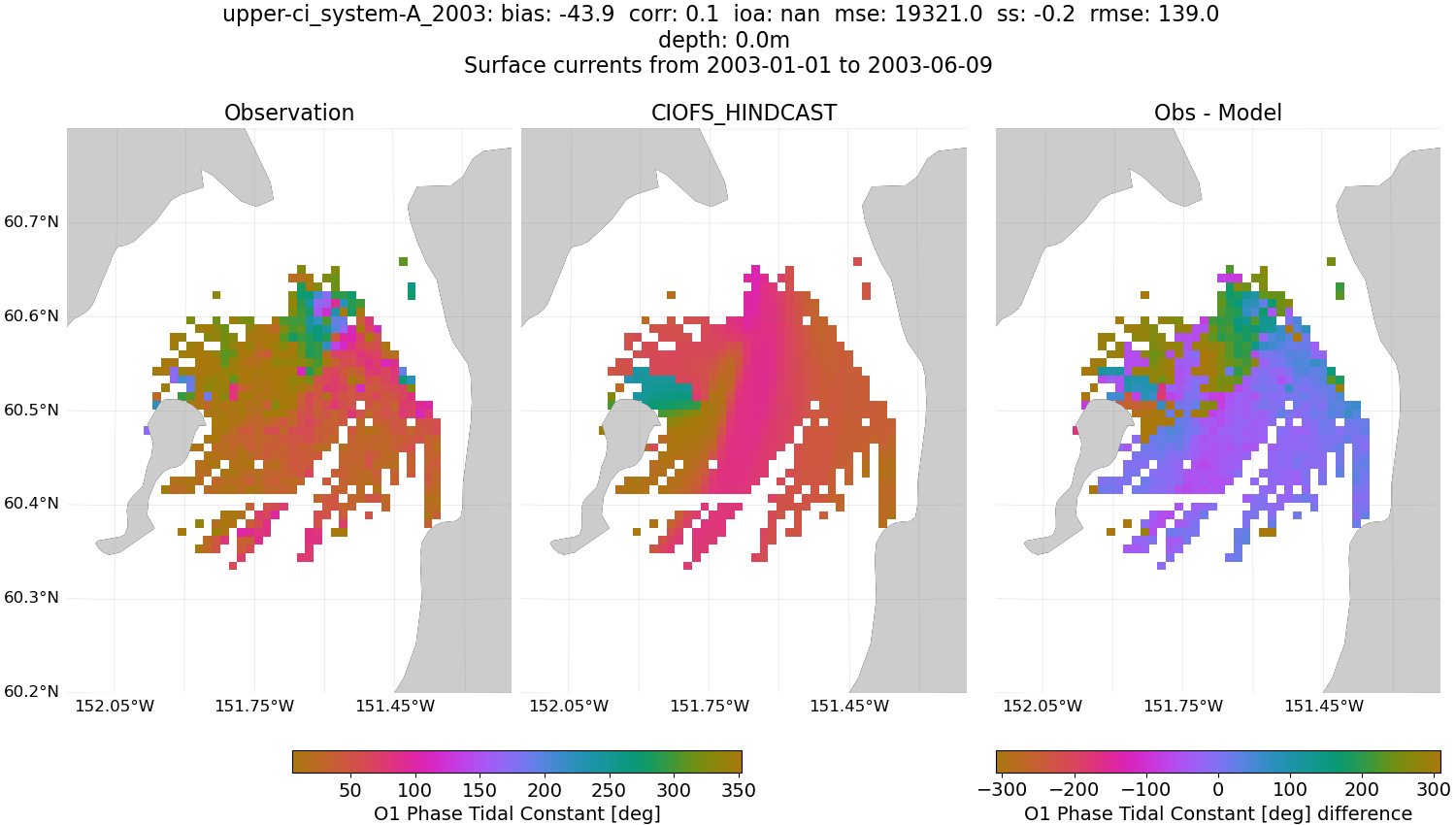

Phase

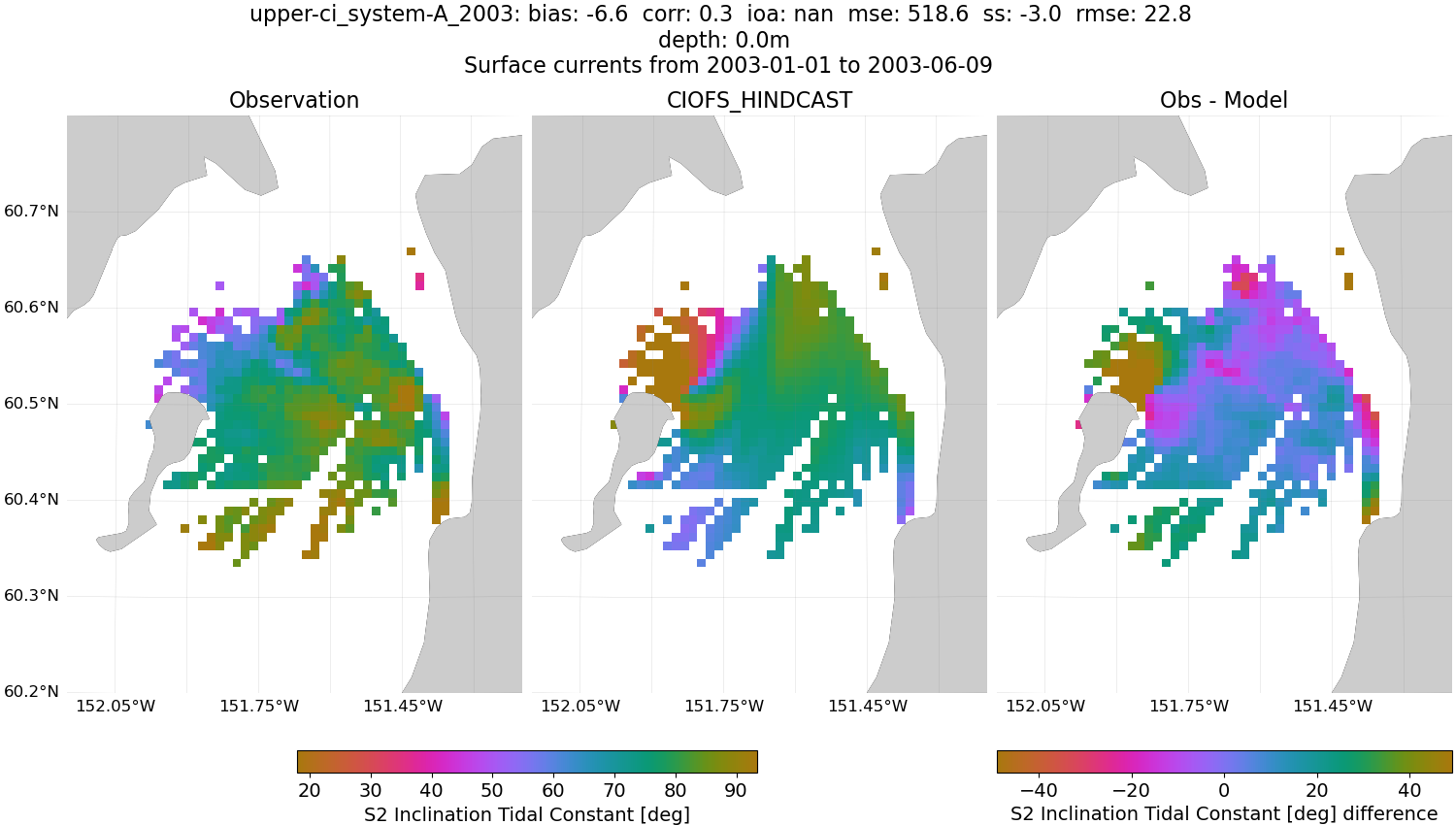

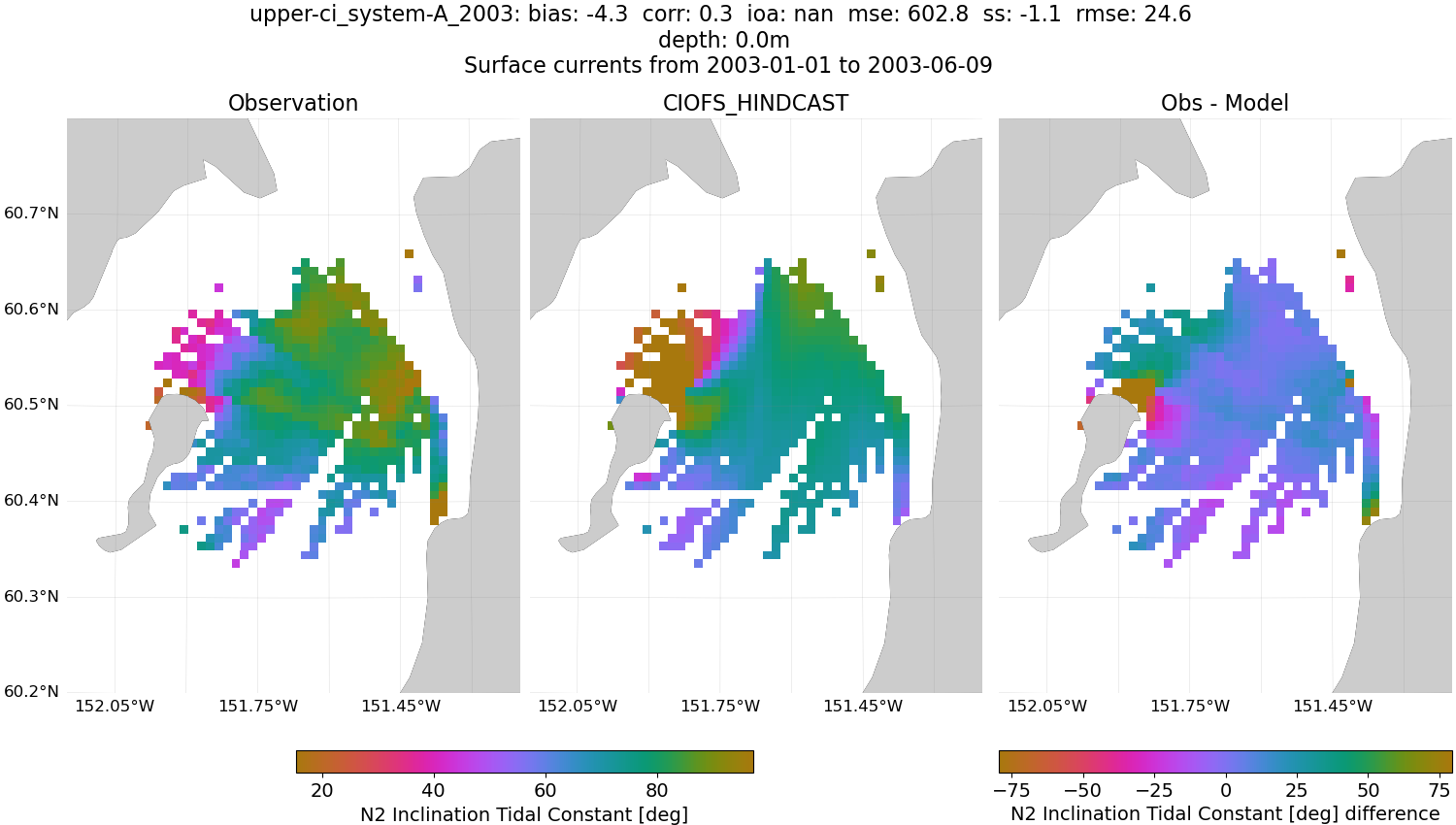

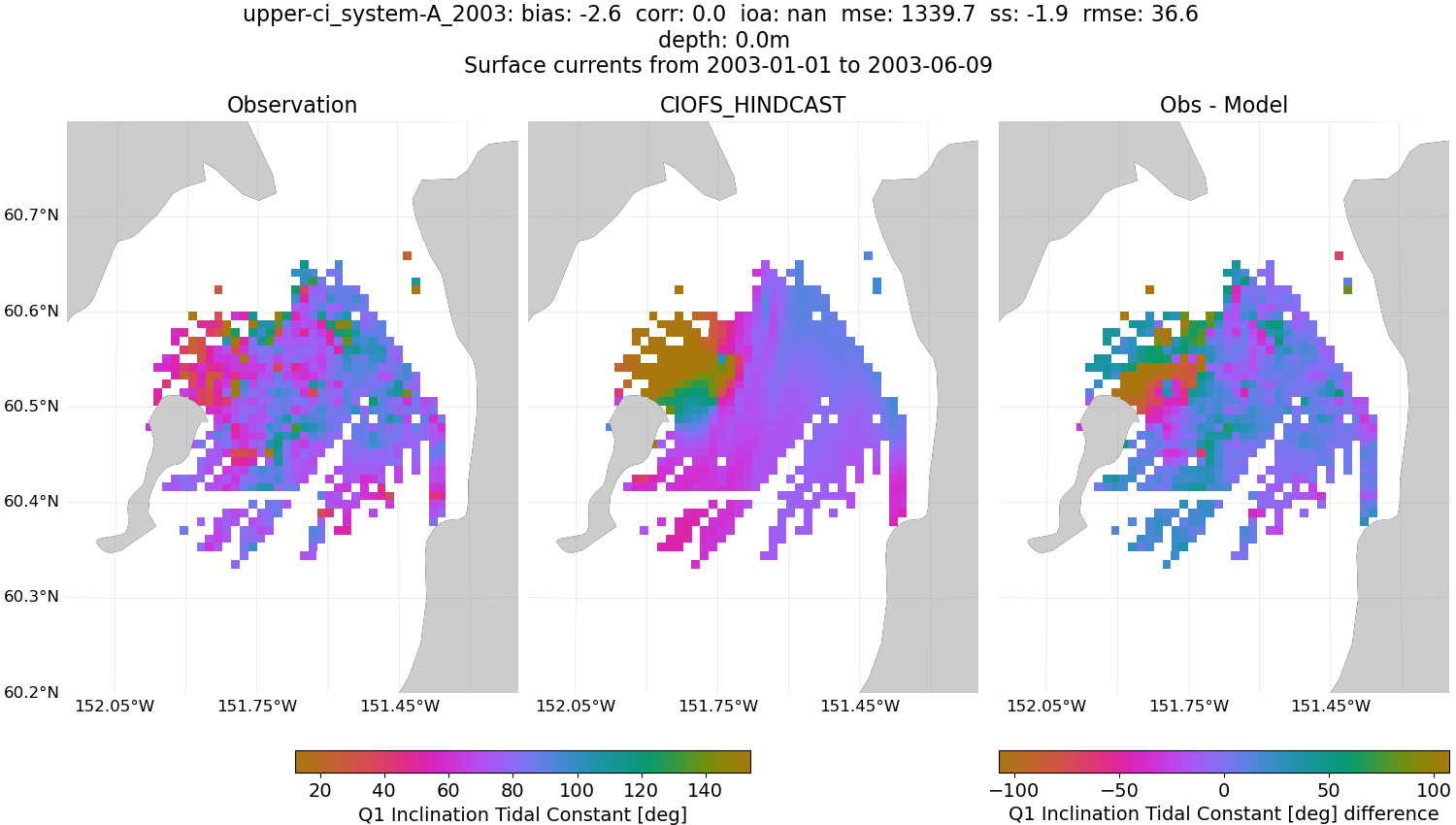

Inclination

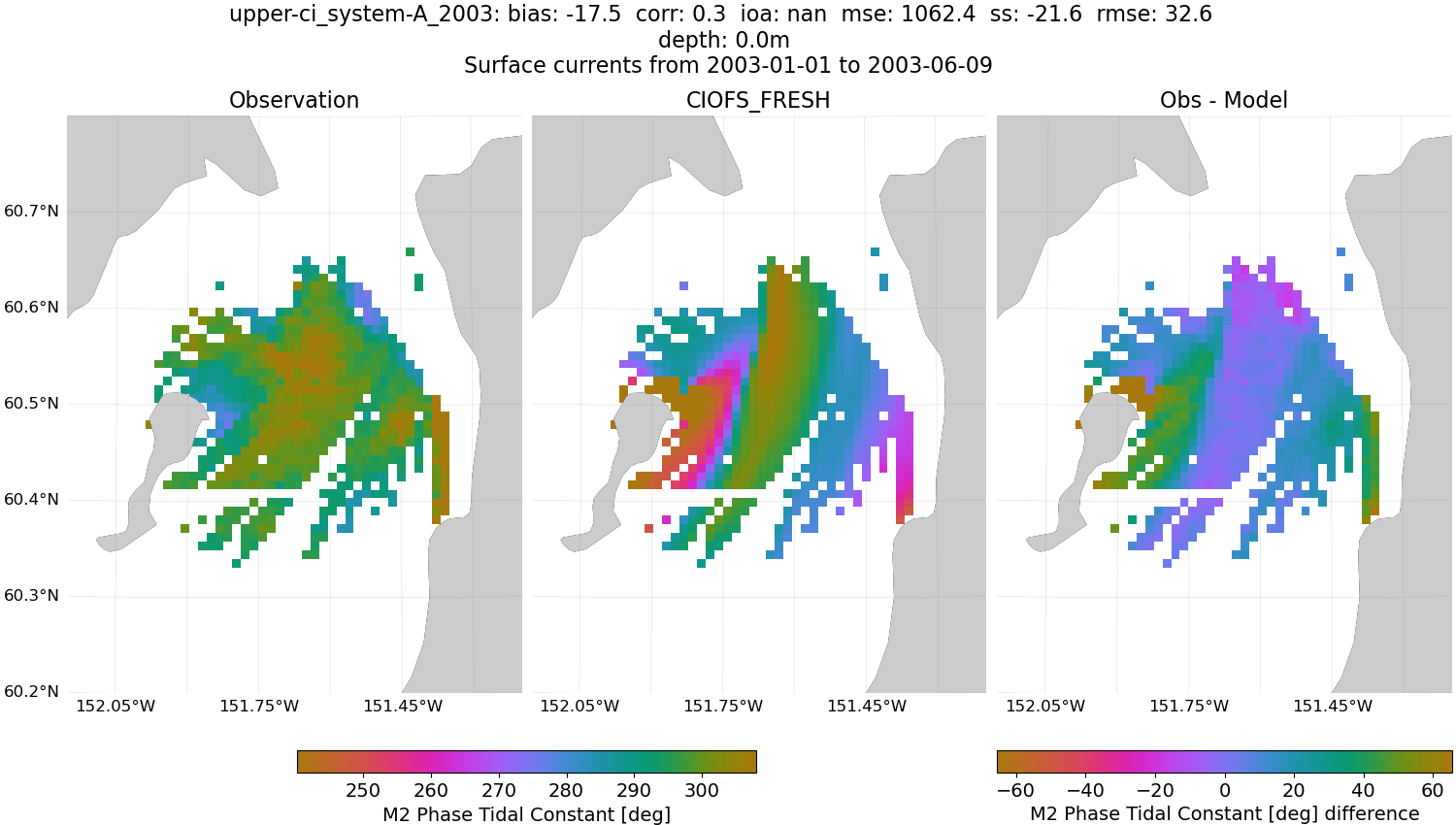

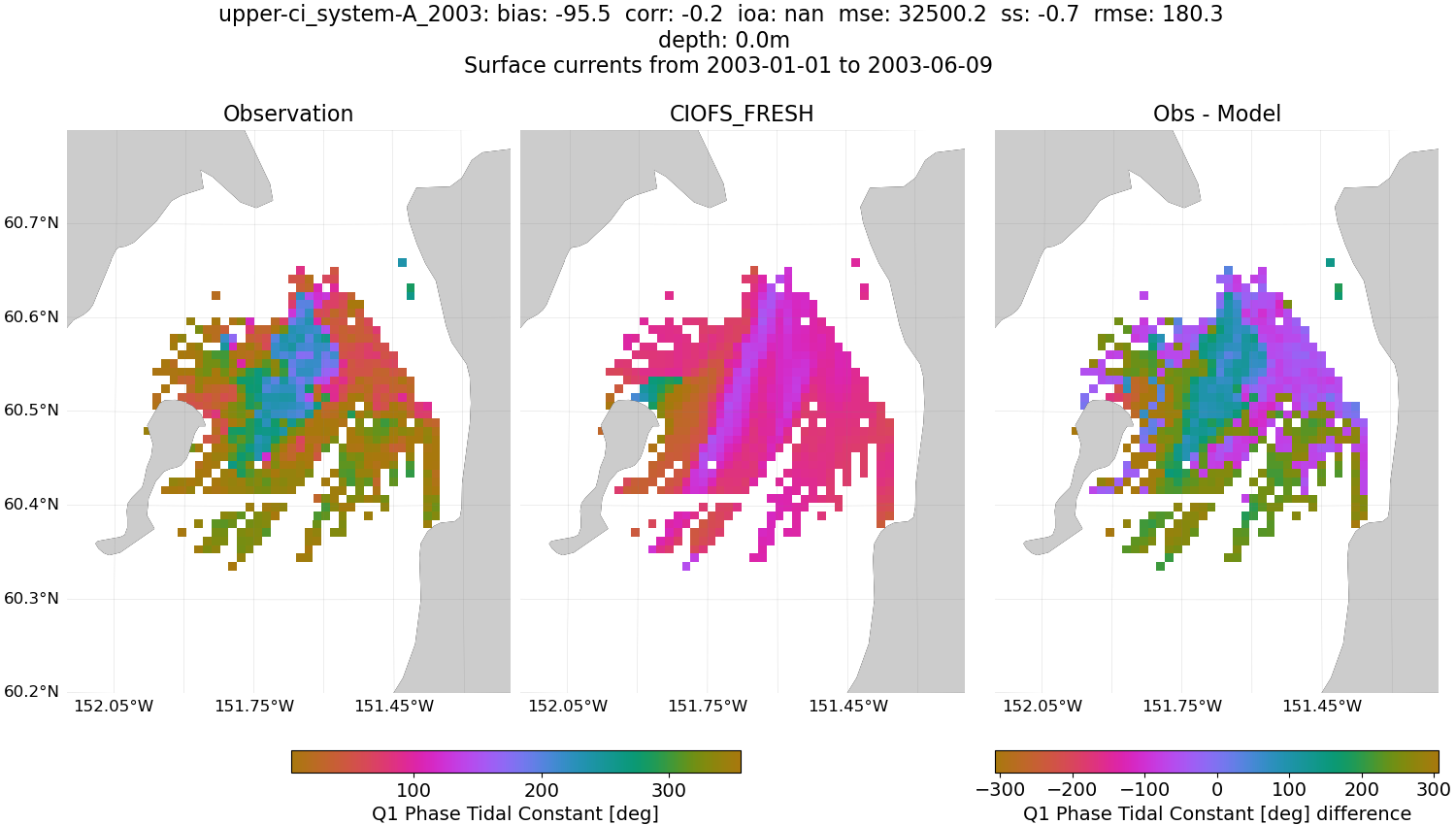

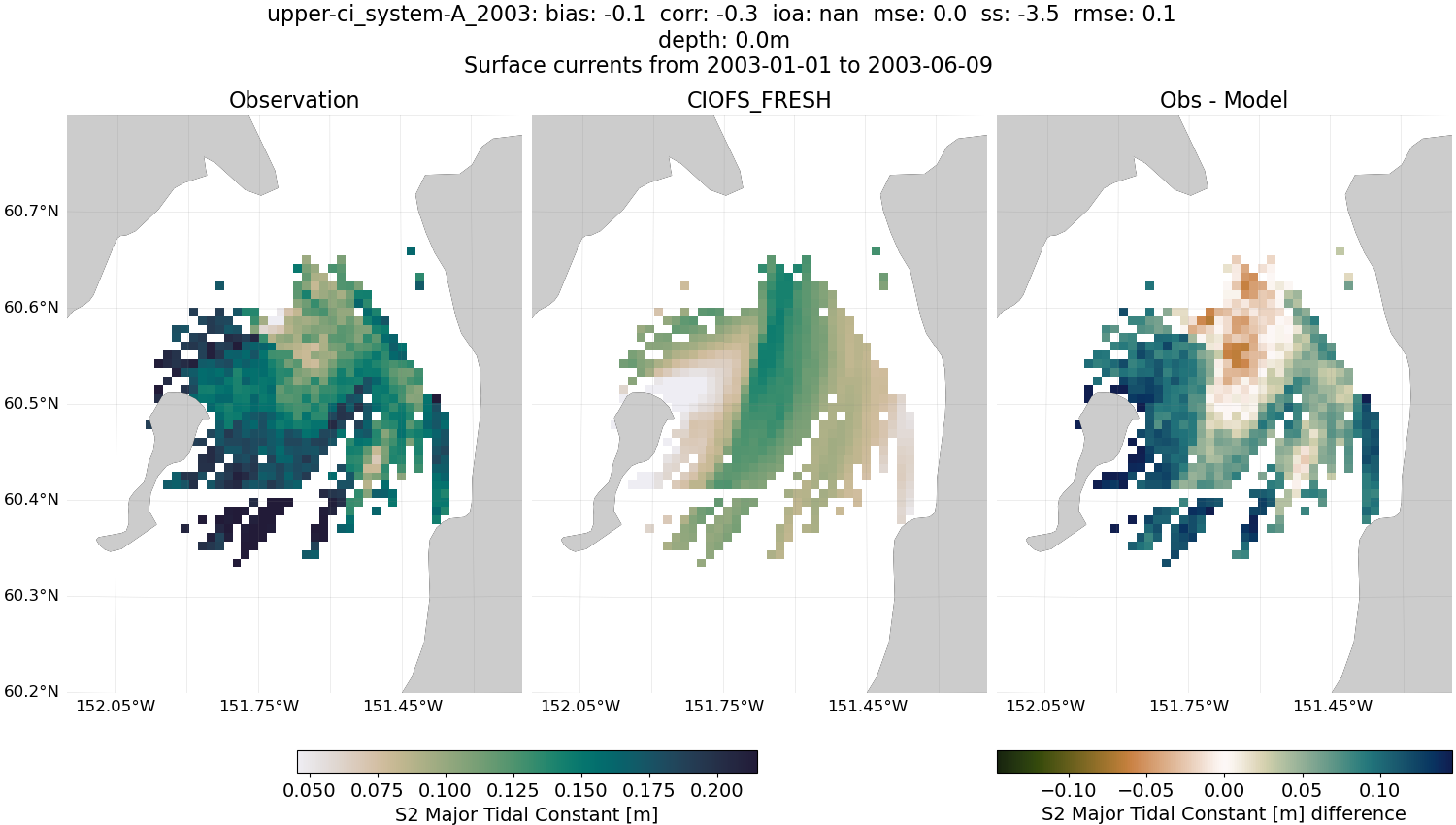

CIOFS_FRESH

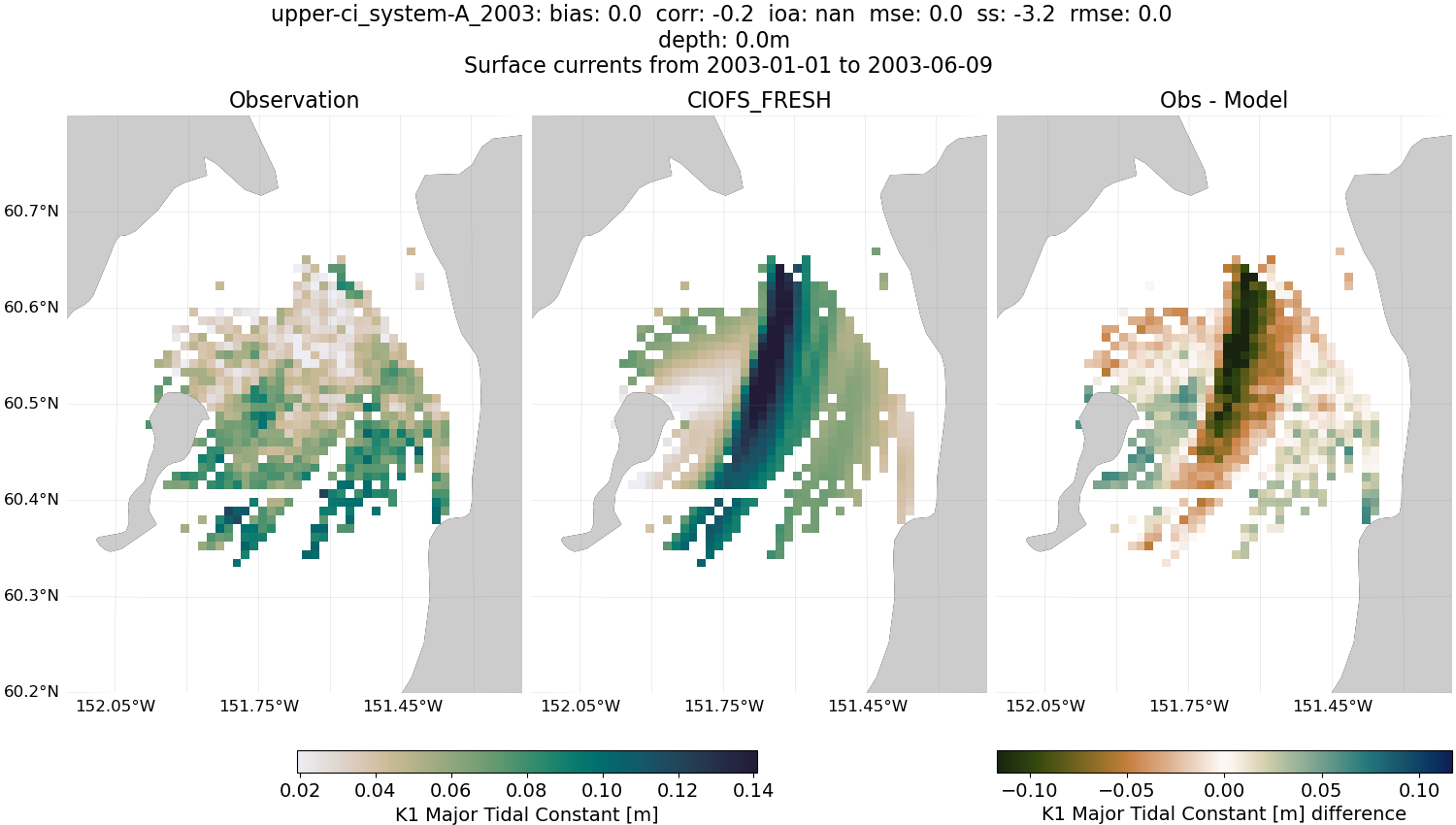

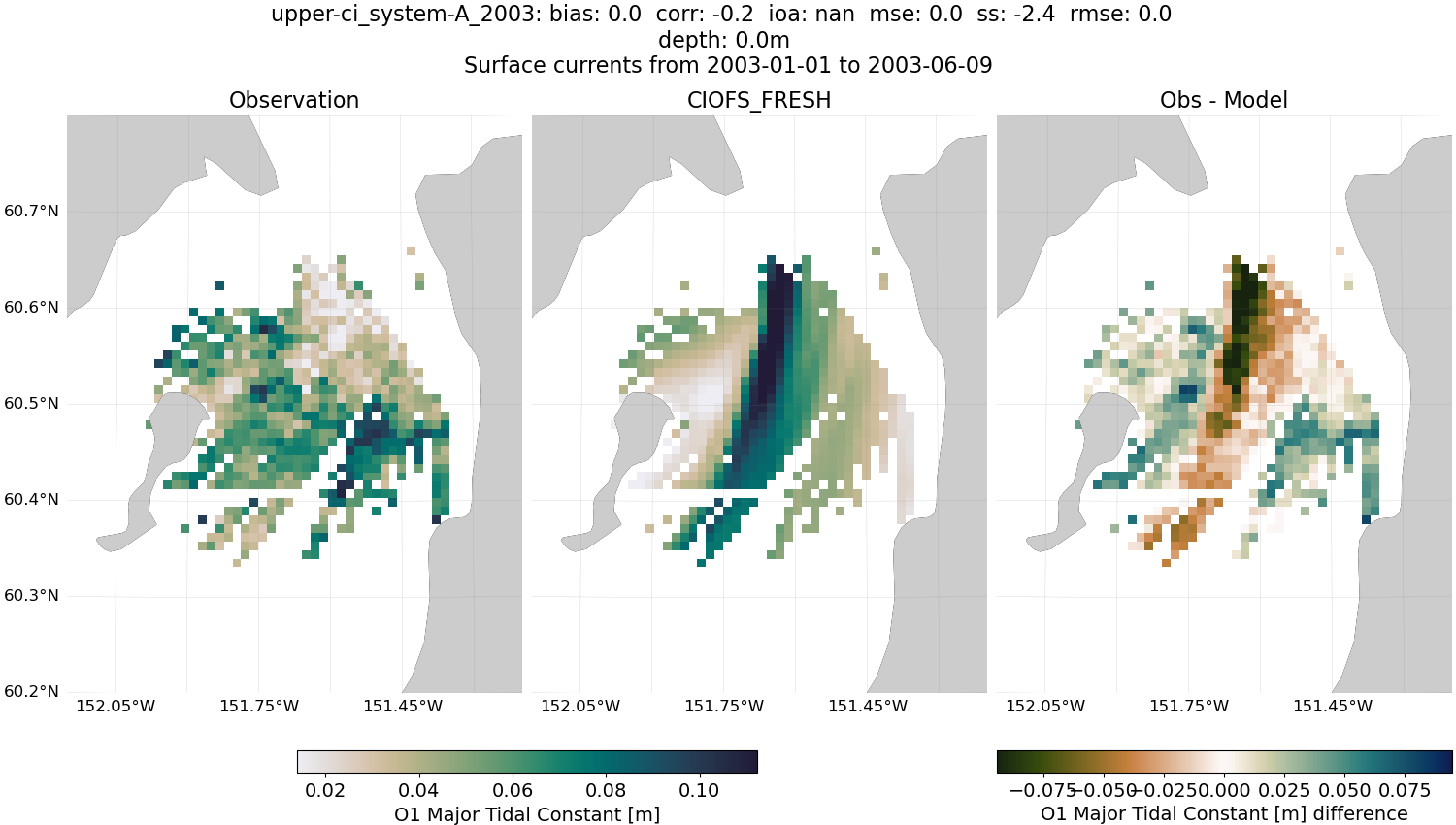

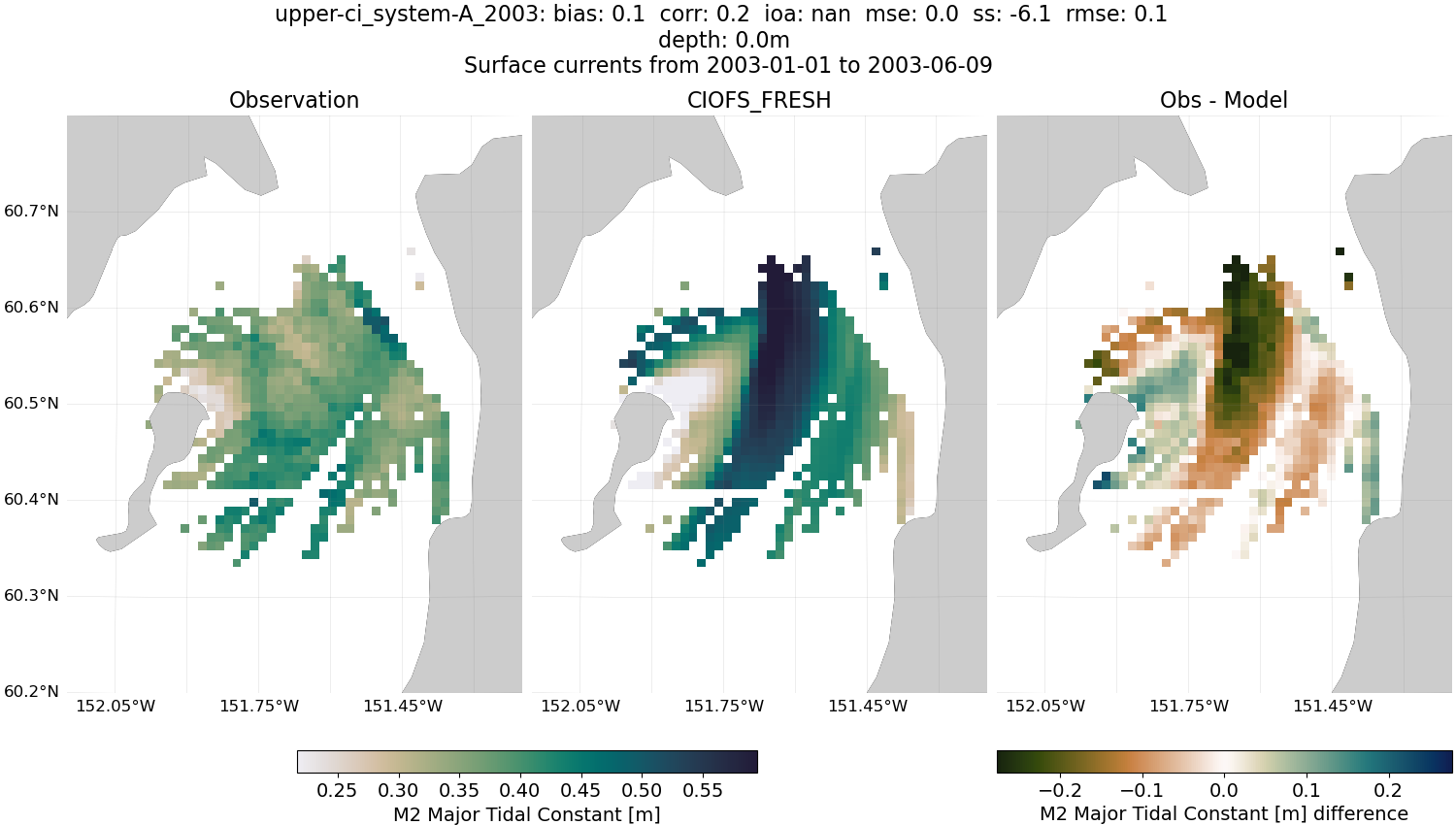

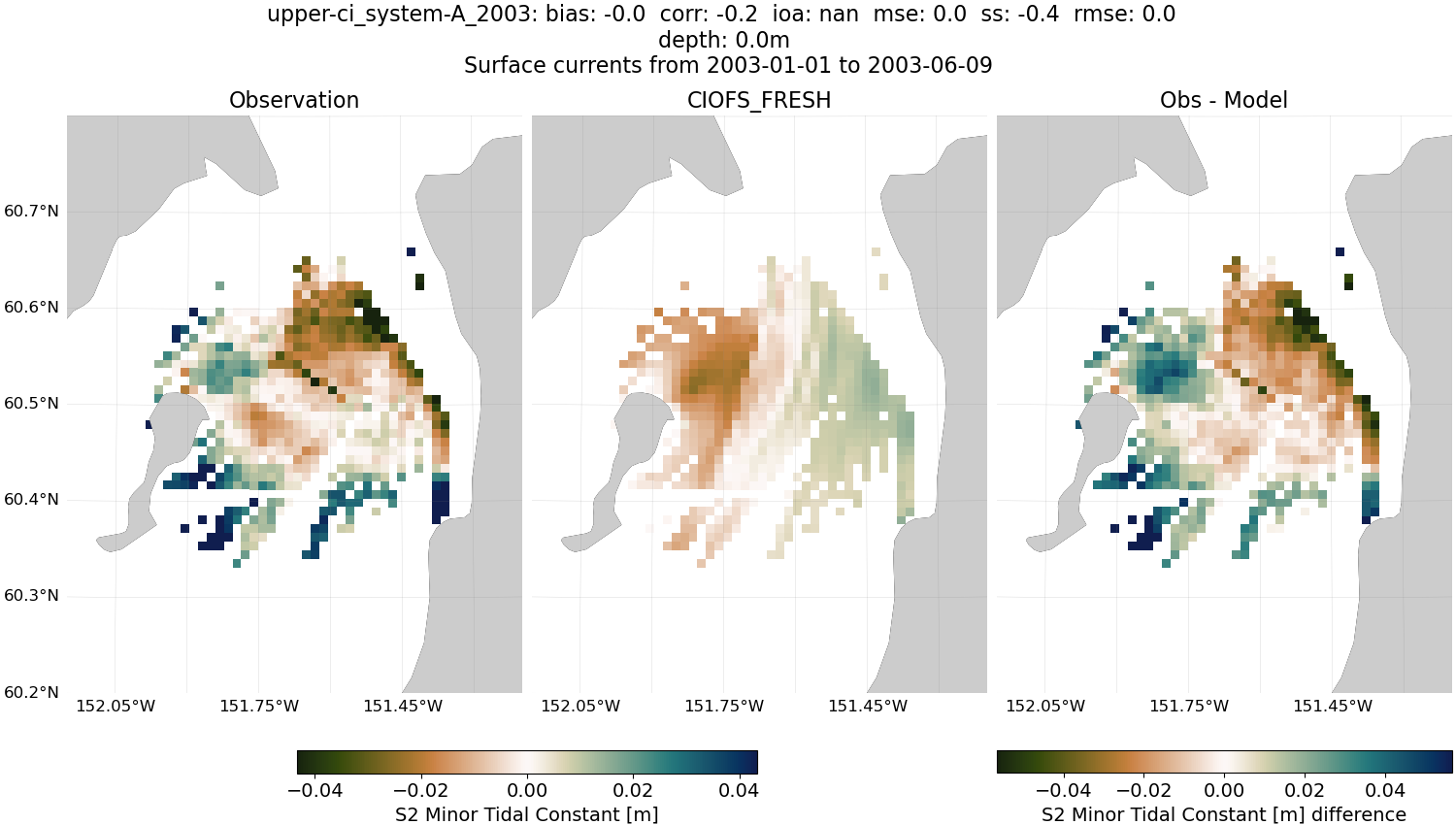

Major Amplitude

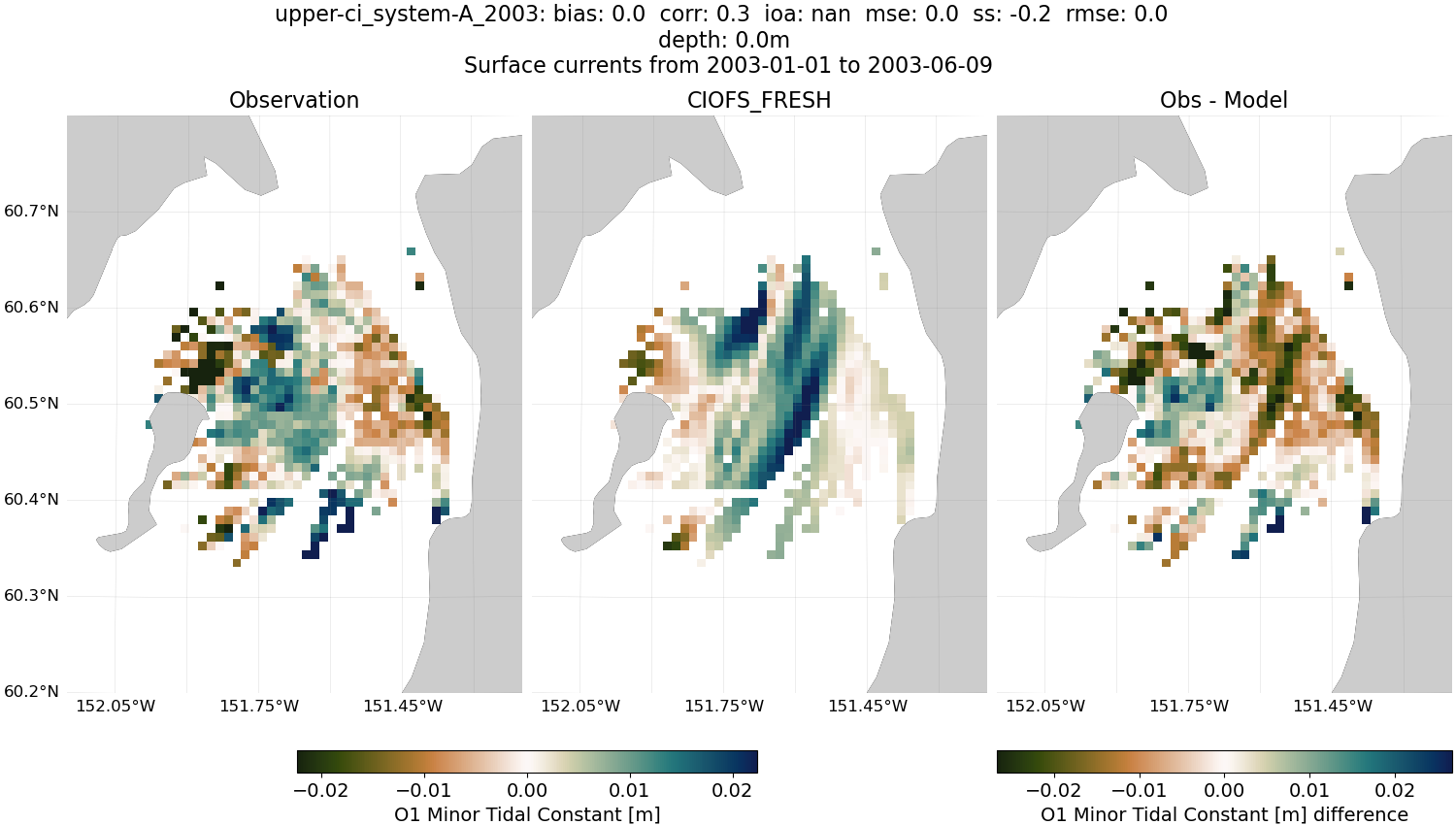

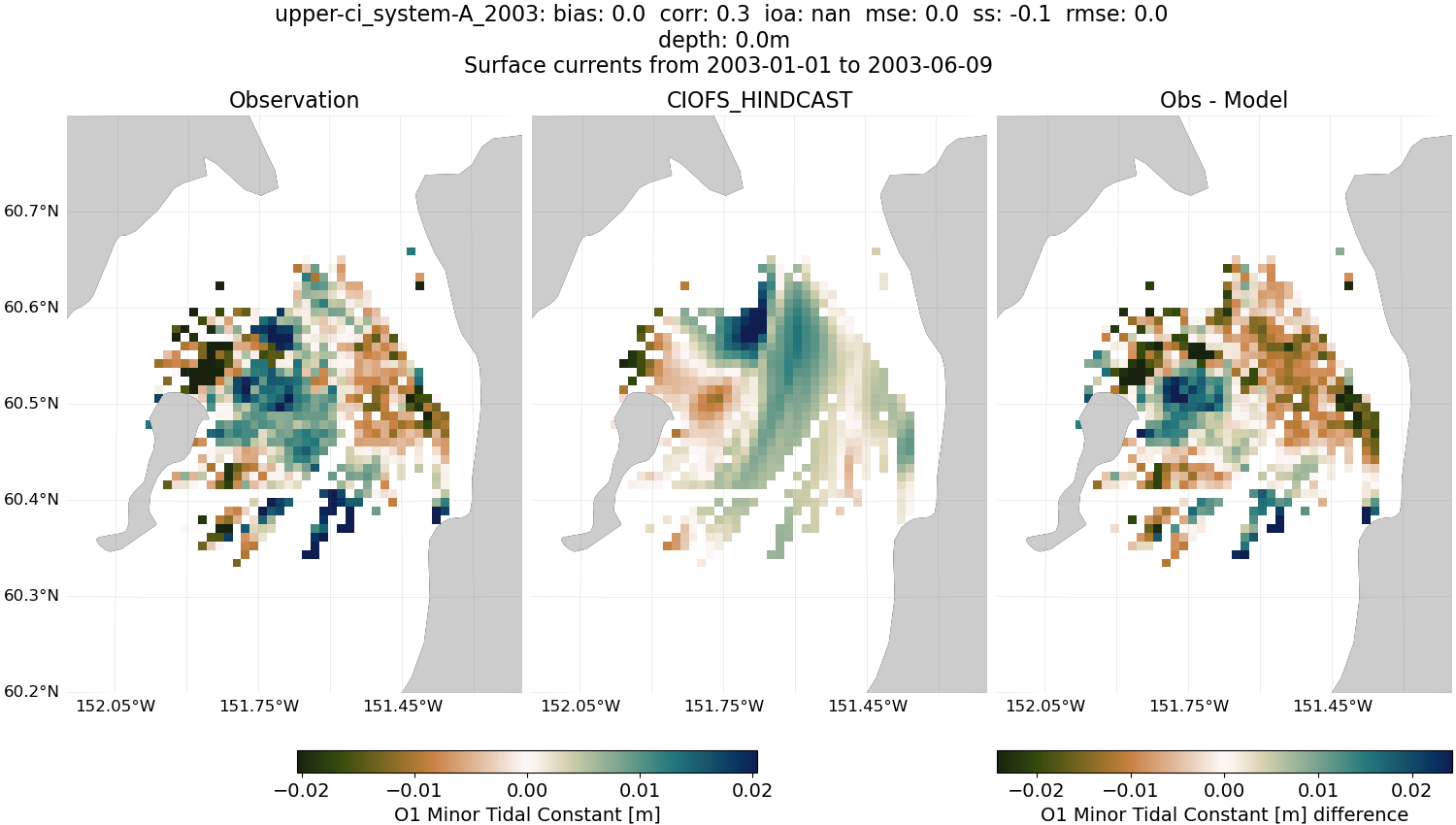

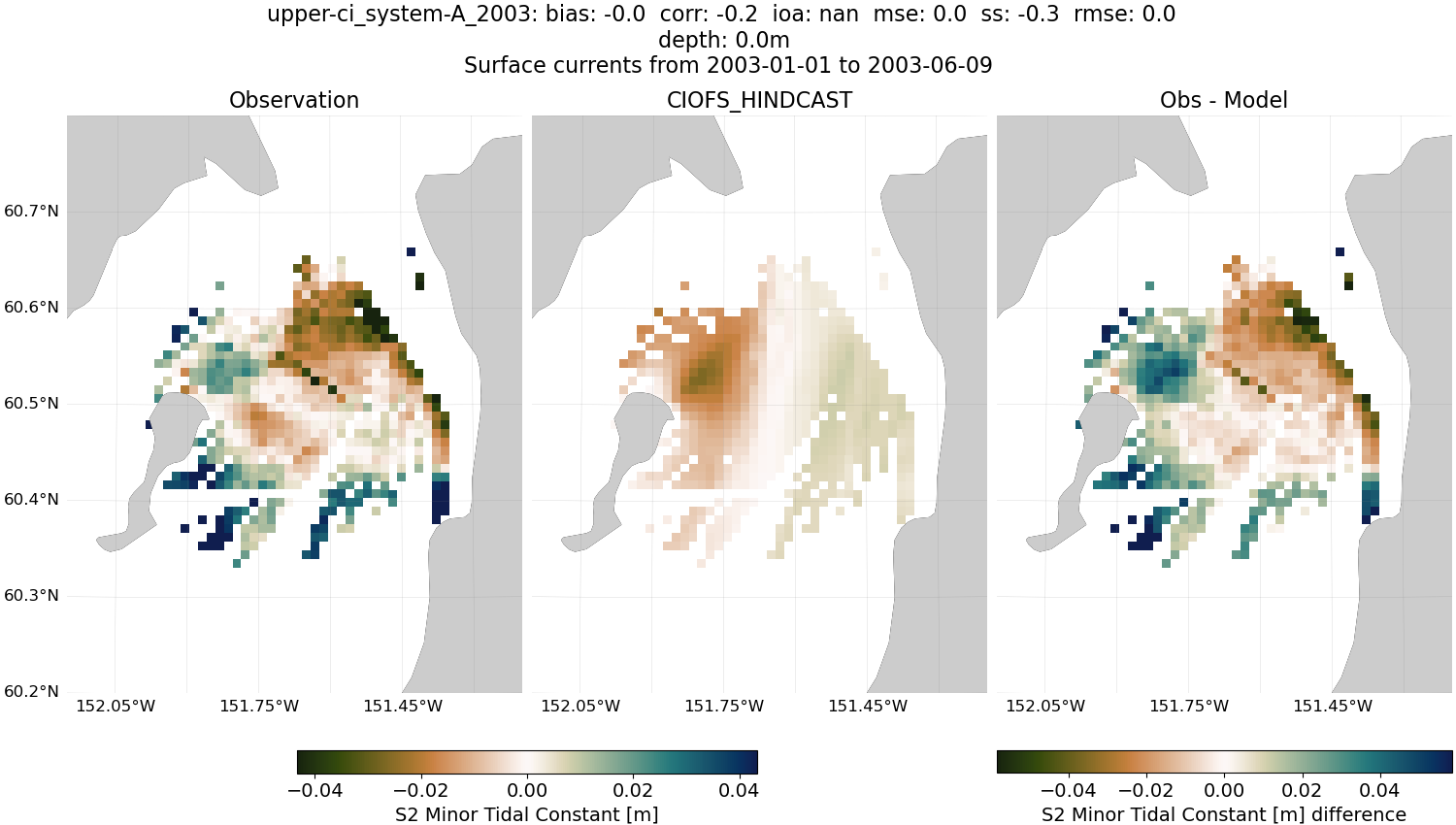

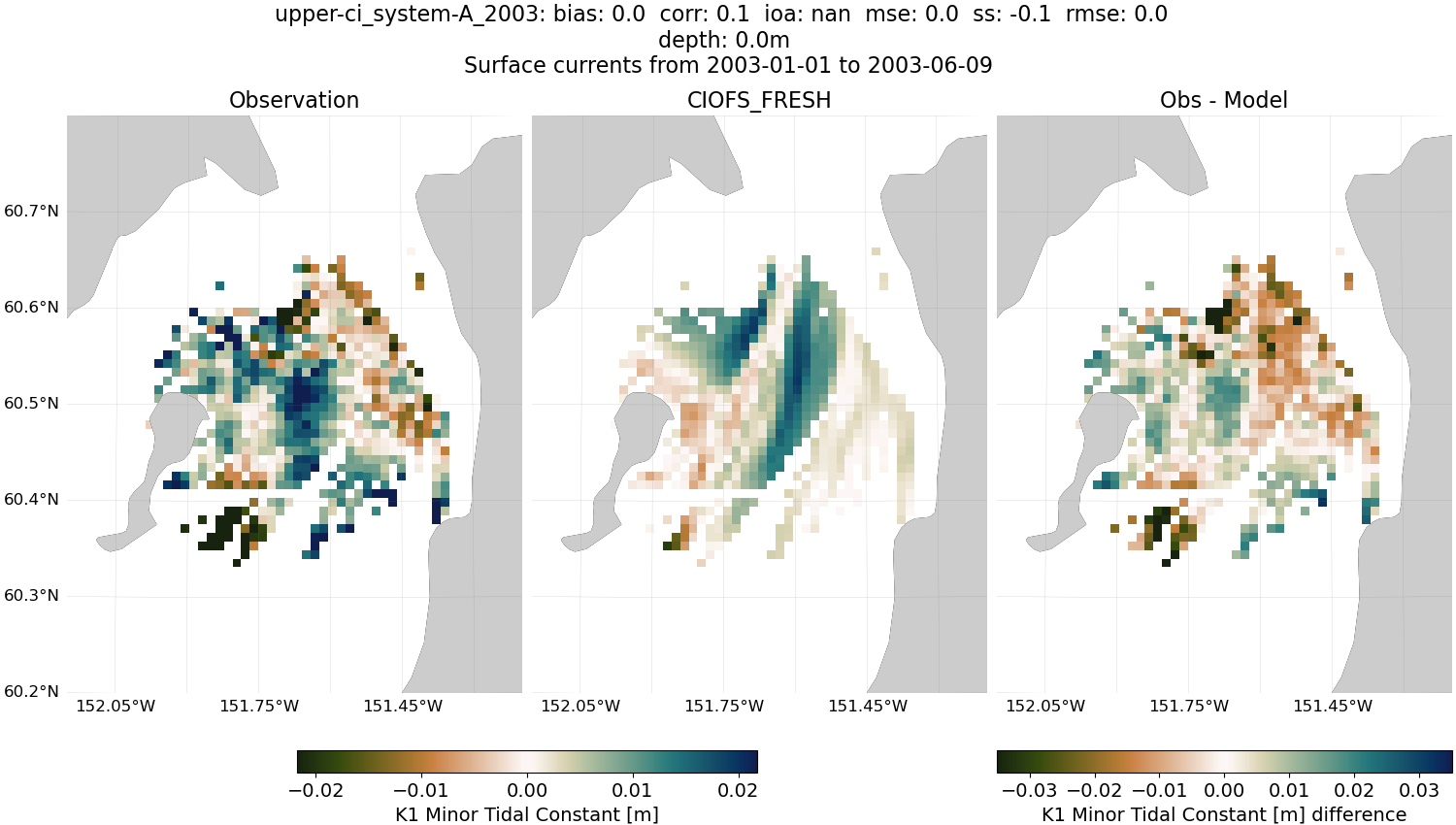

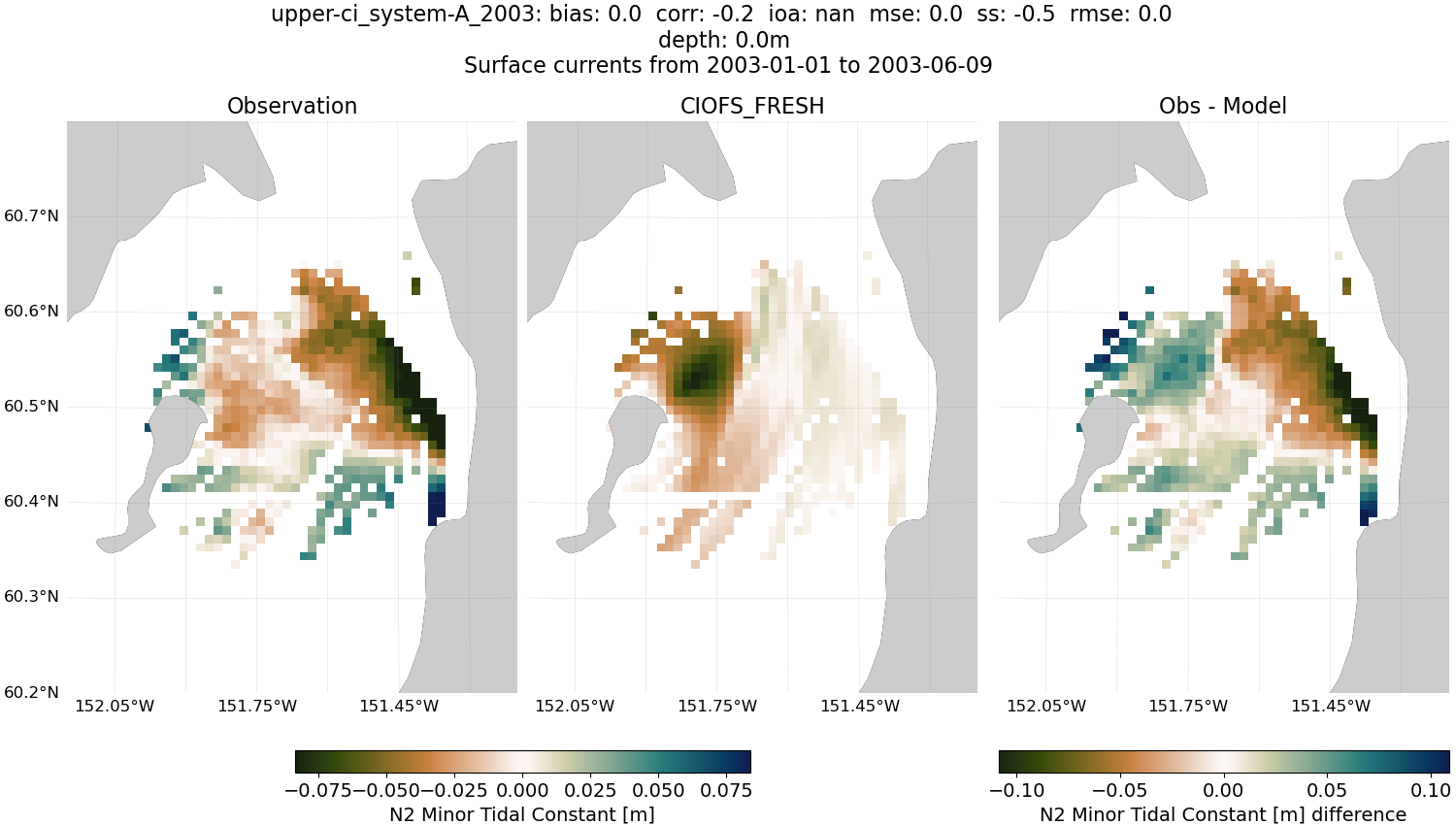

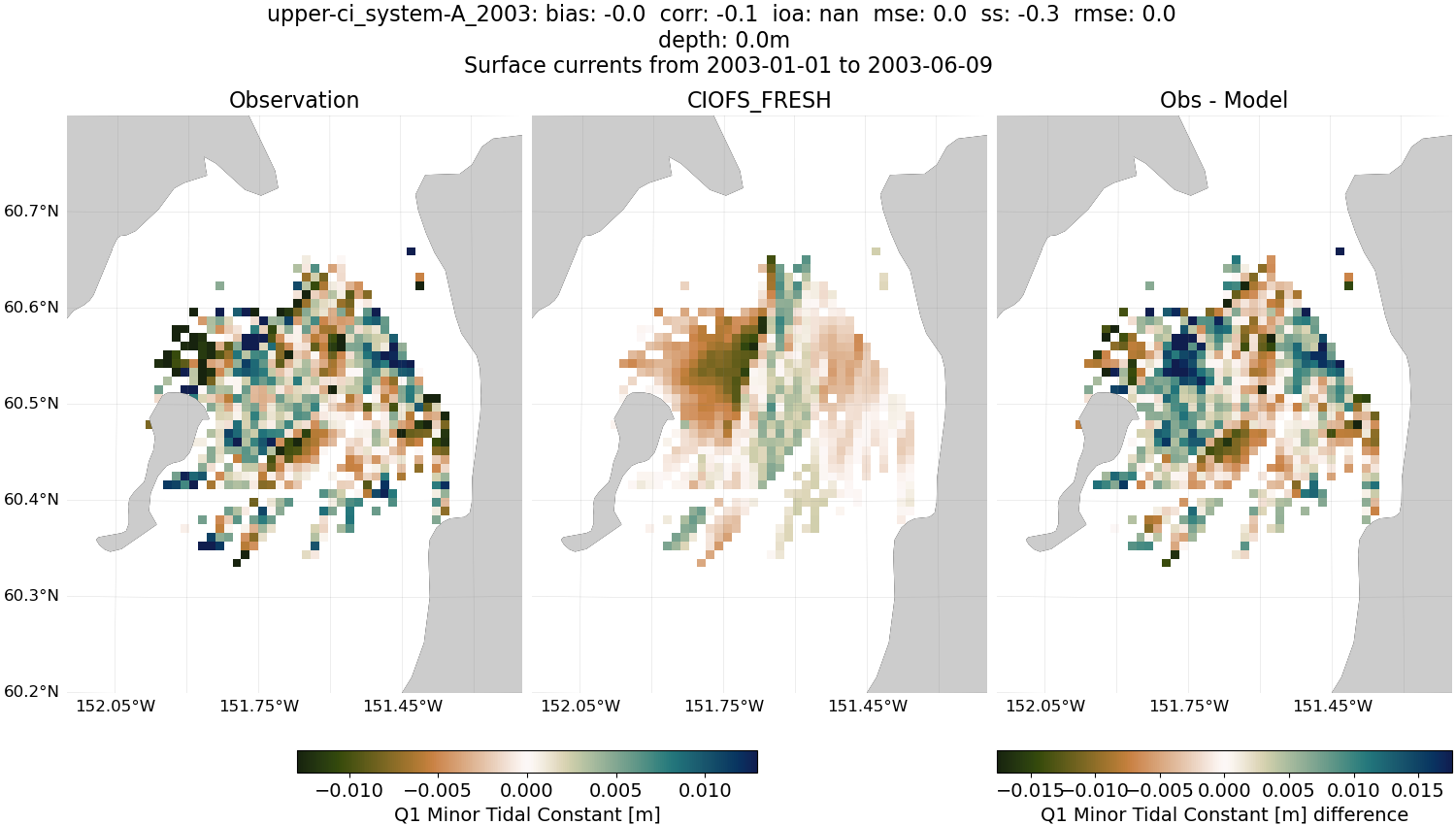

Minor Amplitude

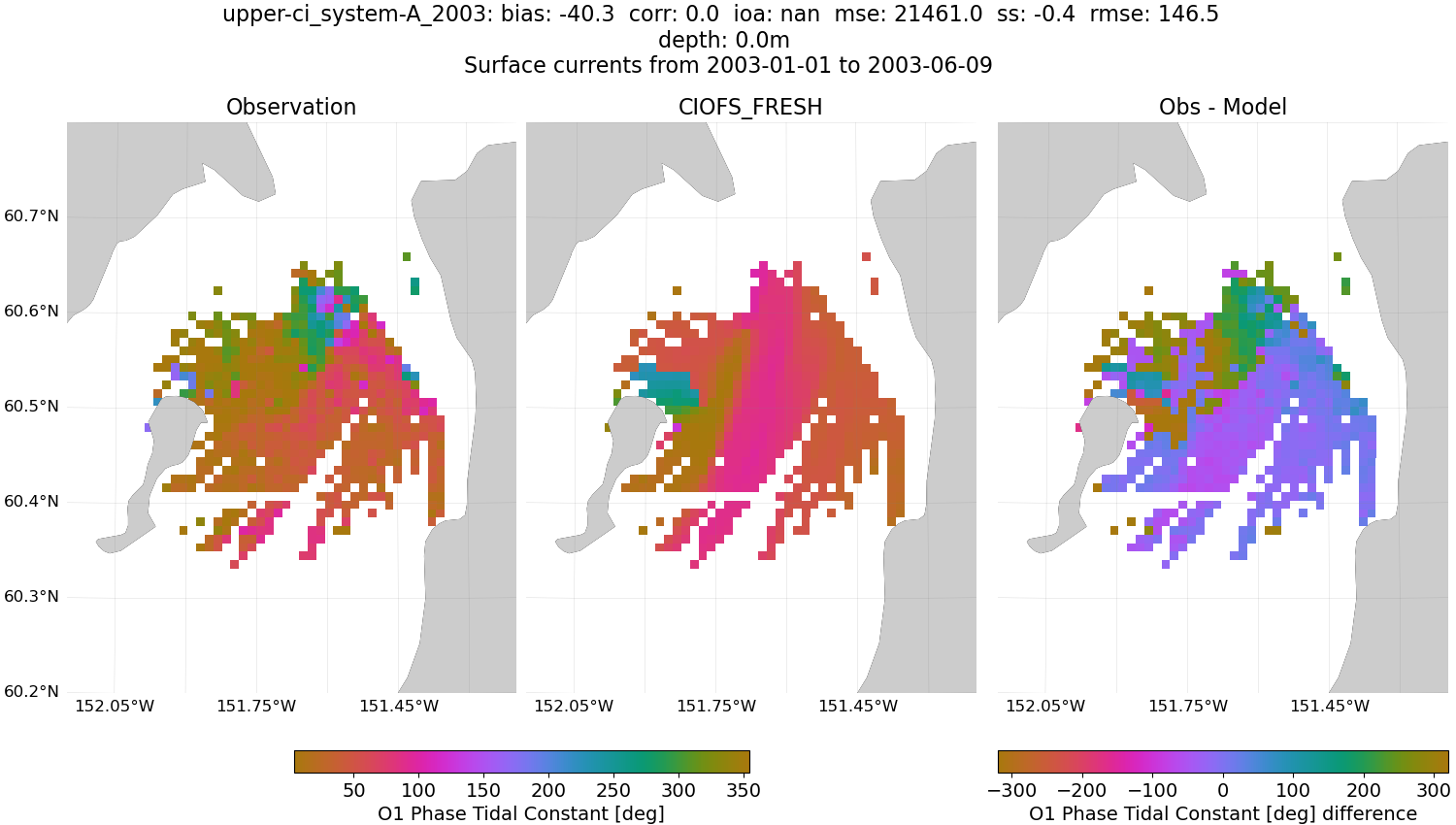

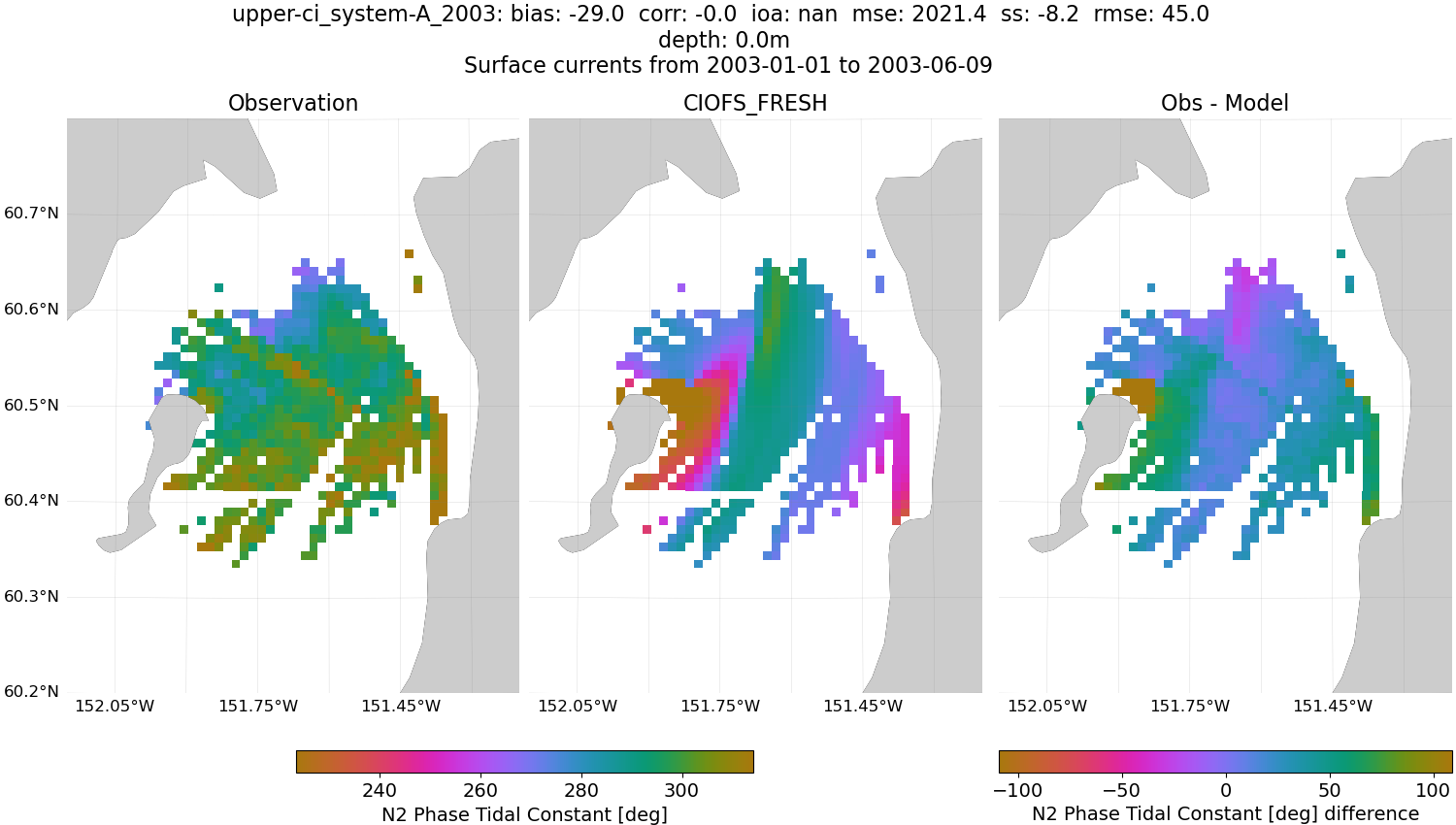

Phase

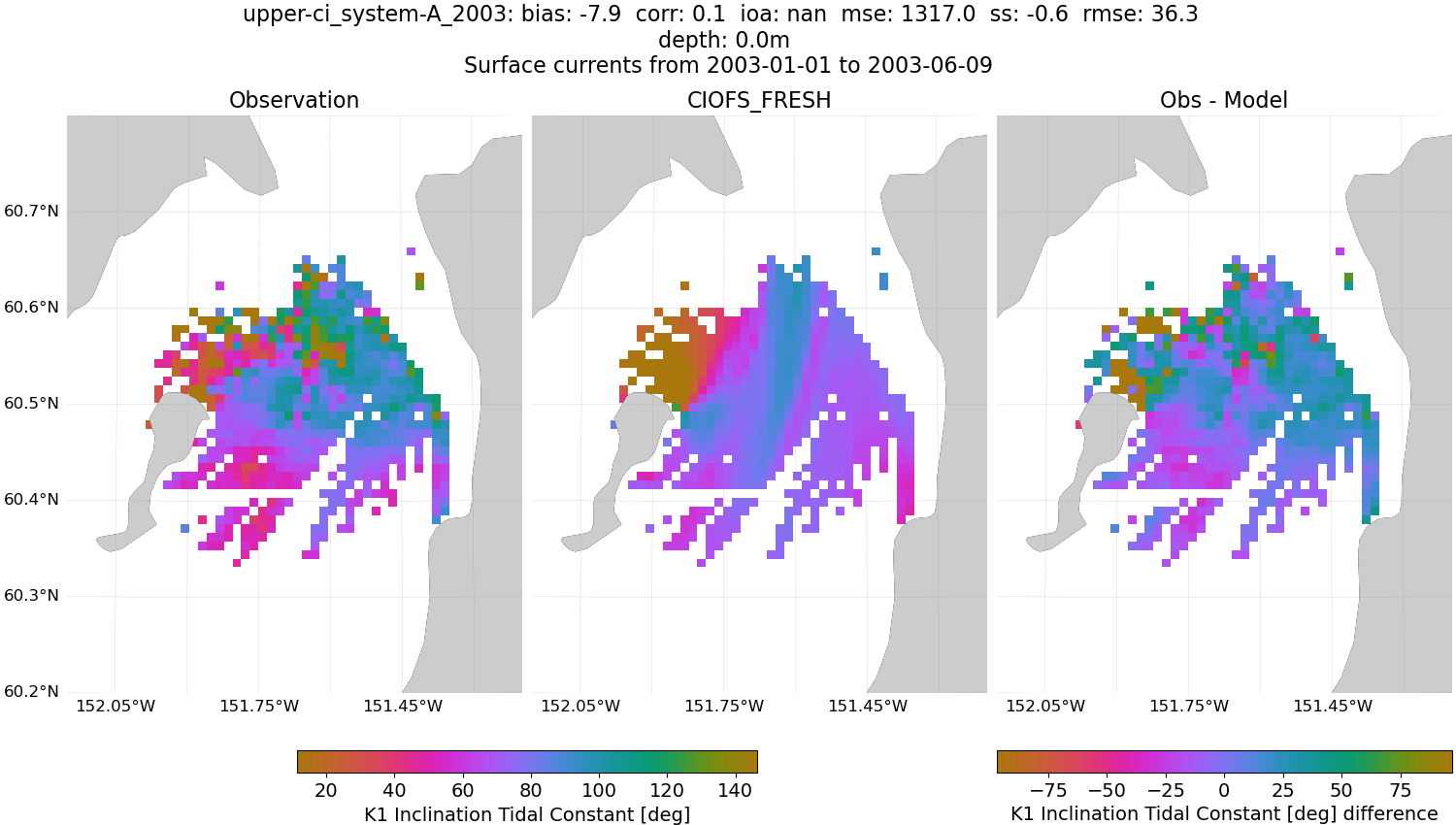

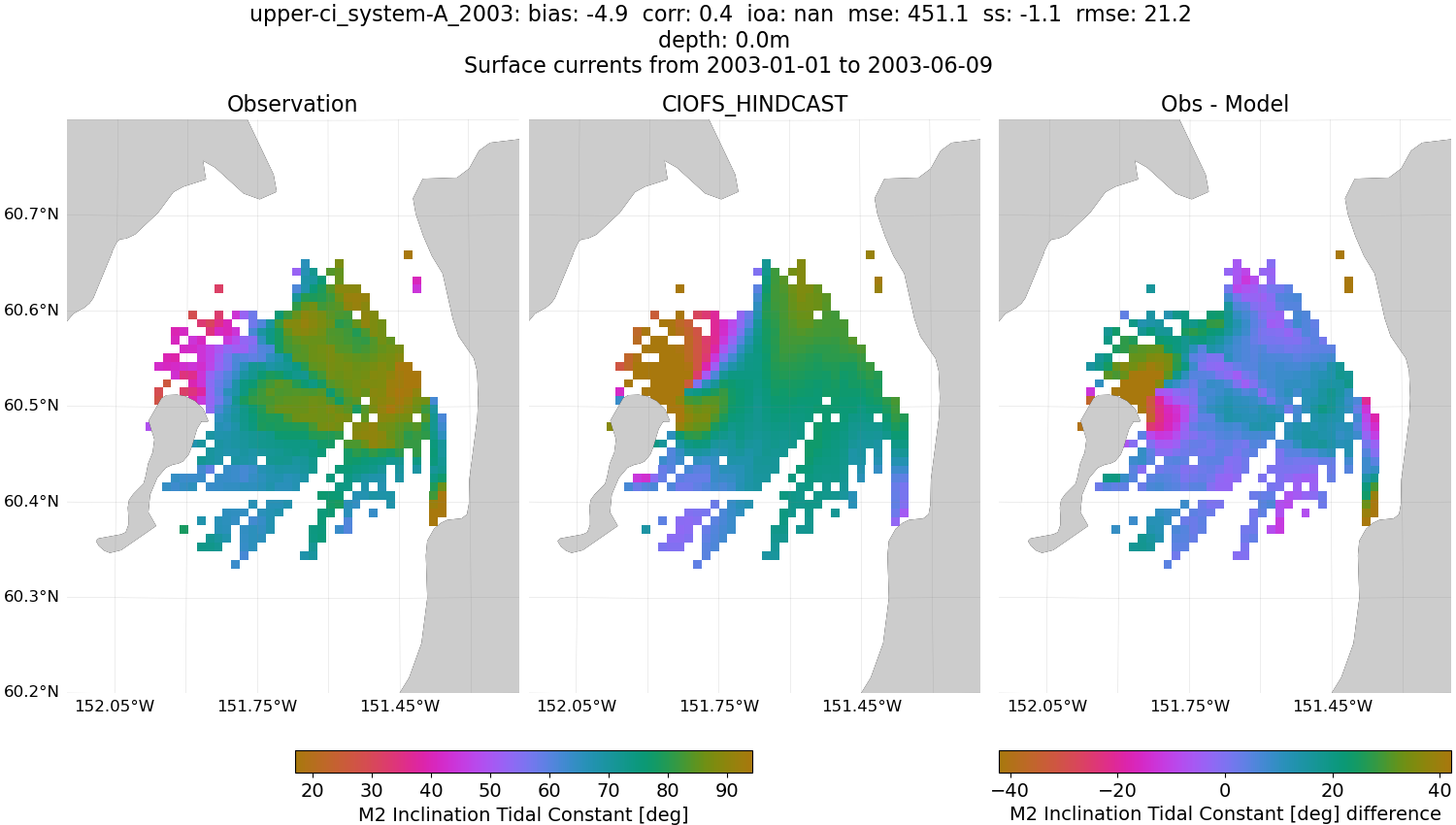

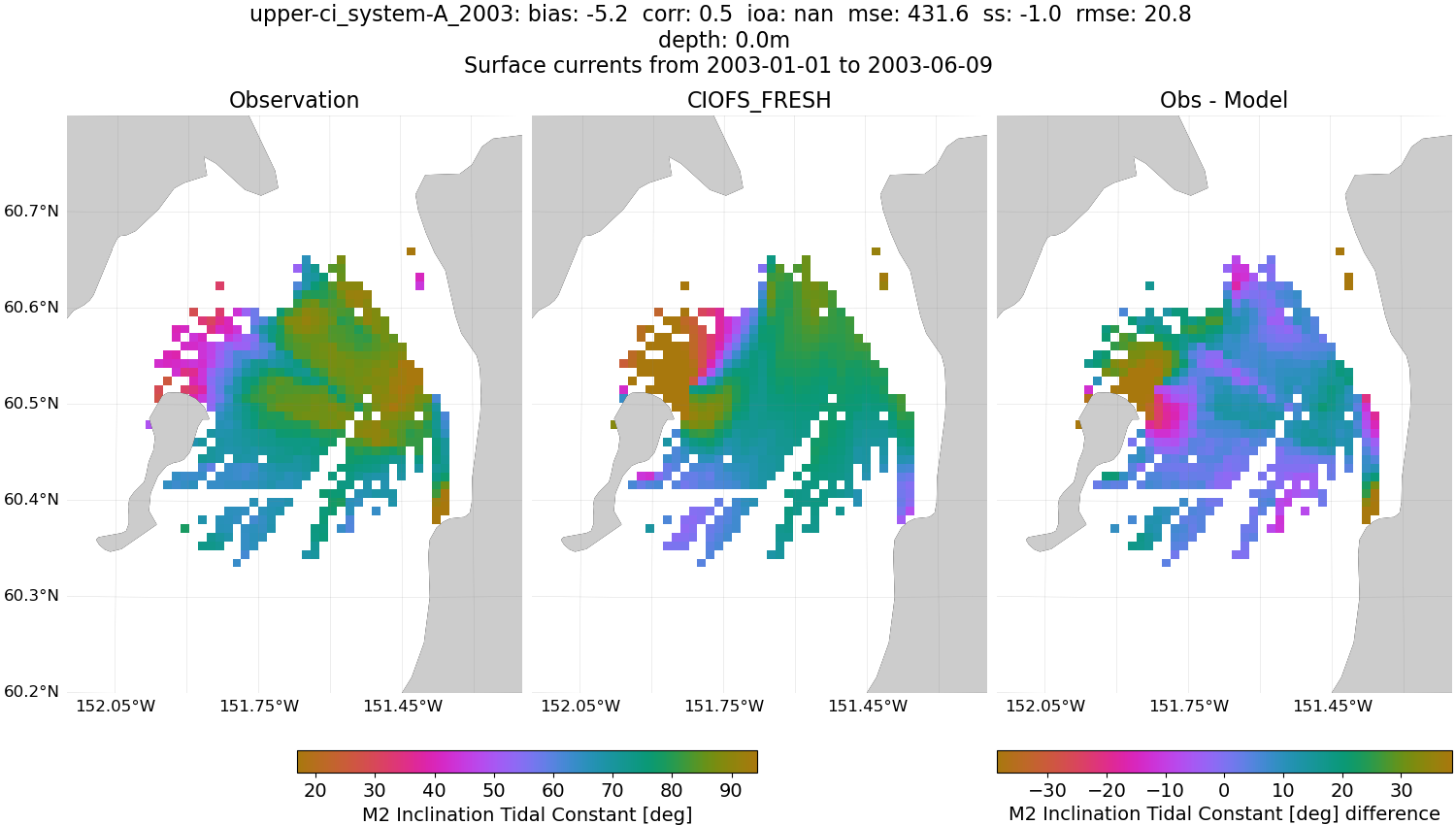

Inclination
