Overview of Drifter Data

Overview of Drifter Data#

This page summarizes skill scores comparing simulated particles in the ocean models with in situ drifters. See details describing drifter simulations and metrics here.

The area-based skill score distinguishes between models much more than the separate distance skill score. For the area-based skill score, results show that model skill is similar for CIOFS hindcast and CIOFS fresh below the influence of freshwater (15m and 40m depth) but improved in CIOFS fresh above that (1m, 5m, 7.5m).

100MB zipfile of plots

Map of Drifters#

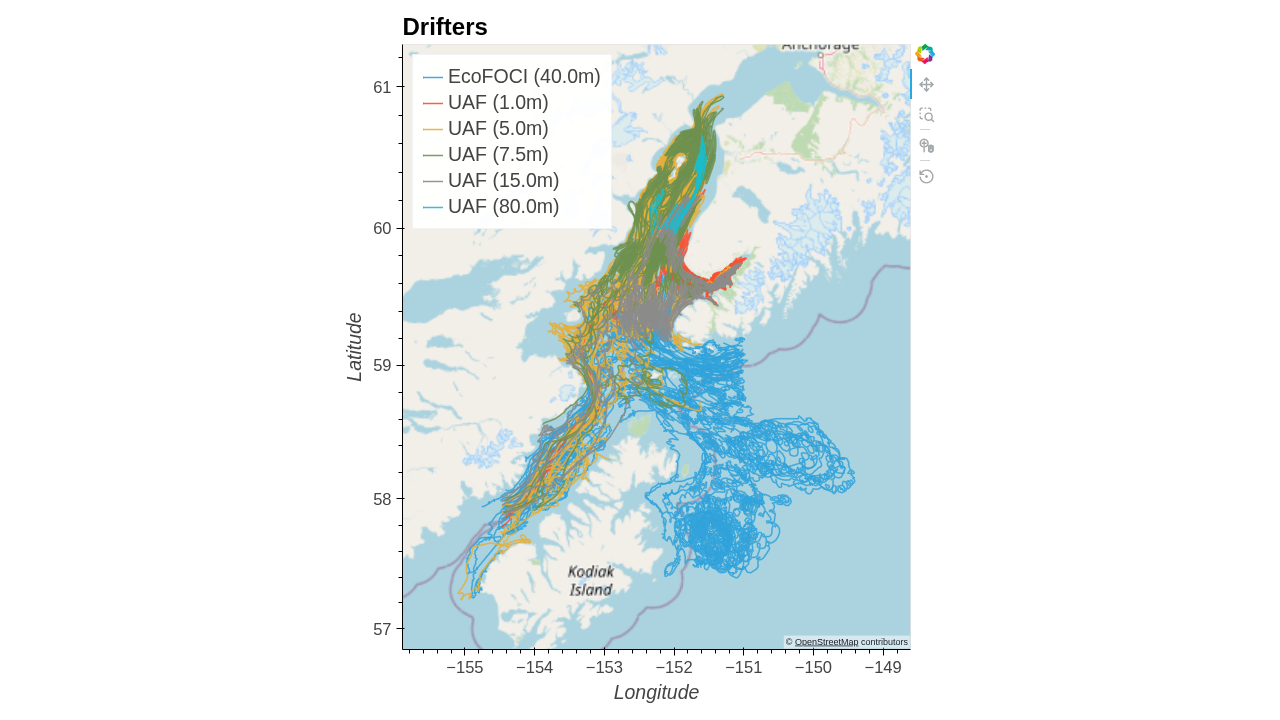

Fig. 26 All drifter deployments, by project. Click on a legend entry to toggle the transparency. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_map.png — Fig. 27 All drifter deployments, by project. (PNG screenshot, available for PDF and for saving image.)#

Results#

Skill Score: Area-Based Length Scale#

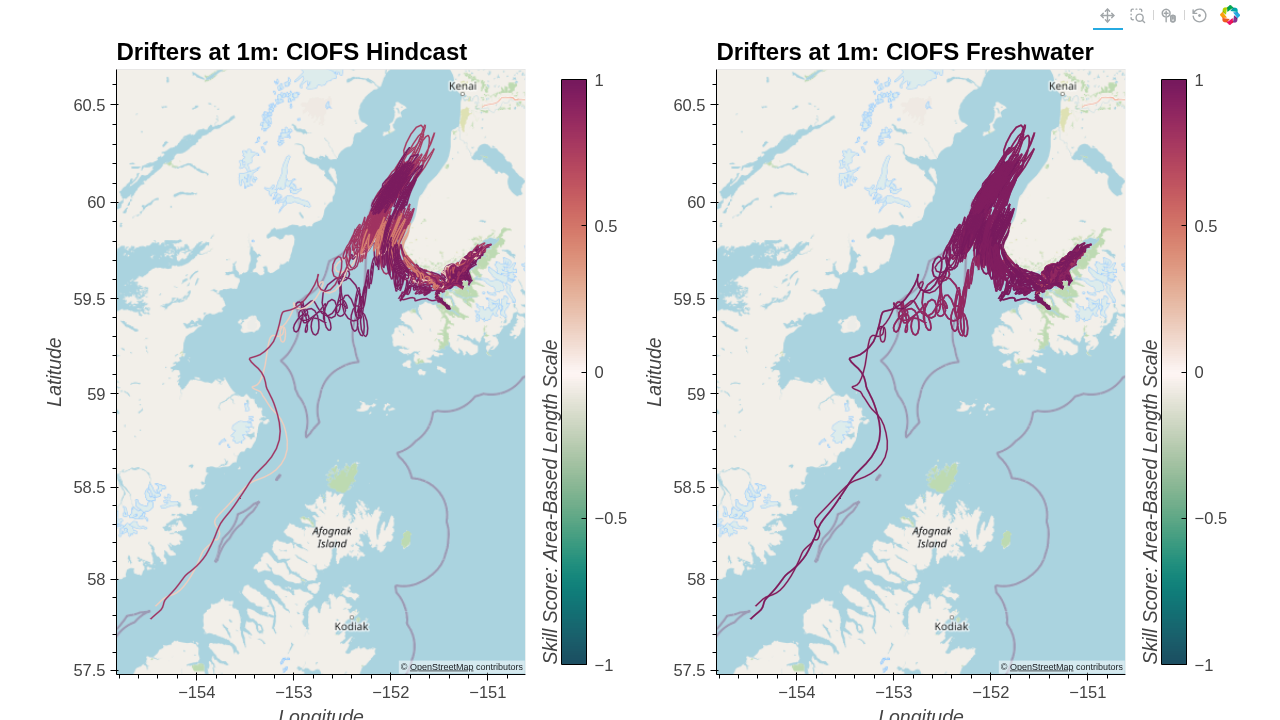

Fig. 28 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 1m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss1_1m.png — Fig. 29 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 1m depth. (PNG screenshot, available for PDF and for saving image.)#

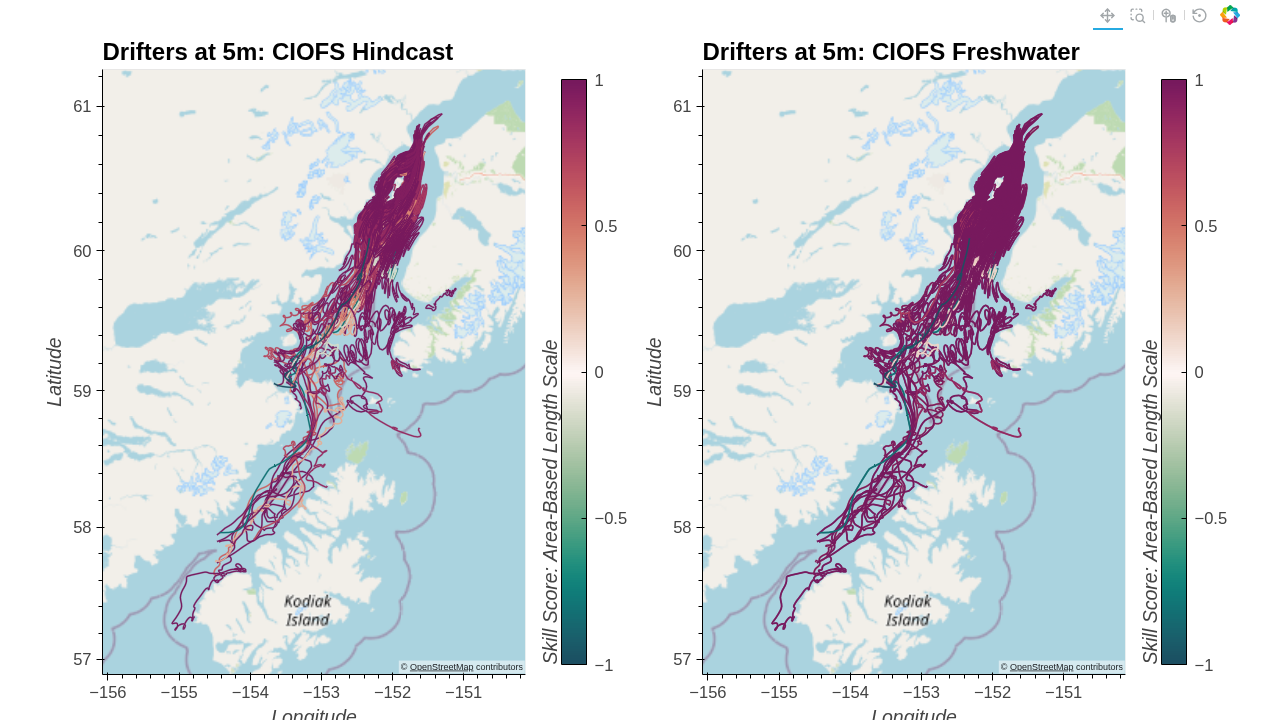

Fig. 30 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 5m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss1_5m.png — Fig. 31 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 5m depth. (PNG screenshot, available for PDF and for saving image.)#

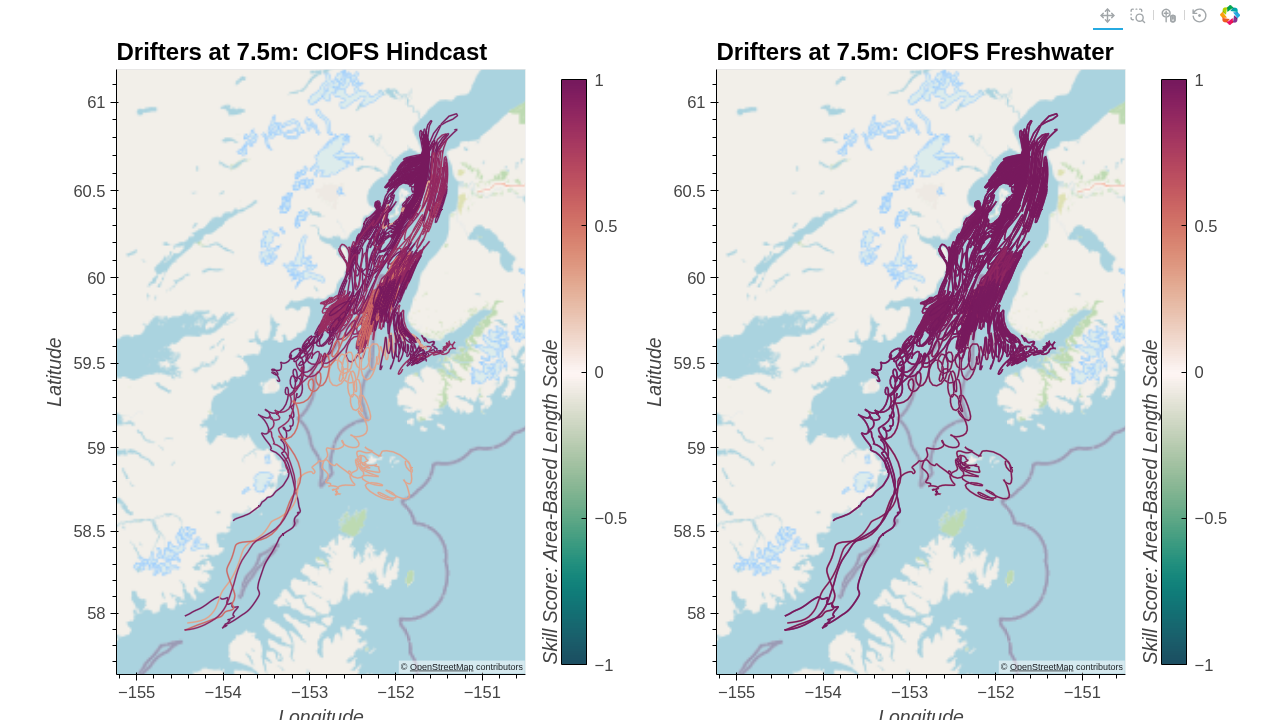

Fig. 32 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 7.5m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss1_7.5m.png — Fig. 33 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 7.5m depth. (PNG screenshot, available for PDF and for saving image.)#

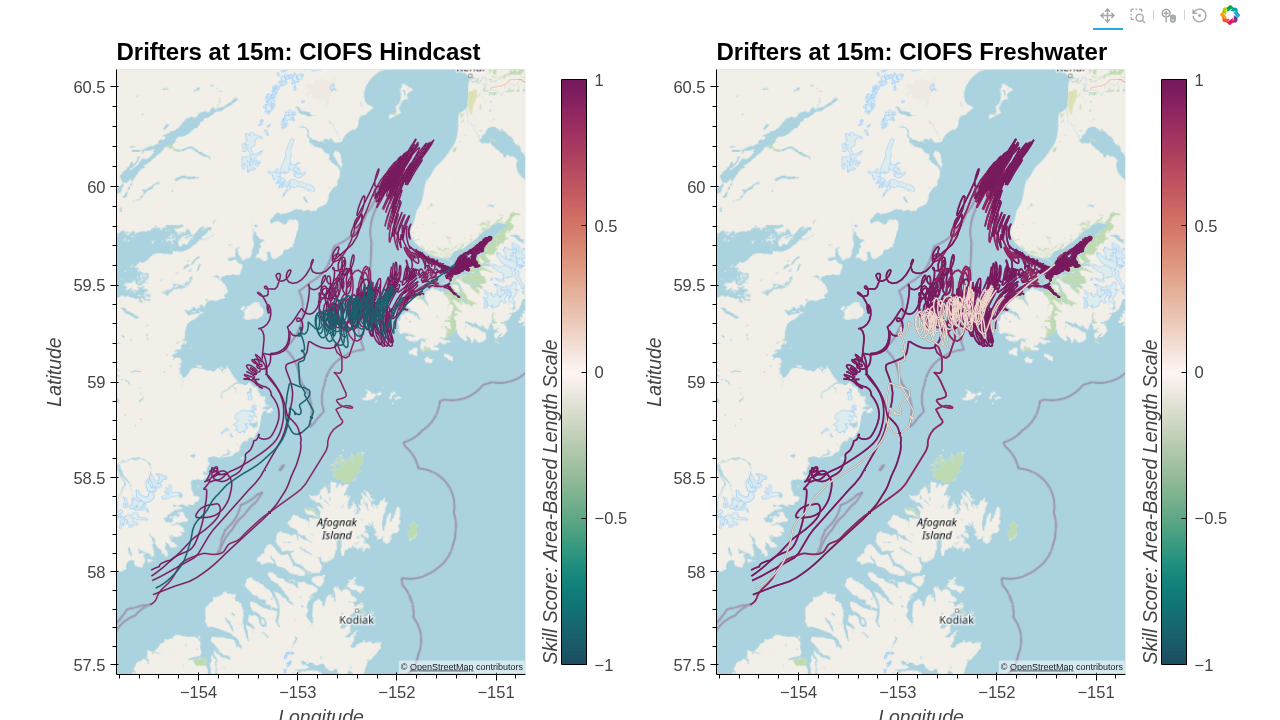

Fig. 34 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 15m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss1_15m.png — Fig. 35 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 15m depth. (PNG screenshot, available for PDF and for saving image.)#

Fig. 36 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 40m depth. (HTML plot, won’t show up correctly in PDF.)#

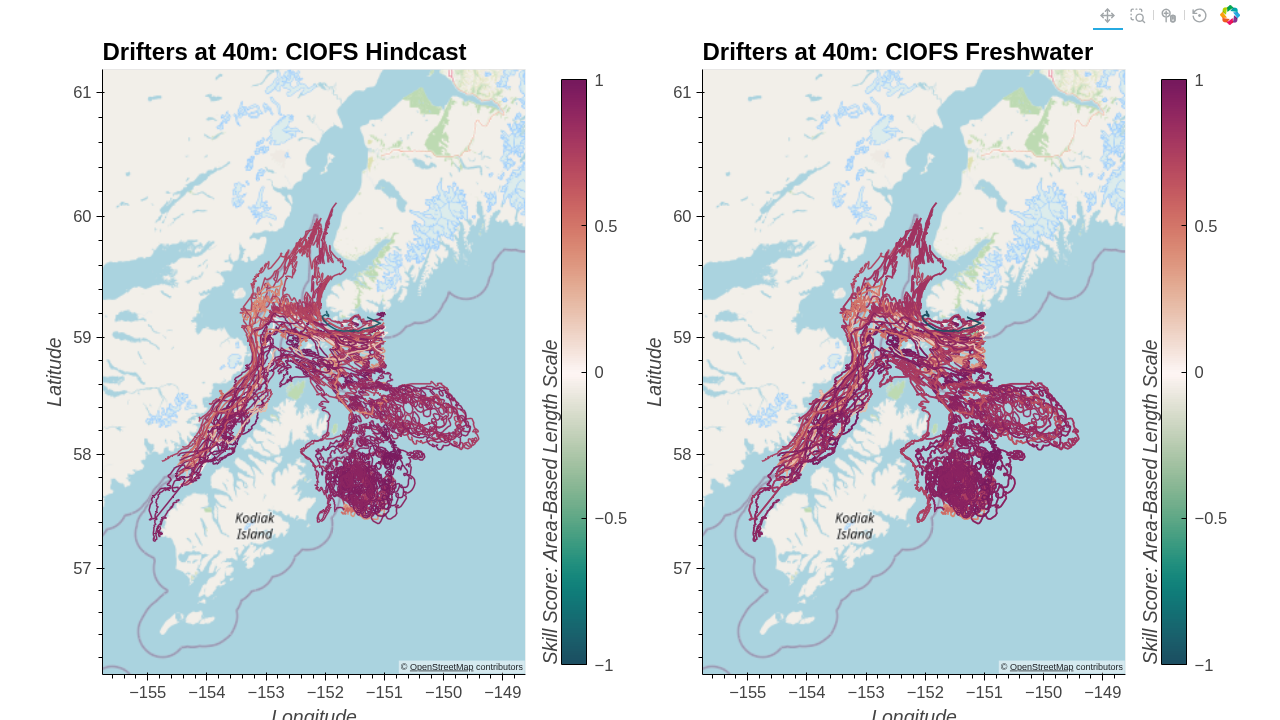

../../../_images/drifters_ss1_40m.png — Fig. 37 Area-based skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 40m depth. (PNG screenshot, available for PDF and for saving image.)#

Skill Score: Separation Distance, Mean#

Fig. 38 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 1m depth. (HTML plot, won’t show up correctly in PDF.)#

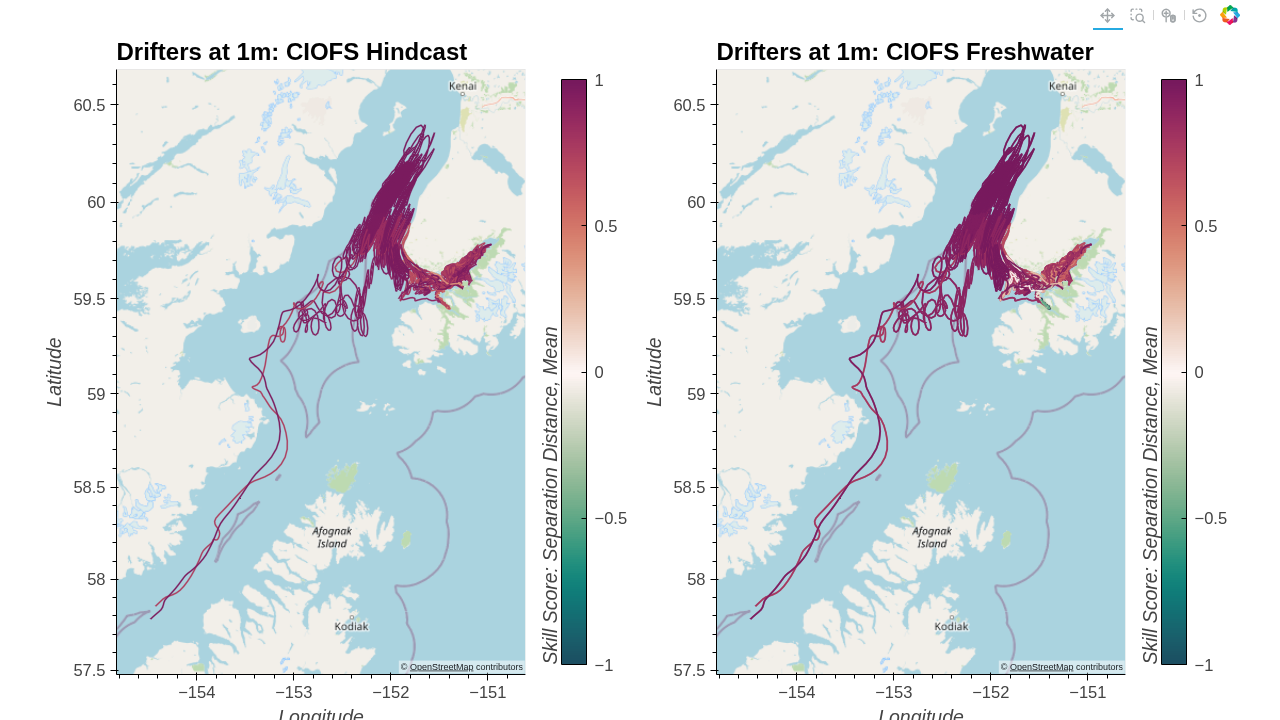

../../../_images/drifters_ss3_mean_1m.png — Fig. 39 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 1m depth. (PNG screenshot, available for PDF and for saving image.)#

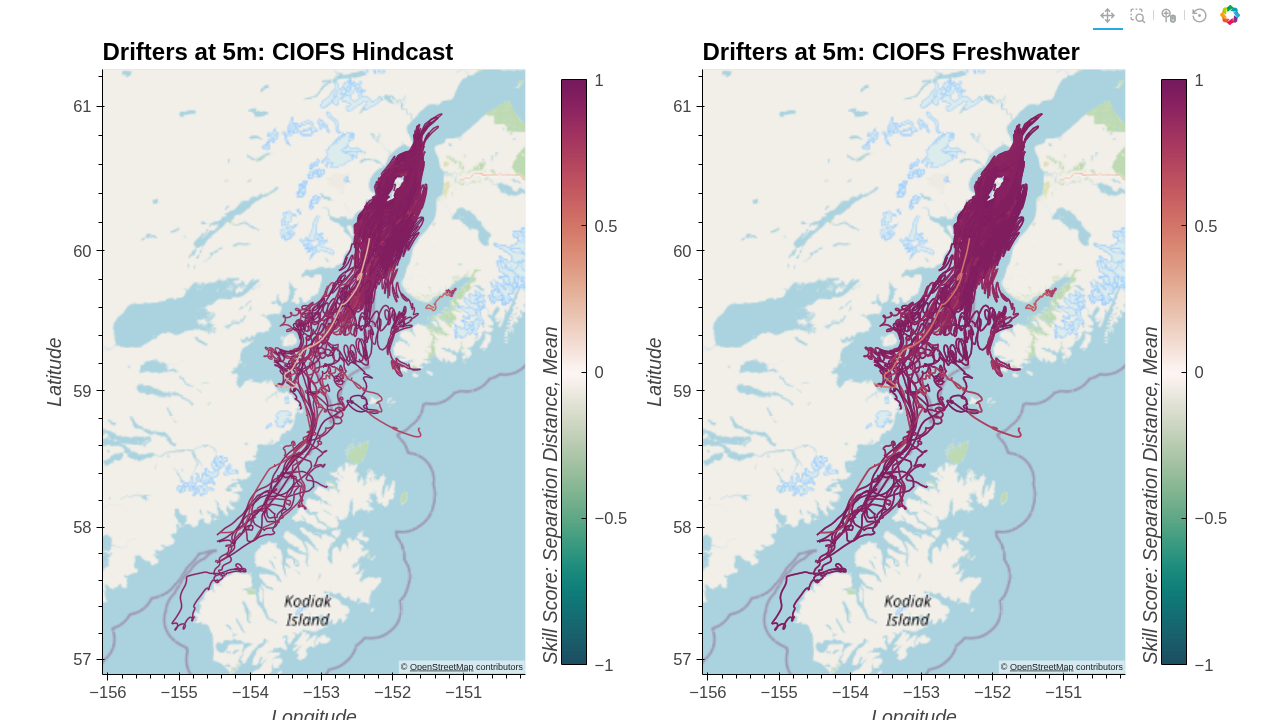

Fig. 40 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 5m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss3_mean_5m.png — Fig. 41 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 5m depth. (PNG screenshot, available for PDF and for saving image.)#

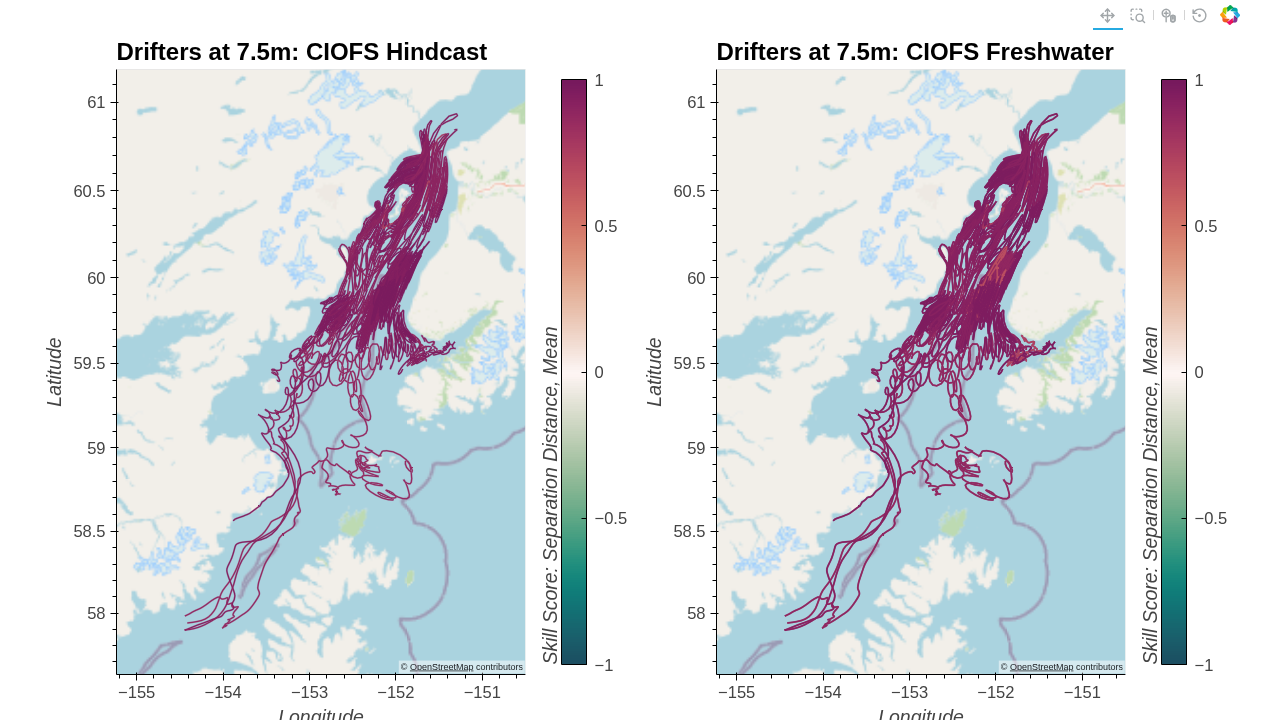

Fig. 42 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 7.5m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss3_mean_7.5m.png — Fig. 43 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 7.5m depth. (PNG screenshot, available for PDF and for saving image.)#

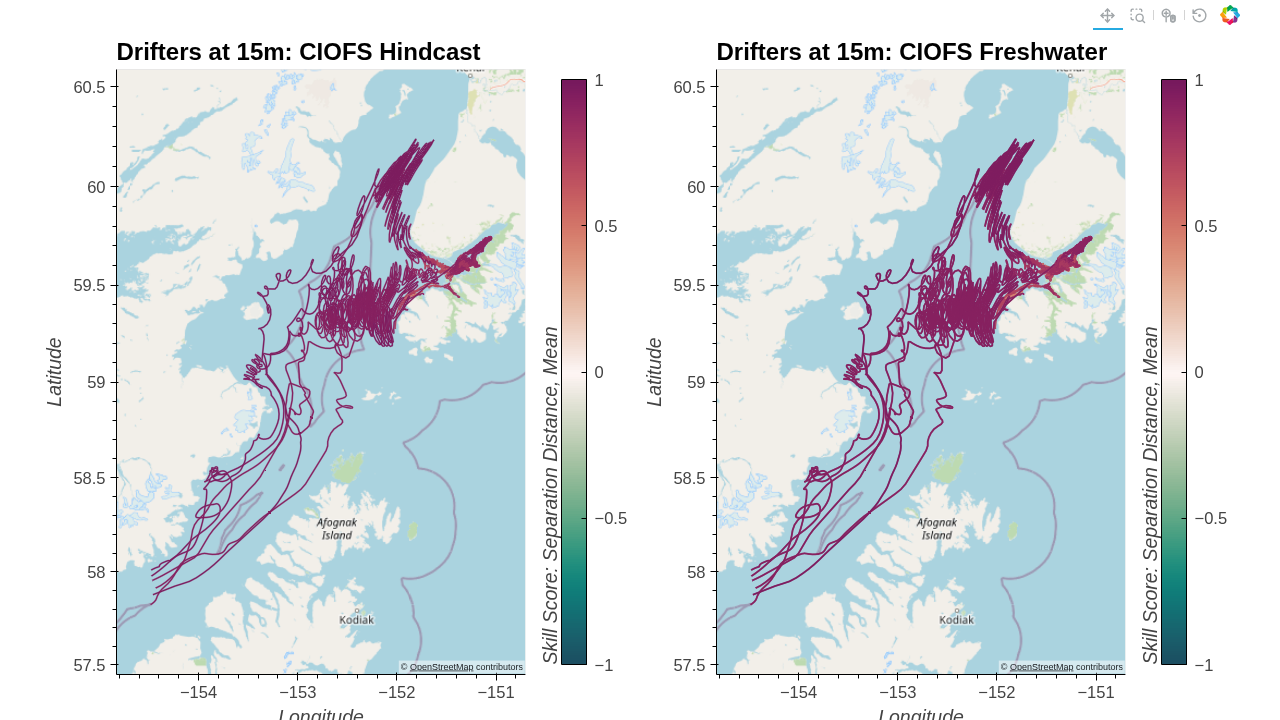

Fig. 44 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 15m depth. (HTML plot, won’t show up correctly in PDF.)#

../../../_images/drifters_ss3_mean_15m.png — Fig. 45 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 15m depth. (PNG screenshot, available for PDF and for saving image.)#

Fig. 46 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 40m depth. (HTML plot, won’t show up correctly in PDF.)#

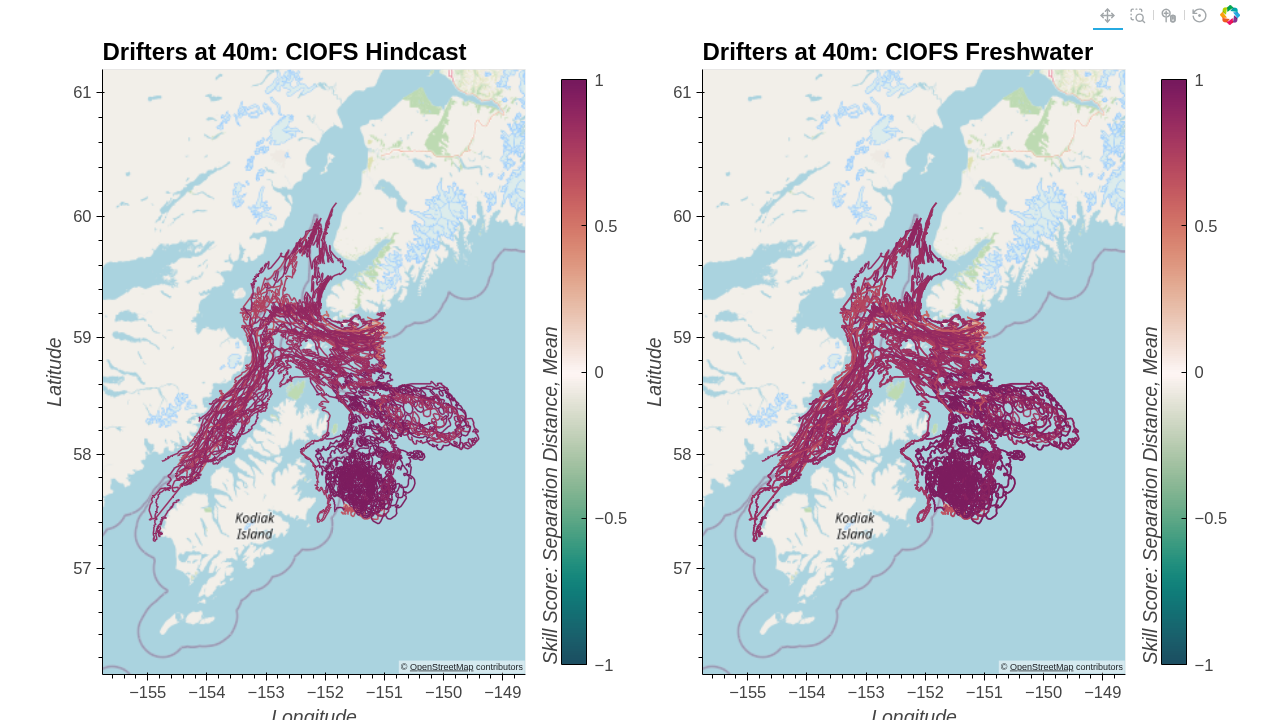

../../../_images/drifters_ss3_mean_40m.png — Fig. 47 Separation-distance skill scores for CIOFS Hindcast (left) and CIOFS Freshwater (right) with drifters at 40m depth. (PNG screenshot, available for PDF and for saving image.)#
